1 Inch Sprinkler Fire Fighting Flexible Hose

Quantity:
  • Xiamen, China
  • 100000PCS/Week
  • L/C, T/T, D/P, Western Union, Paypal
  • 610mm-1820mm
  • 24" 28" 40" 48" 60" 67"
  • 1" NPT
  • 1/2" 3/4"
  • Braided/Unbraided
  • Stainless Steel 340
  • Inc-Plated Steel
  • 175 Psi
  • 225 Fahrenheit Degree
  • SINCO
  • Standard Export Package
  • 700mm, 1000mm, 1220mm, 1520mm, 1700mm, 1820mm
  • Fujian
  • 8424899990
  • Upright/Pendent
  • Closed
  • Wet Alarm Valve
  • Can′t Automatically Opened and Closed
  • Wet Fire Sprinkler System
  • Seat Type
1 Inch Sprinkler Fire Fighting Flexible Hose

Advantage
1.Fast and easy installation (no pipe cutting, measuring, threading, or welding)
2.Save time!
3.Less risk of water leakage
4.No corrosion - 100% stainless steel
5.Can be installed without machines and power tools

Certificate
1.National Fire Protection Association (NFPA)
2.American Society for Testing and Methods (ASTM)
3.Factory Mutual (FM), FM Class No, 1637:
4.Underwriter's Laboratories, Inc. (UL), UL 2443:

Specification
Lengths 24" 28" 40" 48" 60" 67"
Outlet Reducers 1/2" 3/4"
Types Braided / Unbraided
Hose/ Braid Stainless Steel 304
Nut & Nipple Zinc-Plated Steel
Sealing Gasket / Isolation Ring EPDM / NYLON

Technical Date
Max. Temp. 225ºF
Operating Pressure 175 psi
Connections Inlet 1" NPT
Outlet 1/2" 3/4"
Min. Bend Radius 4"(UL) / 8"(FM)
K-Factors 1/2" Outlet 5.6
3/4" Outlet 8.0

Photoes

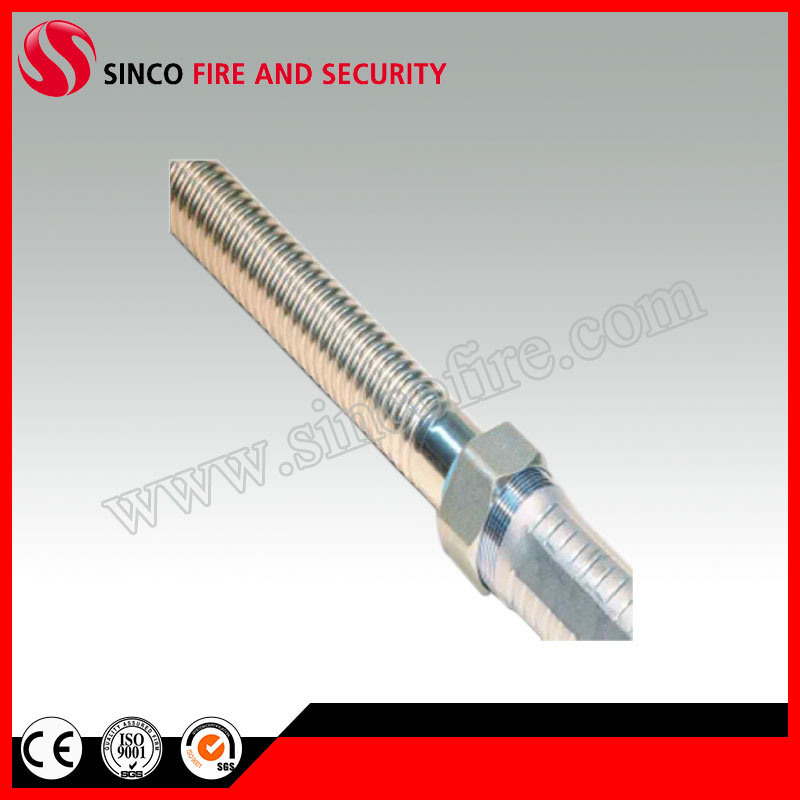

1 Inch Sprinkler Fire Fighting Flexible Hose

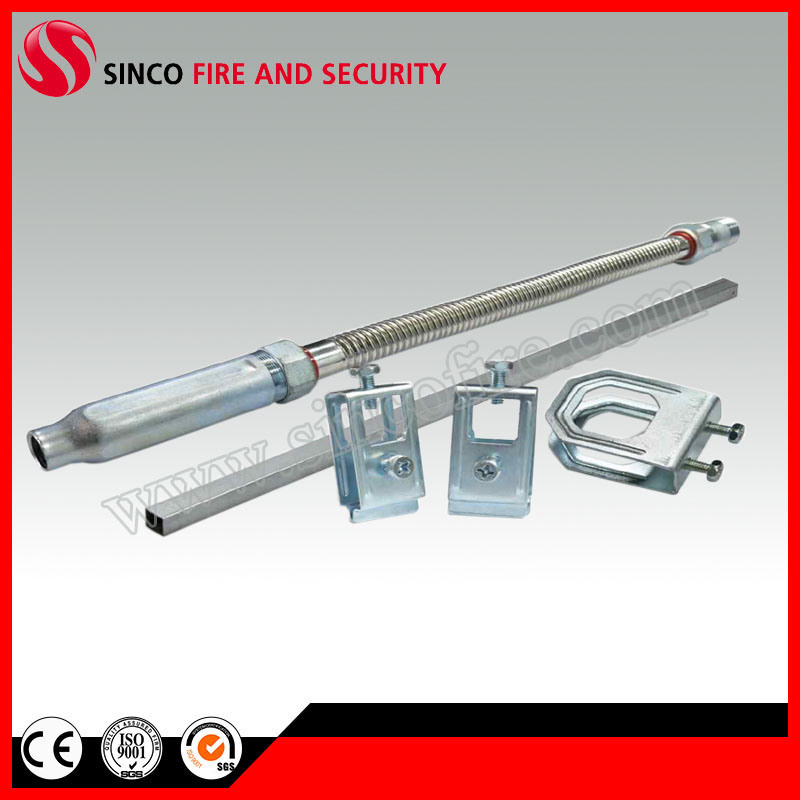

1 Inch Sprinkler Fire Fighting Flexible Hose

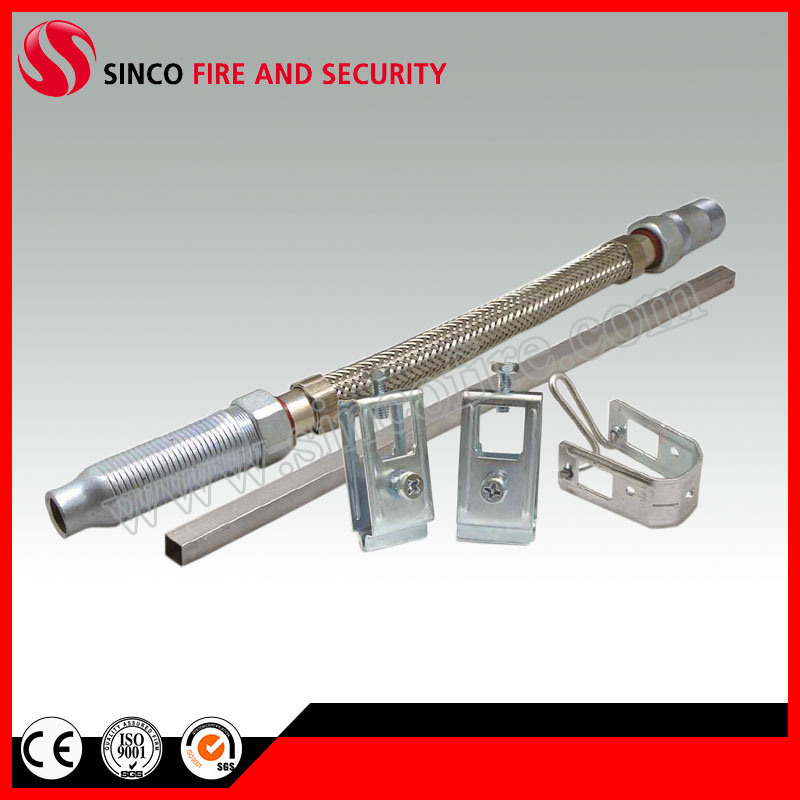

1 Inch Sprinkler Fire Fighting Flexible Hose
1 Inch Sprinkler Fire Fighting Flexible Hose
