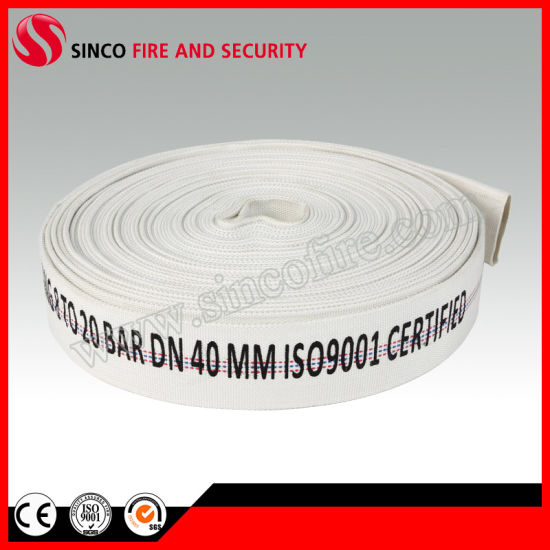

10 Bar PVC Fire Hose

Quantity:
Inquire Add to Basket

  • Xiamen, China

  • 90000meters/Day

  • L/C, T/T, D/P, Western Union, Paypal

  • 1"-10"

  • With Lining

  • Twill/Plain Weaving

  • Plug-in

  • Customized

  • Fire Hose Couplings / Nozzles

  • SINCO/OEM

  • Cartons or Woven Bags

  • 1"-10"

  • Fujian

  • 5909000000

  • PVC/Rubber/PU/EPDM

  • 2 Water Segregator

  • Hose Coupling

  • 25m/20m/30m/Customized

  • 0.8MPa-2.5MPa(8 Bar-25 Bar)

  • 25mm-250mm(1 Inch-10 Inch)

10 bar pvc fire hose

10 Bar PVC Fire Hose
Fire Hose is mainly used in fire-fighting ,and help to delivery fire water to put out fire. it can be equipment with fire hose coupling and nozzle with fire hydrant system.

1. Fire Hose Lining: PVC/Rubber/PU/EPDM
2. Fire Hose Jacket: High Tenacity Polyester Yarn or Fiber
3. Fire Hose size: 1 Inch-10 Inch (25mm-250mm)
4. Working Pressure: 8-25 Bar
5. Bursting Pressure: 24-72 Bar
6. The length of fire hose: 10m-30m, Or Customized
7. The color of fire hose: White/Red/Customized
8. There are special adhesive ( solid or liquid)between the jacket and the hose. The fire hose is soft and highly polished, reduce the flow resistance.
9. The fire hose is thinner and softer, lighter and more convenient to use.
10.The certificate of fire hose: CCCF, ISO9001:2008, CE(EN14540)
11.The usage of fire hose: fire-fighting/ irrigation/agriculture
Size Tolerance Working Pressure Burst Pressure Length
Inch mm mm Bar Bar M/FEET
1" 25 1.5 8/10/13/16/20 24/30/39/48/60

10/33
15/50
20/66
25/83
30/100
1.5" 40 1.5 6/8/10/13/16/20 18/24/30/39/48/60
2" 50 2 6/8/10/13/16/20 18/24/30/39/48/60
2.5" 65 2.3 6/8/10/13/16/20 18/24/30/39/48/60
3" 80 2.3 6/8/10/13/16/20 18/24/30/39/48/60
4" 100 2.3 6/8/10/13/16 18/24/30/39/48
5" 125 2.5 6/8/10/13 18/24/30/39
6" 150 2.5 6/8/10 18/24/30
8" 200 2.5 6/8 18/24
Photoes

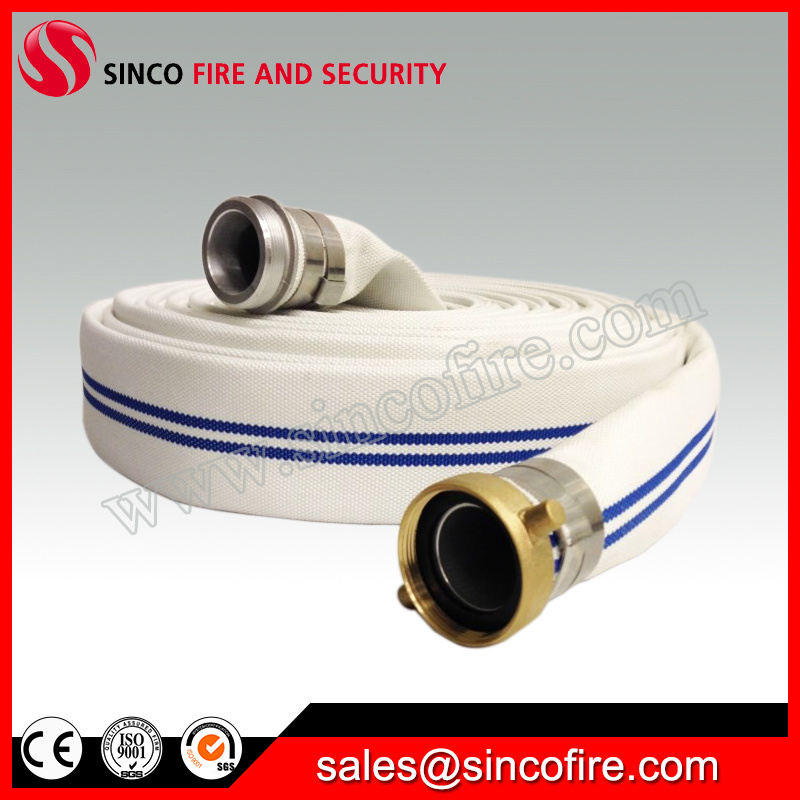

10 Bar PVC Fire Hose

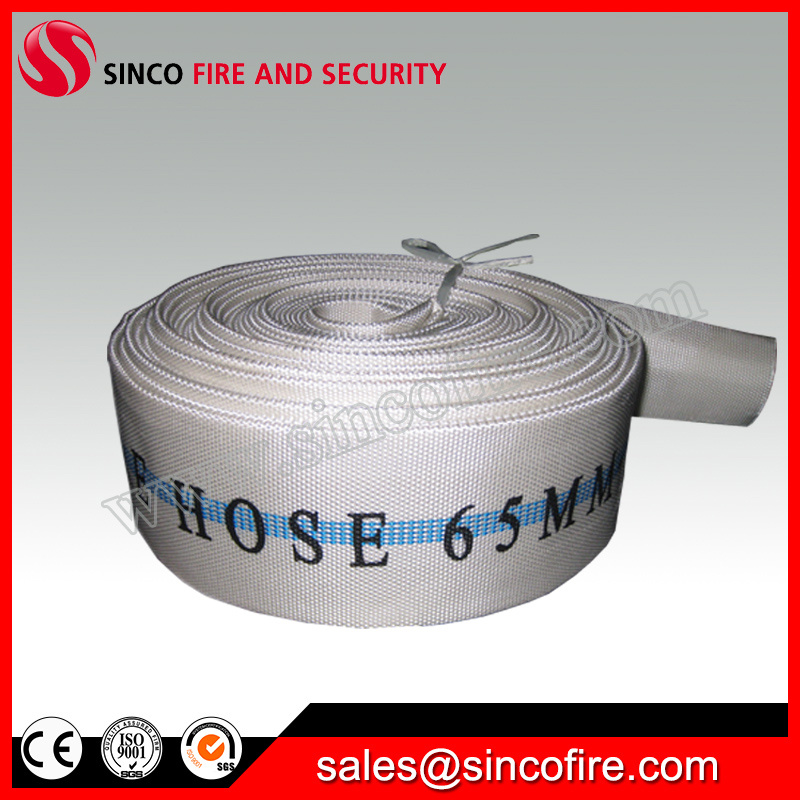

10 Bar PVC Fire Hose

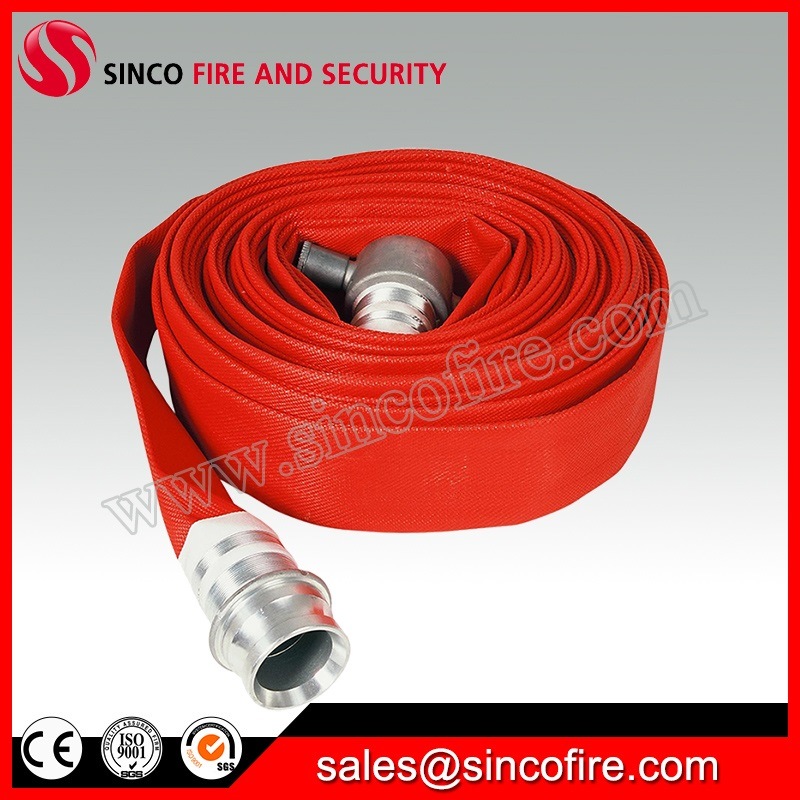

10 Bar PVC Fire Hose

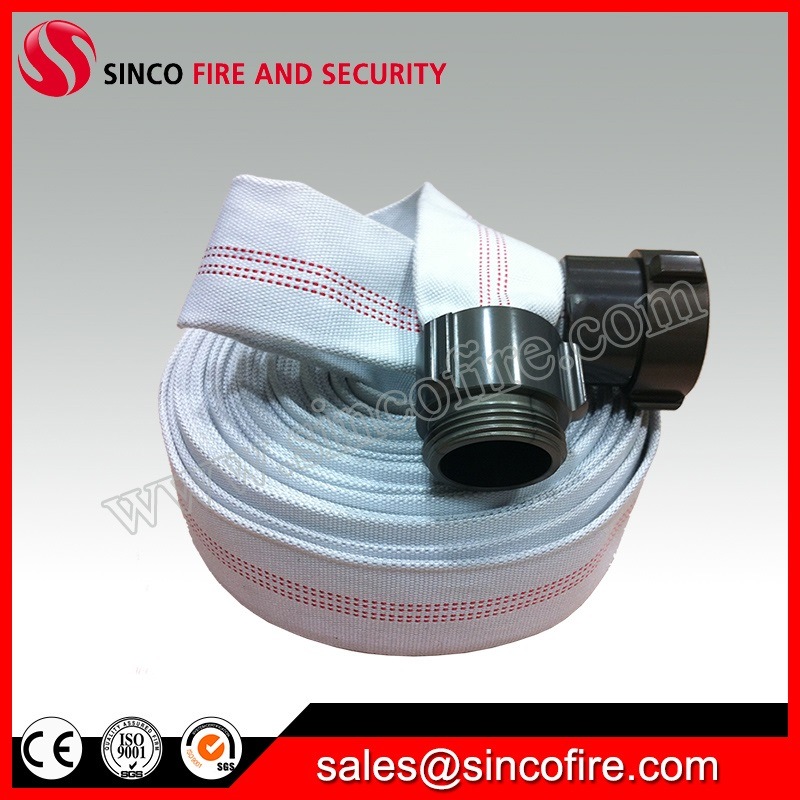

10 Bar PVC Fire Hose
