13 Bar Fire Hose Pipe

Quantity:



Inquire Add to Basket

Port:
Xiamen, China
Production Capacity:
90000meters/Day
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Model NO.:
1"-12"
Lining:
With Lining
Weaving Type:
Twill/Plain Weaving
Hose Coupling Structure:
Plug-in
Color:
Customized
Adaptors:
Fire Hose Couplings/Fire Hose Nozzle
Trademark:
SINCO/OEM
Transport Package:
Cartons or Woven Bags
Specification:
1"-10"
Origin:
Fujian
HS Code:
5909000000
Material:
PVC/Rubber/EPDM/PU
Fire Hose Manifold Type:
2 Water Segregator
Hose Coupling Type:
Hose Coupling
Fire Hose Length:
10m-30m
Working Pressure:
0.8MPa-2.5MPa
Diameter:
25mm-250mm

Product Description

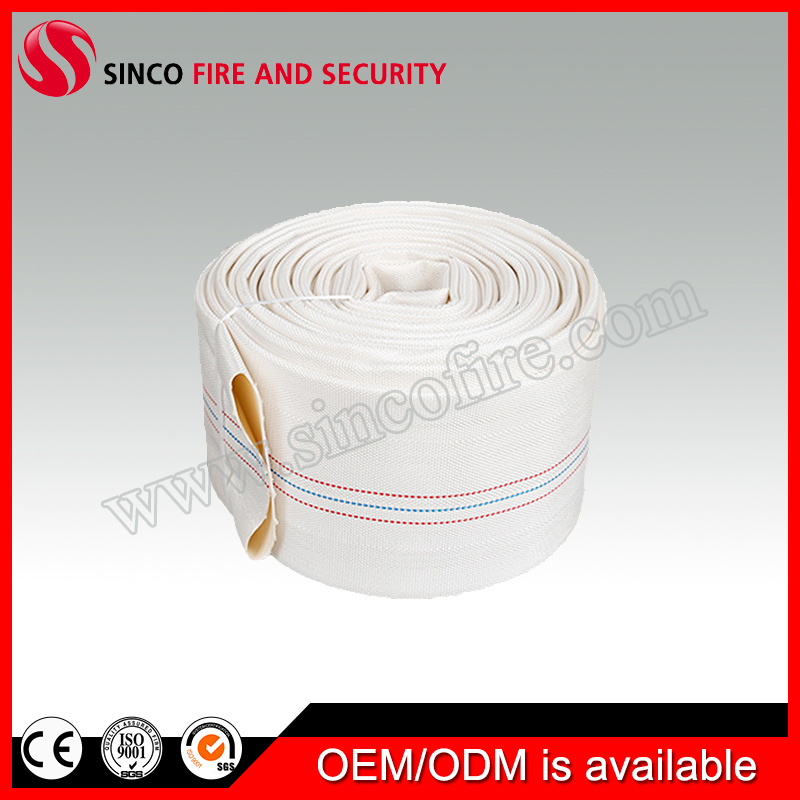

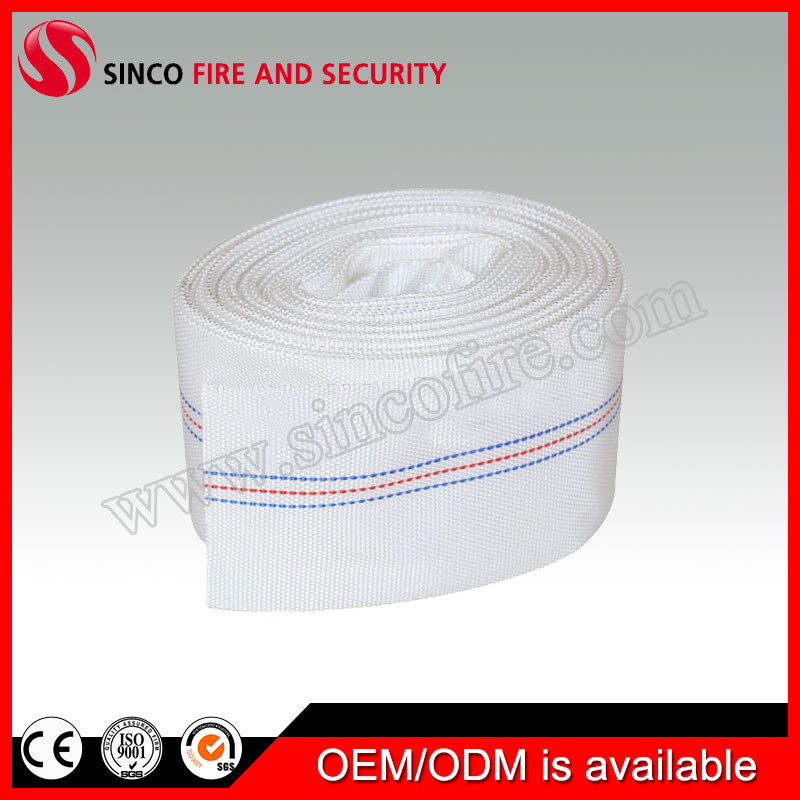

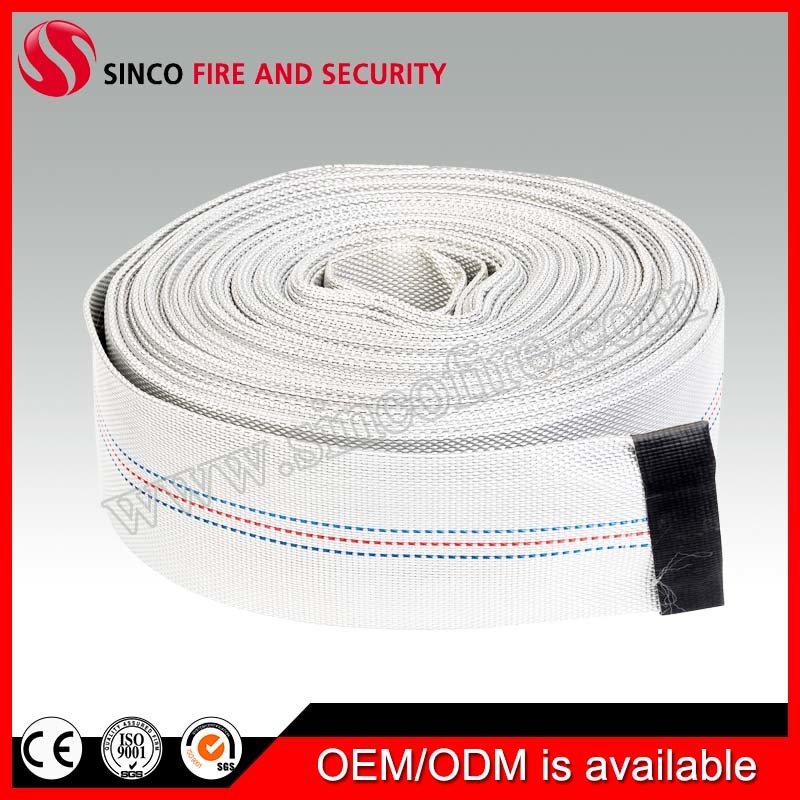

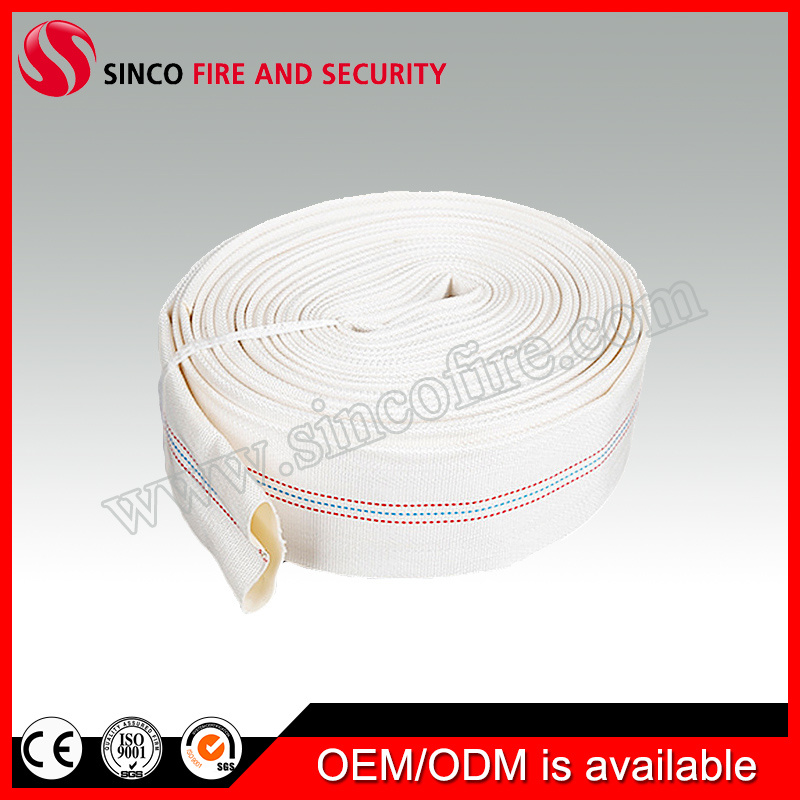

13 bar fire hose pipe

Fire Hose is mainly used in fire-fighting ,and help to delivery fire water to put out fire. it can be equipment with fire hose coupling and nozzle with fire hydrant system.

Fire Hose Lining: PVC/Rubber/PU/EPDM
Fire Hose Jacket: High Tenacity Polyester Yarn or Fiber
Fire Hose size: 1 Inch-10 Inch (25mm-250mm)
Working Pressure: 8-25 Bar
Bursting Pressure: 24-72 Bar
The length of fire hose: 10m-30m, Or Customized
The color of fire hose: White/Red/Customized
There are special adhesive ( solid or liquid)between the jacket and the hose. The fire hose is soft and highly polished, reduce the flow resistance.
The fire hose is thinner and softer, lighter and more convenient to use.
The certificate of fire hose: CCCF, ISO9001:2008, CE(EN14540)
The usage of fire hose: fire-fighting/ irrigation/agriculture

Size		Tolerance	Working Pressure	Burst Pressure	Length
Inch	mm	mm	Bar	Bar	M/FEET
1"	25	1.5	8/10/13/16/20	24/30/39/48/60	10/33 15/50 20/66 25/83 30/100
1.5"	40	1.5	6/8/10/13/16/20	18/24/30/39/48/60
2"	50	2	6/8/10/13/16/20	18/24/30/39/48/60
2.5"	65	2.3	6/8/10/13/16/20	18/24/30/39/48/60
3"	80	2.3	6/8/10/13/16/20	18/24/30/39/48/60
4"	100	2.3	6/8/10/13/16	18/24/30/39/48
5"	125	2.5	6/8/10/13	18/24/30/39
6"	150	2.5	6/8/10	18/24/30
8"	200	2.5	6/8	18/24

Photoes

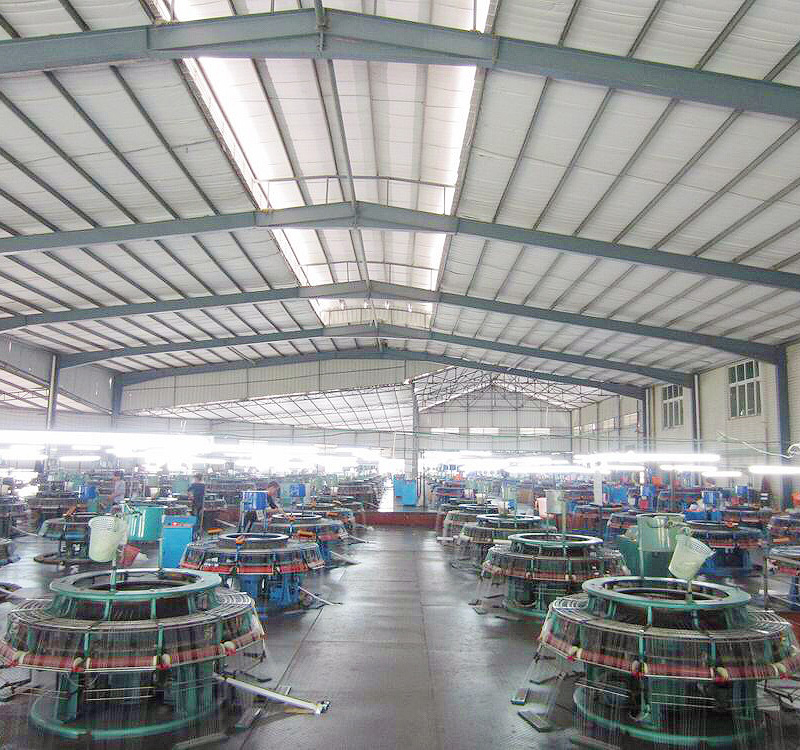

Workshop

Other Fire Fighting Equipment
13 Bar Fire Hose Pipe

Our Company
We could supply fire hose, fire hose fittings, spray nozzle, coupling, automatic fire sprinkler system products, gate valves, check valves, ball valves, etc. All these products strictly confirming to JIS, API ans BS standards. All of our products comply with international quality standards and are greatly appreciate in avariety of markets around world. Our factory is covering an area of 15900 square meters, we now over 300 workers. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarteen total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a globe sales network reaching the North America, South America, Mideast, Southeast Asia, East Europe, etc.

FAQ
1. Could you supply the samples?
Free samples always ready if the value is within our purview.

2.Do you have the MOQ?
For conventional products, Low MOQ.

3. Can you add some logo on the products?
Yes. We could OEM and design your logo.

4. Are you able to design or explore a new products for us?
Yes, we are able to, if the clients could supply the drawings or samples.
