19mm X36m Red Hose Brass Nozzle Fire Hose Reel

Quantity:
  • Xiamen, China
  • 8000rolls/Week
  • L/C, T/T, D/P, Western Union, Paypal
  • 19mmx36m
  • 19mm
  • 36m
  • Brass
  • 12 Bar/175 Psi
  • 17 Bar/247psi
  • OEM
  • Standard Export Package
  • 19mm*36m 1"*30m
  • Fujian
  • 8424
  • Semi-Concealed
  • Steel&PVC/Rubber
  • Coil Type
  • Customized
  • As1221
  • Manual/Automatic
19mm x36M Red Hose Brass Nozzle Fire Hose Reel

Introduction
This Fire Hose Reel can be easily used just mount it to your Fire Trailer or at Home with your water tank ,at your Farm with the extra long durable hose or for Commercial Use.

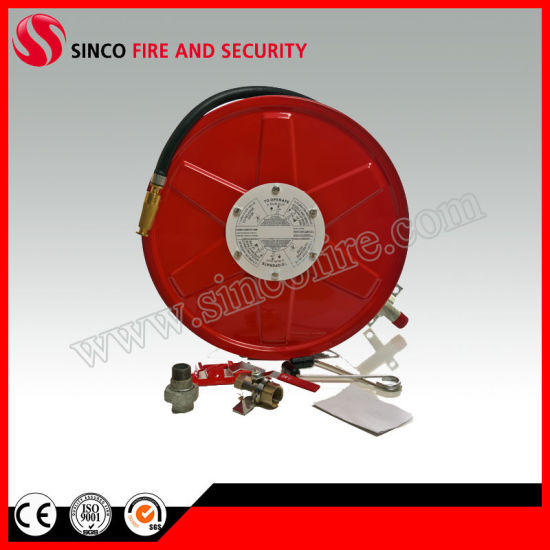

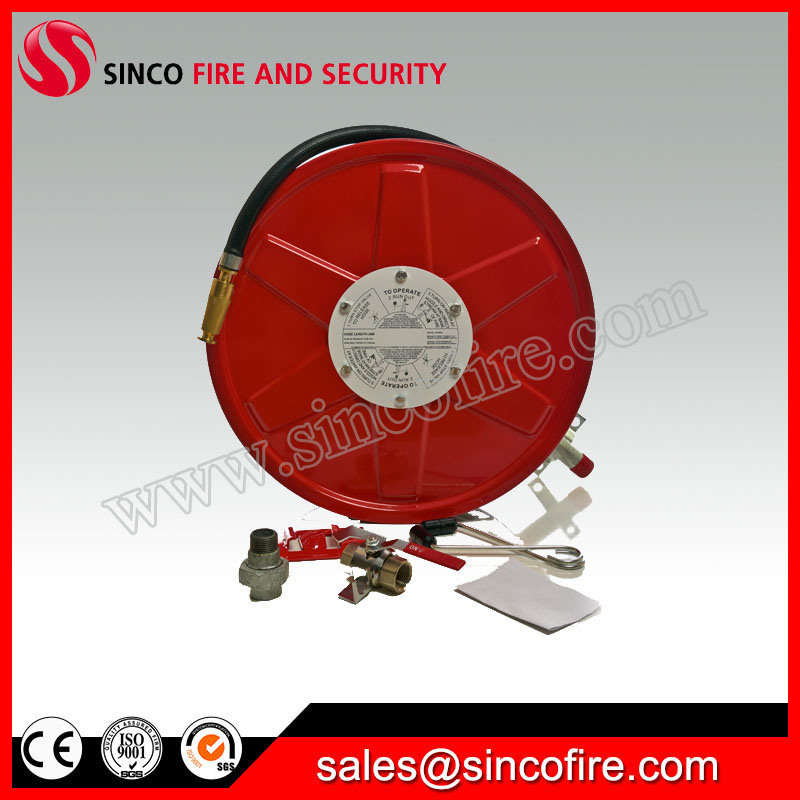

This Fire Hose Reel comes Complete with 36 meters of 19mm Fire Hose with a Brass nozzle, Bright Red Reel, 25mm ball Valve, 25mm Union and Guide arm for easy connection.

Fire Hose Reel Features
1. 36 Meter Fire Hose 19mm internal of Hose
2. Made to Australian Standards AS1221 (1997)
3. Mild Steel side plates painted Bright Red
4. Swivel Zinc Coated Guide Arm
5. Brass Nozzle, Twist Grip operation
6. Dimensions- 550x550x240mm Approx
7. 25mm Brass Isolation Valve/Stop Valve Interlock action
8. Galvanised Union Female to Female
9. Wall Mounting Easy Fit Bracket
10. Weight 23kgs
11. Minimum Discharge rate is 27 litres per minute
12. Fixed fire hose reel comes with all parts required, including 25mm ball valve (including nozzle locking device), hose guide and wall bracket.


Specification
Type Fixed position fire hose reel
Hose Size 19mm diameter hose, 36m long
Coverage Radius 40m radius according to AS2441 (36m + 4m water stream)
Nozzle Type Brass twist type nozzle
Nominal Inlet Pressure 220kpa (2.2bar / 32psi) at 23 Deg C
Tested Pressure 1700kpa (17bar / 247psi)
Maximum Working Pressure 1200kPa (12bar / 175 psi)
Approvals Certified and approved to AS/NZS 1221 (1997)
Appearance Red with a white usage plate in centre. Black hose.
Dimensions
- Width
- Height
- Depth
- Weight

550mm
550mm
240mm
21kg
As Packaged
- Length
- Width
- Height
- Weight

600mm
600mm
250mm
23kg

Photos
19mm X36m Red Hose Brass Nozzle Fire Hose Reel
19mm X36m Red Hose Brass Nozzle Fire Hose Reel
19mm X36m Red Hose Brass Nozzle Fire Hose Reel
