2 & 4 Way Breeching Inlet Valve

Quantity:
  • Xiamen, China

  • 5000-8000pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • 2 Way/4 Way

  • 1.6 MPa

  • 20 Bar

  • 2 X 2-1/2" Instantaneous Male

  • 4 " Pn16 or Table D Outlet Flange

  • OEM/blank

  • Standard Export Package

  • 2 way/4 way

  • Quanzhou, Fujian

  • 8481809000

  • Double Outlet Hydrant Valve

  • Normal Fire Hydrant

  • Ordinary Bolt

  • Low Fire Hydrant

  • Ordinary

  • Brass/Cast Iron/Ductile Iron

2 & 4 Way Breeching Inlet Valve

Description
2-Ways & 4-Ways Breeching Inlets are privided at the Dry or Wet Riser Mains of 4"(100mm) or 6"(150mm) fitted at ground level to provide easy access for the connection to water supply. In conjunction with the Fire Protection System, the Fire Brigade is able to charge-up the System via the Breeching Inlets during emergencies.

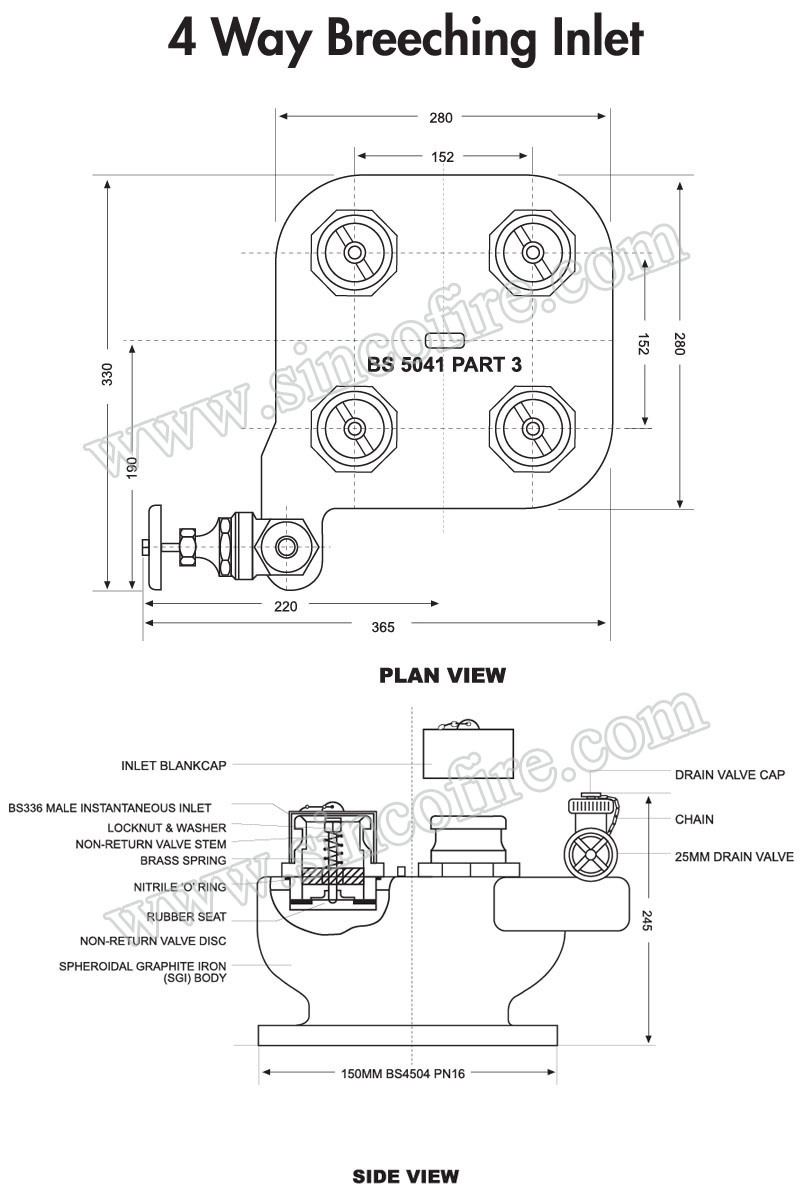

Technical Specification
No. Part Name Material
1 Sizes 4" x 2-Way/ 6"x 4-Way
2 Breeching Inlet Body Spheroidal Graphite Iron
3 Inlet Connection BS1400 LG2 Gunmetal And Copper Alloy Parts With Bronze Spring, Washer, etc.
4 Locknut Stainless Steel
5 Inlet Blanking Caps Rubber with Chrome Chain
(Brass Or Gunmetal Blank Caps Are Also Available On Request)
6 Flange connection BS 4504/PN16
2 & 4 Way Breeching Inlet Valve
2 & 4 Way Breeching Inlet Valve

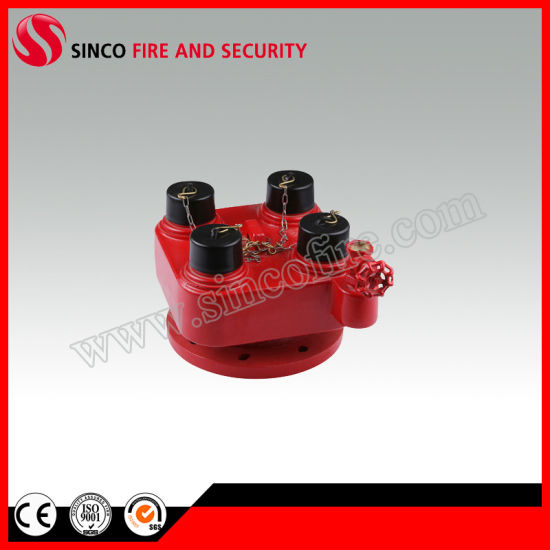

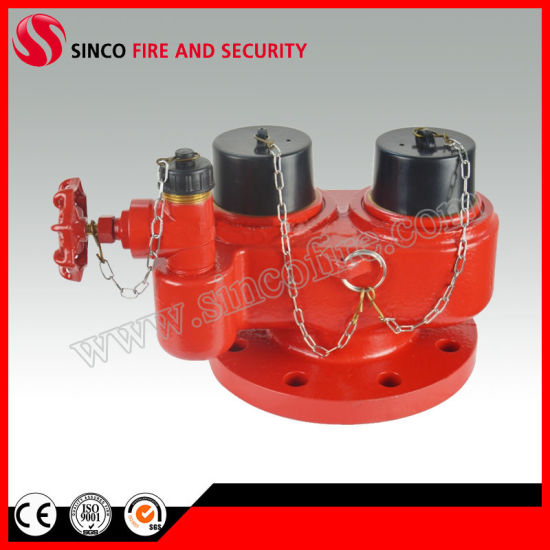

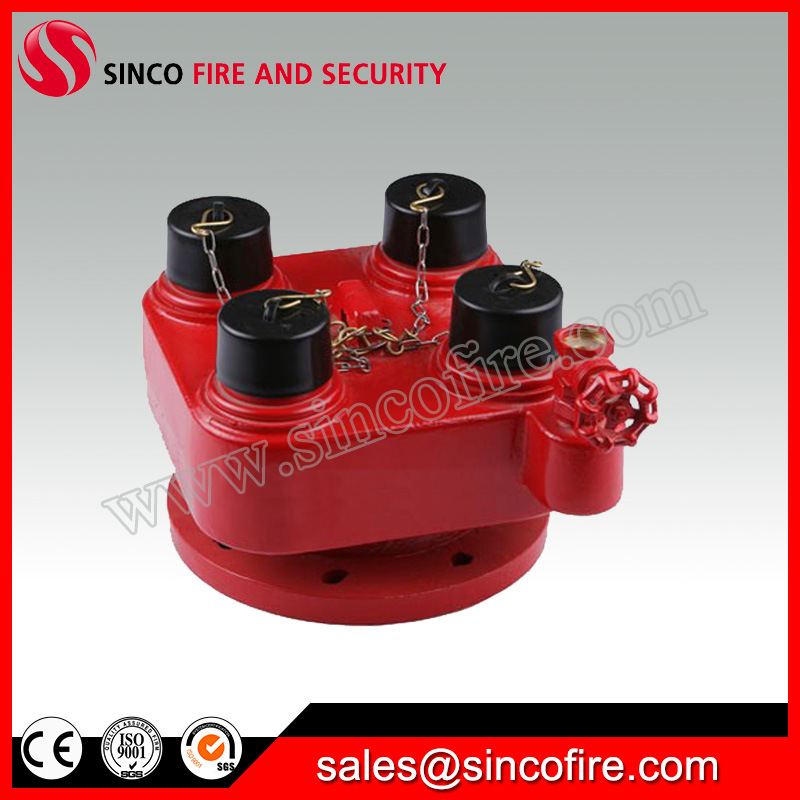

Photoes
2 & 4 Way Breeching Inlet Valve
2 & 4 Way Breeching Inlet Valve

Other Fire-fighting Equipment
2 & 4 Way Breeching Inlet Valve
