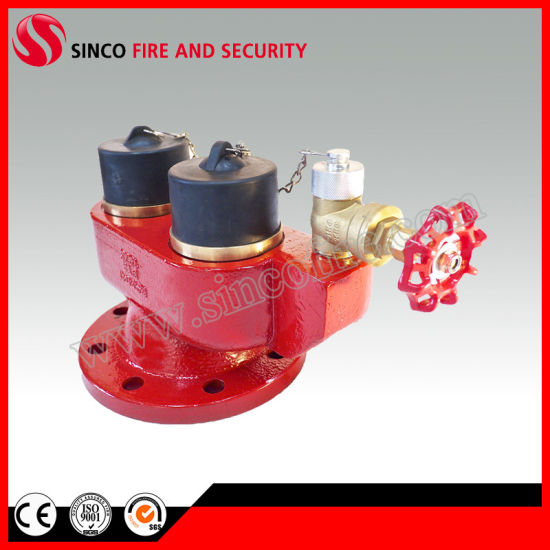

2.5" BS336 Oblique Angle Flange Type Fire Hydrant Landing Valve

Quantity:
  • Xiamen, China
  • 10000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • 2.5"
  • Cast Iron with Red/Black Finished
  • Male 2.5bsp or 2.5BSPT/Customized
  • 2.5" BS336/Customized
  • 1.6MPa
  • SINCO/OEM
  • Standard Export Package
  • 1.5"-2.5"
  • Fujian
  • 84818
  • Fire Hydrant Landing Valve
  • Normal Fire Hydrant
  • Ordinary Bolt
  • Low Fire Hydrant
  • Ordinary
  • Brass
2.5" BS336 oblique angle flange type fire hydrant landing valve

Description
Fire hydrant landing valve is one of the most important fire-fighting equipments. It can be fixed in factory, warehouse, building and public places. It can also used for ferry fire with fire hoses and fire nozzles.

Technical Specification
Body Copper Alloy to BS 1400
Handwheel Grey Cast Iron to BS 1452
Inlet Flanged or BSP screw thread
Outlet Female instantaneous to BS336 and other connections
Pressure Test 16bar
Norminal size 2-1/2",2"
Manufacture and certified to BS 5041 Part 1

2.5
Item Name Material Qty
1 Body ZcuZn40Pb2 1
2 Washer HPb59-1SUS304 1
3 Rubber Gasket NBR 1
4 HPb58-2A 1
5 Stem HPb59-1 1
6 Seal Ring NBR 1
7 Seat HPb59-1 1
8 Seal Ring NBR 2
9 Handwheel HT250 1
10 Washer SUS304 1
11 Nut SUS304 1
12 HPb59-1 1
13 Spring SUS304 1
14 Pin SUS304 2
15 HPb59-1 1
16 HPb59-1 1
17 Nut SUS304 1
18 Bolt HPb58-3 1
19 Rubber Gasket NBR 1
20 Cap ABS 1
21 Chain SUS304+H62 1
2.5

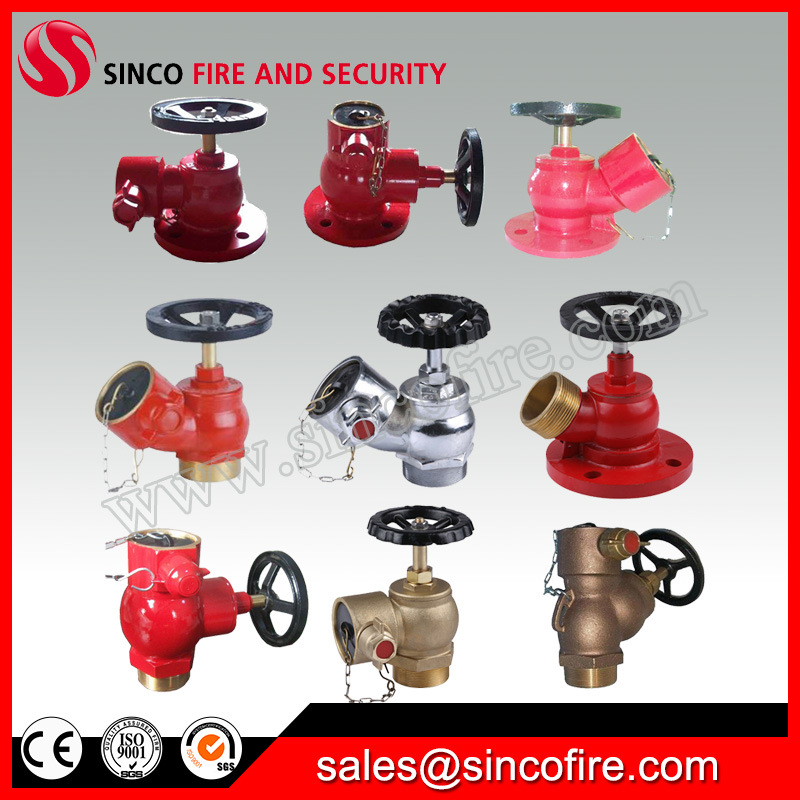

Other fire hydrant landing valve
