| Quantity: | |
|---|---|
Xiamen, China
150000pieces/Month
L/C, T/T, D/P, Western Union, Paypal
zst
Differential Type
Butterfly Valve Type
80mm-250mm
80L/Min or 115L/Min
Lever Type
Fire Sprinkler
DN15/DN20
NPT/BSPT
Brass/Zinc
Chrome/Natural Brass/White

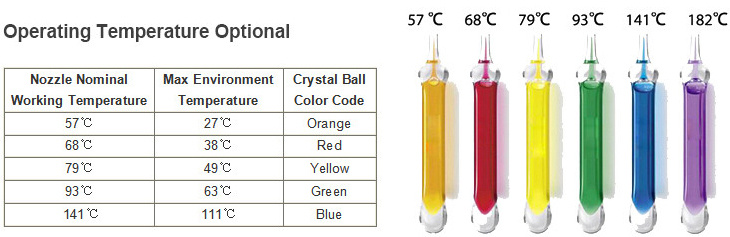

57/68/79/93/141/182 Degree
Standard/Quick
5.6(80)/8.0(115)
1.2MPa/175psig
SINCO/OEM
Standard Export Package
1/2 Inch or 3/4 Inch
Quanzhou, Fujian
8424
Upright/Pendent/Sidewall
Closed
Wet Alarm Valve
Can′t Automatically Opened and Closed
Water Spray System
Wet Fire Sprinkler System

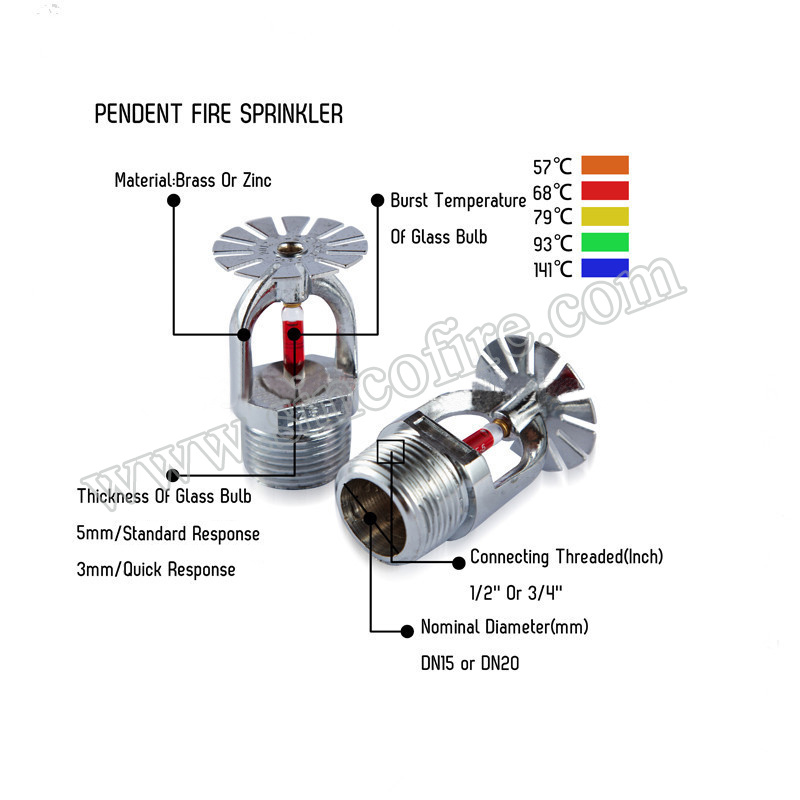

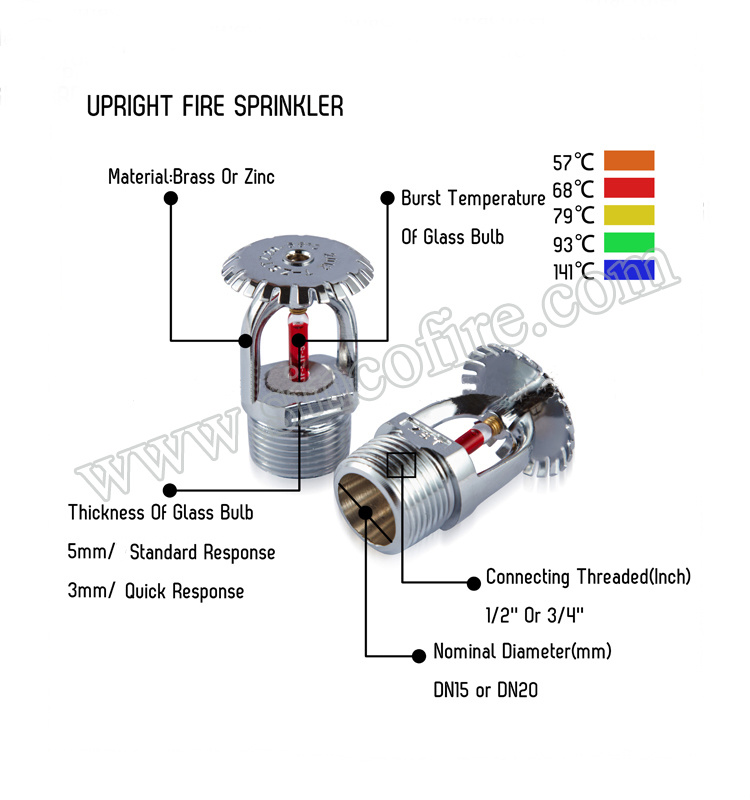

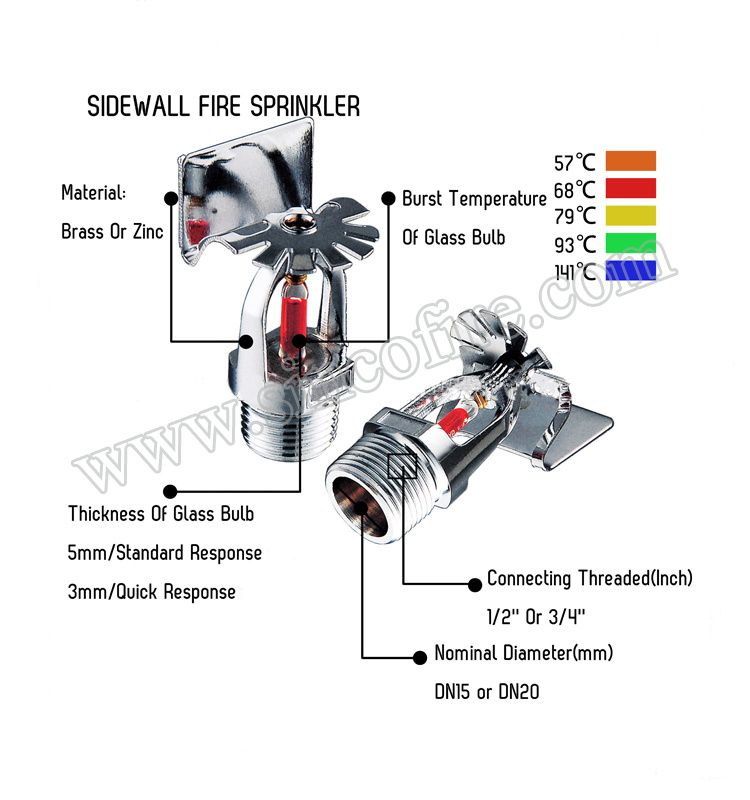

| Type | Upright / Pendent /Sidewall/Conventional/Concealed | |
| Material | Brass/Zinc | |
| Surface finish | Natural brass or Chrom Plated or White Color Coated | |
| Thread diameter | 1/2" NPT/BSPT (DN15) | 3/4" NPT/BSPT (DN20) |
| Flow characteristic coefficient | 80L/min(K=5.6) | 115L/min(K=8.0) |
| Glass bulb diameter | 5mm(Standard Response) or 3mm(Quick Response) | |
| Certificates | ISO,CCC,UL | |
| Max working pressure | 1.2Mpa (175Psig/12 Bar) | |
| Factory Hydrostatic Test | 100%, 3.0Mpa | |
 | ||
FAQ
1. Could you supply the samples?
Free samples always ready if the value is within our purview.
2. Do you have the MOQ?
For conventional products, Low MOQ.
3. Can you add some logo on the products?
Yes. We could OEM and design your logo.
4. Are you able to design or explore a new products for us?
Yes, we are able to, if the clients could supply the drawings or samples.
| Type | Upright / Pendent /Sidewall/Conventional/Concealed | |
| Material | Brass/Zinc | |
| Surface finish | Natural brass or Chrom Plated or White Color Coated | |
| Thread diameter | 1/2" NPT/BSPT (DN15) | 3/4" NPT/BSPT (DN20) |
| Flow characteristic coefficient | 80L/min(K=5.6) | 115L/min(K=8.0) |
| Glass bulb diameter | 5mm(Standard Response) or 3mm(Quick Response) | |
| Certificates | ISO,CCC,UL | |
| Max working pressure | 1.2Mpa (175Psig/12 Bar) | |
| Factory Hydrostatic Test | 100%, 3.0Mpa | |
| ||
