| Quantity: | |
|---|---|
Xiamen, China
20000 Sets Per Month
L/C, T/T, D/P, Western Union, Paypal
Z41X/RRXP
Outside Gate Valve
Regulation, Safety, Emptying, Drain, Flow Control
DIN/BS/ANSI/GB etc.
Industrial Usage, Water Industrial Usage, Household Usage
80 Celsius Degree
Water, Sewage, Oil, Gas etc
Pn10/16/25
Blue/Red
Blank
Wooden Case
DN40-DN600
Fujian
8481801090
Straight-through
Cast Iron/Ductile Iron/Stainless Steel
Flange
Low Pressure
Manual
Wedge Gate Valve
| Model Number | Z41X | ||
| Connection | Flanged | ||
| Flange Ends Standard | ANSI150#, BS,DIN,JIS10K; | ||
| Body Material | Ductile iron ,QT450 | ||
| Valve Disc Material | Ductile iron EPDM coated | ||
| Seat Material | EPDM | ||
| Working Pressure | 16 Bar (PN16) | ||
| Sealing Test Pressure | 1.76 Mpa | ||
| Body Strength Test Pressure | 2.4 Mpa | ||
| Temperature | -23°C to +100 °C | ||
| Media | Water | ||
| Operator | Manual Operated By Hand Wheel | ||
| Color | Blue or Fire Red | ||
| Connecting Size | 2 inch,2.5 inch,3 inch,4 inch,5 inch, 6 inch, etc | ||
| Structure | Resilient Wedge Stem Gate Valve | ||
| Spindle | OS&Y (Rising Stem ) Gate Valve | ||

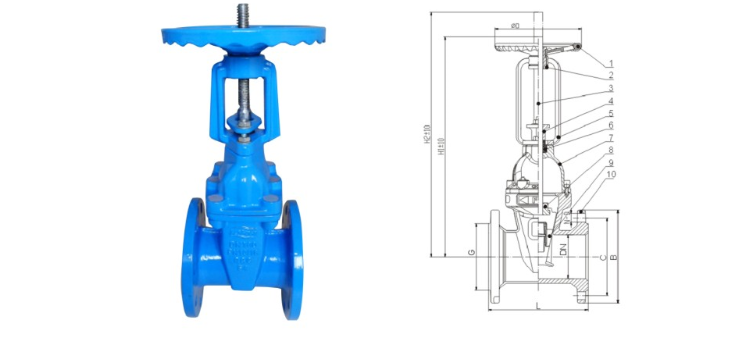

| Materials of major parts: | ||
| No. | Part | material |
| 1 | Body | Ductile cast iron |
| 2 | Disc | Ductile cast iron packed with NBR |
| 3 | Bolt | Carbon Steel/Stainless Steel |
| 4 | Bonnet Gasket | EPDM/NBR |
| 5 | Bonnet | Ductile cast iron |
| 6 | Stem | Stainless Steel |
| 7 | O-ring | EPDM/NBR |
| 8 | Thrust bearing | Brass |
| 9 | Gland | Ductile cast iron |
| 10 | Dust proof gasket | EPDM/NBR |
| 11 | Hand wheel | Ductile cast iron |
| Model Number | Z41X | ||
| Connection | Flanged | ||
| Flange Ends Standard | ANSI150#, BS,DIN,JIS10K; | ||
| Body Material | Ductile iron ,QT450 | ||
| Valve Disc Material | Ductile iron EPDM coated | ||
| Seat Material | EPDM | ||
| Working Pressure | 16 Bar (PN16) | ||
| Sealing Test Pressure | 1.76 Mpa | ||
| Body Strength Test Pressure | 2.4 Mpa | ||
| Temperature | -23°C to +100 °C | ||
| Media | Water | ||
| Operator | Manual Operated By Hand Wheel | ||
| Color | Blue or Fire Red | ||
| Connecting Size | 2 inch,2.5 inch,3 inch,4 inch,5 inch, 6 inch, etc | ||
| Structure | Resilient Wedge Stem Gate Valve | ||
| Spindle | OS&Y (Rising Stem ) Gate Valve | ||
| Materials of major parts: | ||
| No. | Part | material |
| 1 | Body | Ductile cast iron |
| 2 | Disc | Ductile cast iron packed with NBR |
| 3 | Bolt | Carbon Steel/Stainless Steel |
| 4 | Bonnet Gasket | EPDM/NBR |
| 5 | Bonnet | Ductile cast iron |
| 6 | Stem | Stainless Steel |
| 7 | O-ring | EPDM/NBR |
| 8 | Thrust bearing | Brass |
| 9 | Gland | Ductile cast iron |
| 10 | Dust proof gasket | EPDM/NBR |
| 11 | Hand wheel | Ductile cast iron |
