Battery Operated Fire Alarm System Stand Alone Smoke Detector Optical

Quantity:



Inquire Add to Basket

Port:
Xiamen, China
Production Capacity:
10000pieces/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Model NO.:
SASD004
Working Method:
9V Battery Operated
Alarm Current:
>20ua
Standby Current:
>10ua
Certificate:
Ce/ISO
Detecting Area:
20 Square Meter
Trademark:
OEM
Transport Package:
Standard Export Package
Origin:
Fujian
HS Code:
8531100000
Type:
Smoke Detectors
Anti-theft Alarm System Approach:
Active
Anti-Theft Alarm System Type:
Smoke Alarms
Anti-Theft Alarm System-Wide:
Point Control Alarm Detectors
Anti-Theft Alarm System Distance:
Power Detector
Types of Smoke Detectors:
Photoelectric Smoke Style

Product Description

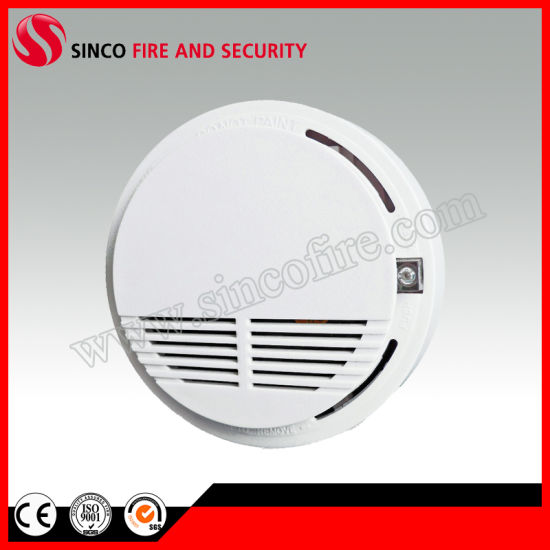

Battery Operated Fire Alarm system Stand Alone Smoke Detector Optical

Introduction
This product named photoelectric detector(hereinafter called detector) detects the smoke by a couple of infrared diodes. The principle of detecting is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber. The chamber can shield external light, but don't affect the smoke into it. While have no smoke, the diode can receive very weak infrared light.

Specification

Operating voltage	9VBATTERY (independence or wireless type)
Static current	10uA
Alarm current	20mA
Indicate alarm	RED LED FLASH
Sound Level	85dB/m
Operating Temp	-10 +50
Humidity	95 RH
Detecting area	20 square meter
Alarm output	RF signal 315MHz or 433MHz
Size	106*35mm
Execute criterion	GB4715-1993

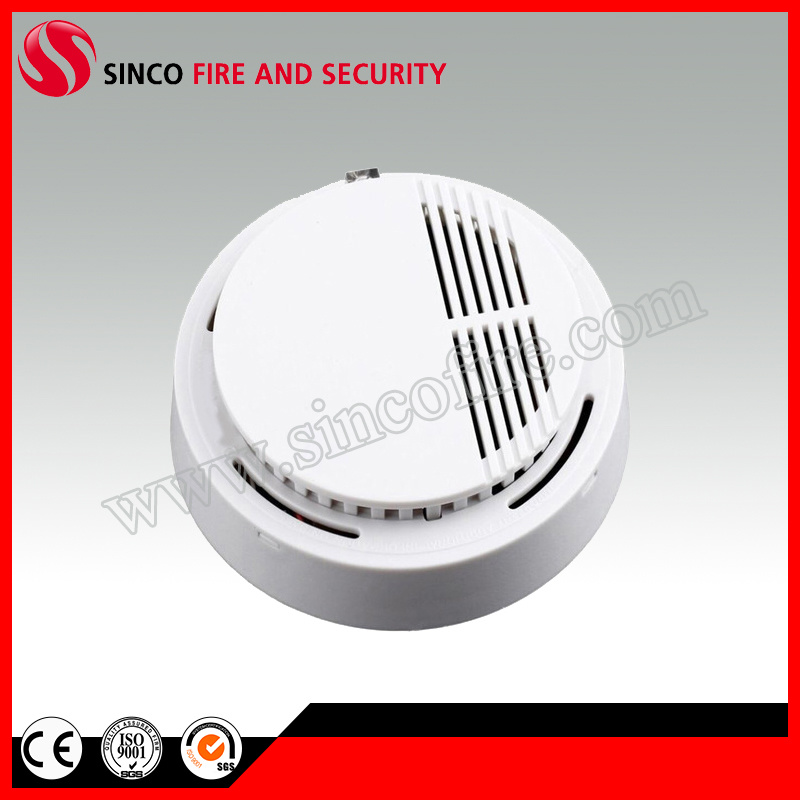

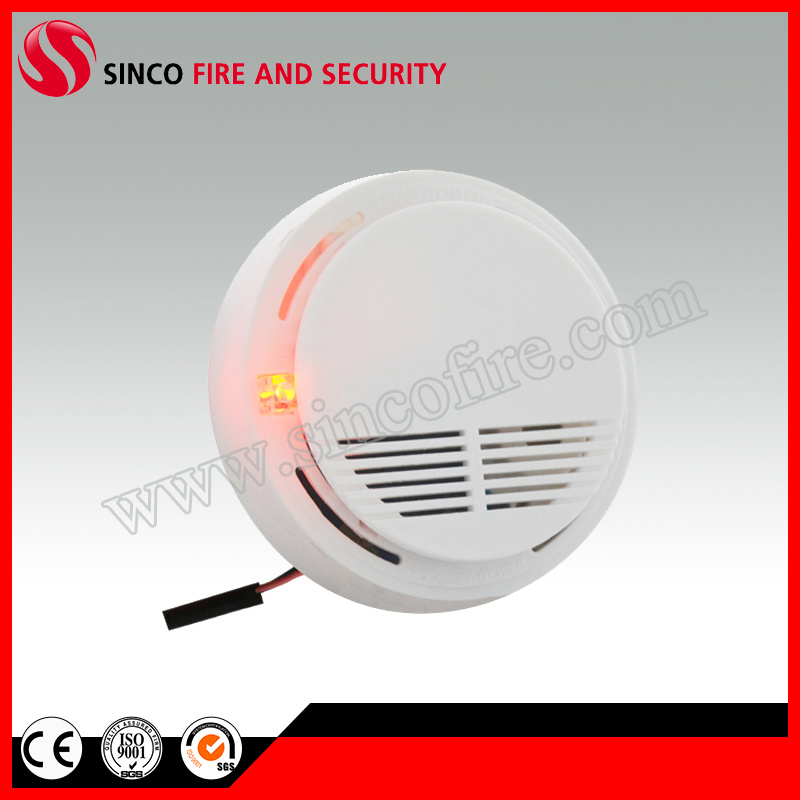

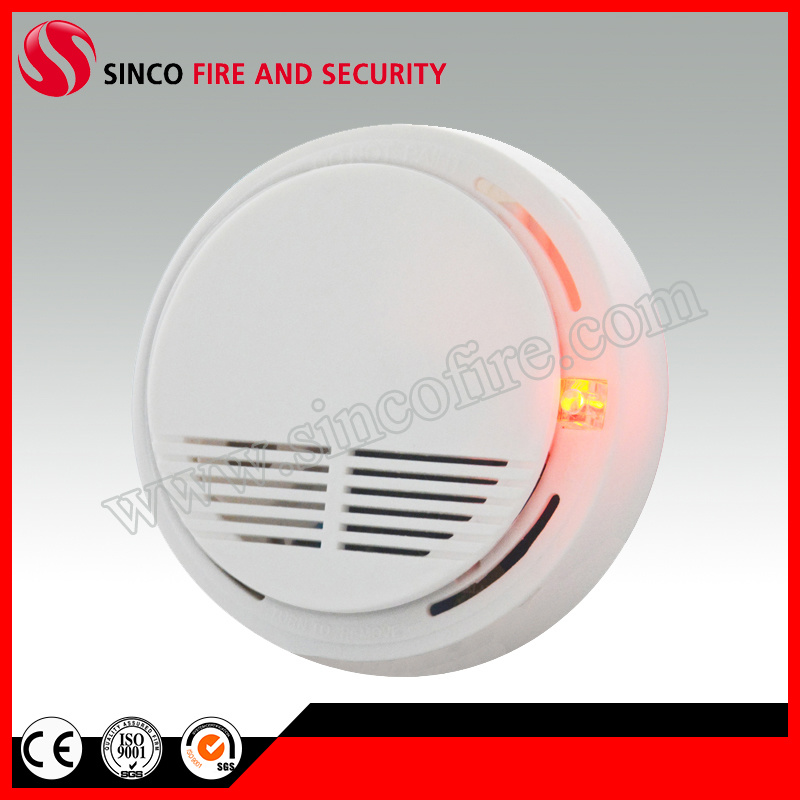

Photoes

Other Products Recommdendation

Battery Operated Fire Alarm System Stand Alone Smoke Detector Optical

SINCO FIRE AND SECURITY CO., LIMITED is a professional company specialized in Fire fighting equipments and Safety products.
