Carbon Steel Foam Chamber for Fire Foam System

Quantity:
  • Xiamen, China
  • 5000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • PC/PCL
  • Dn50/65/80/100,etc
  • Dn50/65/80/100,etc
  • Red/Yellow/etc.
  • SINCO/OEM
  • Wooden Cases
  • PC4/8/16/24 PCL4/8/16/24
  • Fujian
  • 8424100000
  • Vertical/Horizontal
  • 4~24L/S
  • 0.3MPa~0.6MPa
  • More Than 6%
  • Carbon Steel
  • ANSI/BS/DIN/JIS,etc
Carbon Steel Foam Chamber for Fire Foam System
Introduction
Designed as air aspirating discharge devices, foam generator is used principally for the protection of dikes, open floating-roof storage tanks, and rim seals, where low-velocity foam streams are desired. Foam generator generally is installed in the line of a semi-fixed or fixed foam fire-protection system, mounted either horizontally or vertically.

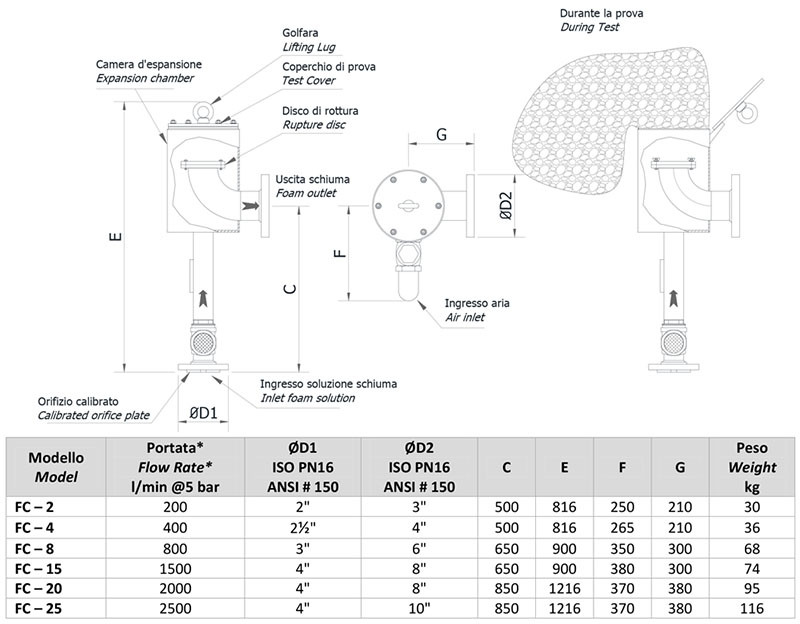

The foam chambers consist of a foam expansion chamber and an integral foam maker with a stainless steel screened air inlet. Each chamber includes an orifice plate, two inlet gaskets, vapor seal assembly, cover gasket, and an outlet gasket. The required deflector (split or shallow) and optional mounting pad assembly are sold separately.
Carbon Steel Foam Chamber for Fire Foam System


Specification
Size Working pressure
Mpa
Rate flow mixture liquid(L/S) Foam expansion Flow series
(k)
Inlet flange Outlet
flange
Height (mm)
PCL4 0.3-0.6 4 ≥6 107 50 65 155
PCL8 8 215 65 80 160
PCL16 16 429 100 125 185
PCL24 24 644 125 150 200
Carbon Steel Foam Chamber for Fire Foam System

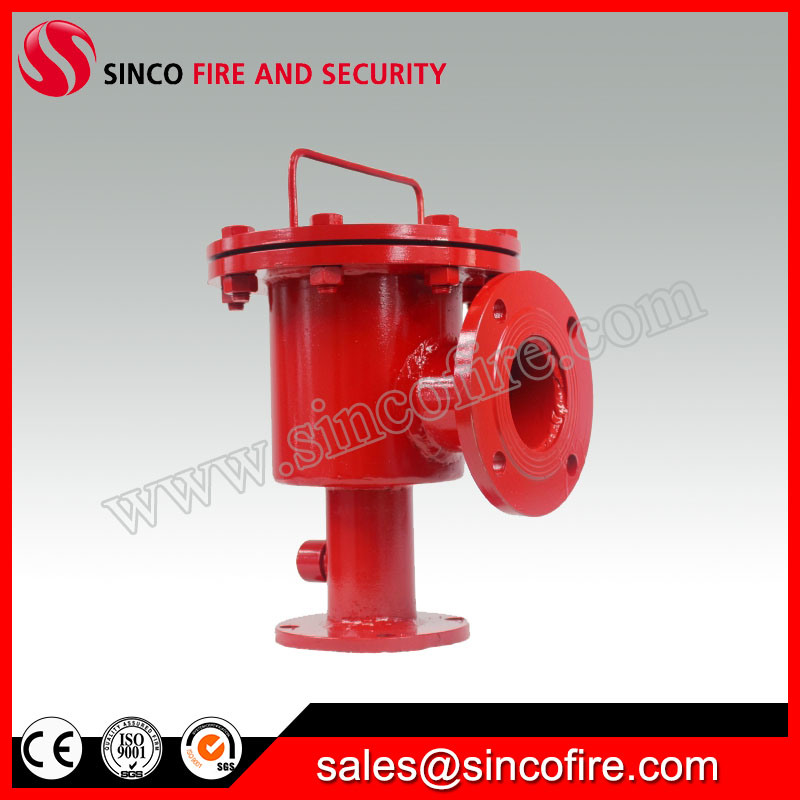

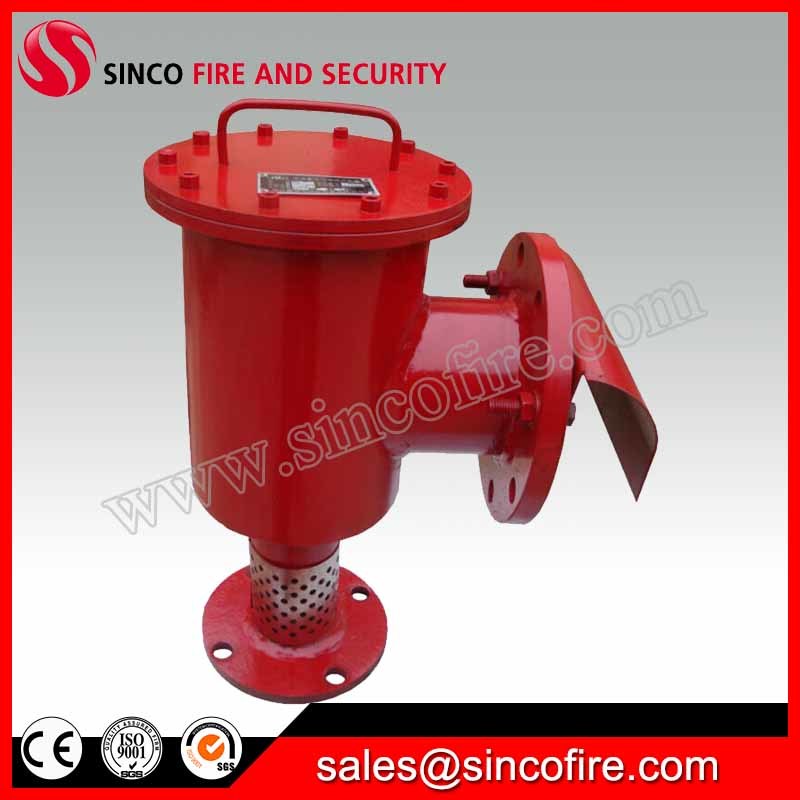

Photoes
Carbon Steel Foam Chamber for Fire Foam System
Carbon Steel Foam Chamber for Fire Foam System
Carbon Steel Foam Chamber for Fire Foam System
