Cast Iron Double Flange Y Strainer, BS/ANSI Pn10/16

Quantity:
Inquire Add to Basket

  • Xiamen, China

  • 6000 Sets Per Month

  • L/C, T/T, D/P, Western Union, Paypal

  • DN50-DN300

  • Cast Iron

  • Stainless Steel

  • Pn10/16/25

  • Water,Oil,Gas,Steam

  • None/OEM

  • Standard Export Package

  • DN50-DN600

  • Fujian

  • 8481809000

  • CCC, ISO, CE

  • Ordinary Temperature

  • Low Pressure

  • Gate Valve

  • Flange

  • Cast Iron/Stainless Steel

Cast Iron Double Flange Y Strainer, BS/ANSI Pn10/16

Introduction
The flange Cast Iron Y Strainer is applicable to water, oil and gas. It's function is to allow scale and dirt residue to be caught, preventing the chance of damage to equipment. The strainer allows full flow of liquid with only minimal pressure loss. The removable cover allows easy access to the basket for cleaning. It is epoxy coating, for water conduits in pressure. Face to face dimensions according F6. Stainless steel filter with round pierced screen, pierces diameter 1,5 mm for strainers up to DN 150, and 2 mm for strainers up to DN 300. Removable filtering element, threaded drain. Maximum working temperature <120°C.

Specification
Materials of major parts
No. Part material
1 Body Ductile Iron
2 Filter SS304
3 Bonnet Ductile Iron
4 O-Ring NBR
5 Bolt SS304
6 Coating Epoxy Resin
Dimensions(mm)
DN L D f s c b n-d
50 203 165 125 99 19 3 4-19
65 216 185 145 118 19 3 4-19
80 241 200 160 132 19 3 8-19
100 292 220 180 156 19 3 8-19
125 330 250 210 184 19 3 8-19
150 356 285 240 211 19 3 8-19
200 495 340 295 266 20 3 12-23
250 622 400 355 319 22 3 12-28
300 698 455 410 370 24.5 4 12-28

Photoes

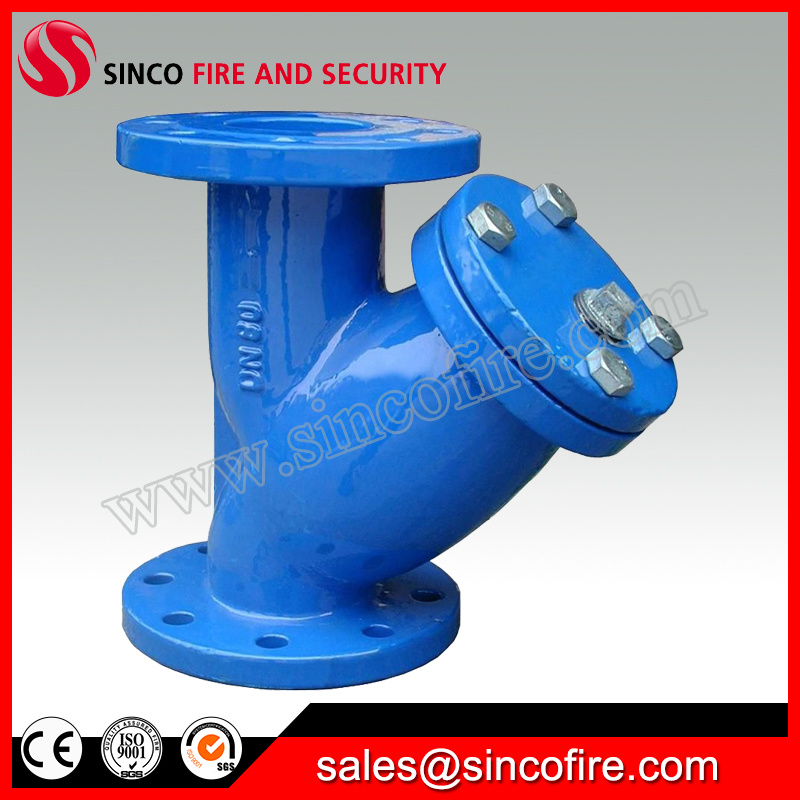

Cast Iron Double Flange Y Strainer, BS/ANSI Pn10/16

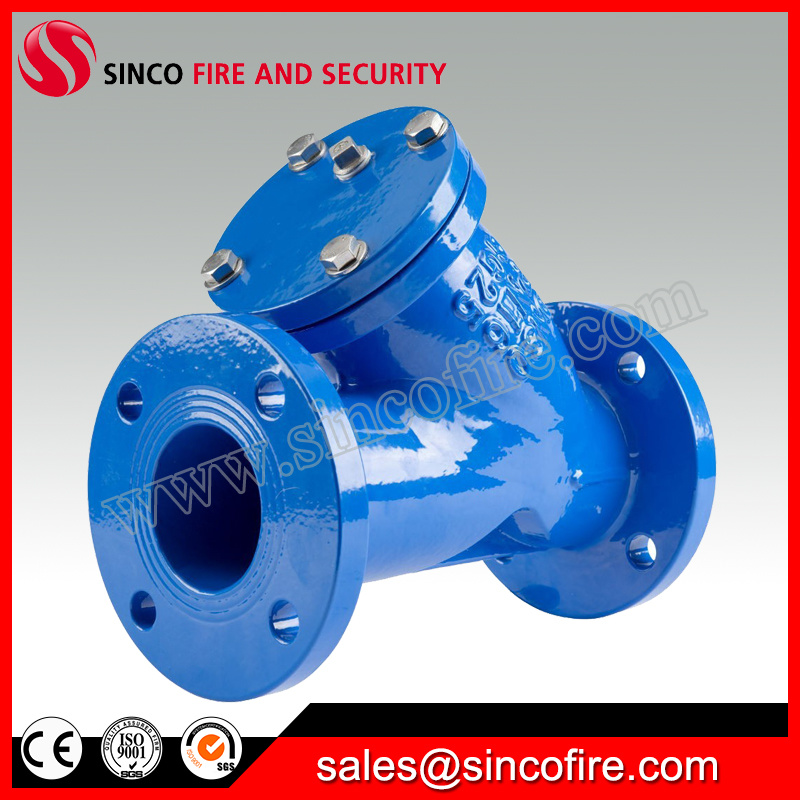

Cast Iron Double Flange Y Strainer, BS/ANSI Pn10/16
Cast Iron Double Flange Y Strainer, BS/ANSI Pn10/16
