Cheap Fire Fighting Dry Alarm Valve Dry Alarm Check Valve

Quantity:
  • Xiamen, China
  • 5000 Sets/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • ZSFC
  • 80mm-250mm
  • Ductile Iron/Cast Iron/Stainless Steel
  • Red Painting
  • 4"/6"/8"
  • 1.2MPa
  • Flange
  • Retard Chamber, Water Motor Gong, etc.
  • SINCO/OEM
  • Standard Export Package
  • 4"-6"
  • Quanzhou, Fujian
  • 84818
  • Closed
  • Dry Alarm Valve
  • Can′t Automatically Opened and Closed
  • Dry Fire Sprinkler System
  • Enclosed Type
  • Seat Type
Cheap Fire Fighting dry alarm valve Dry Alarm Check Valve

Introduction

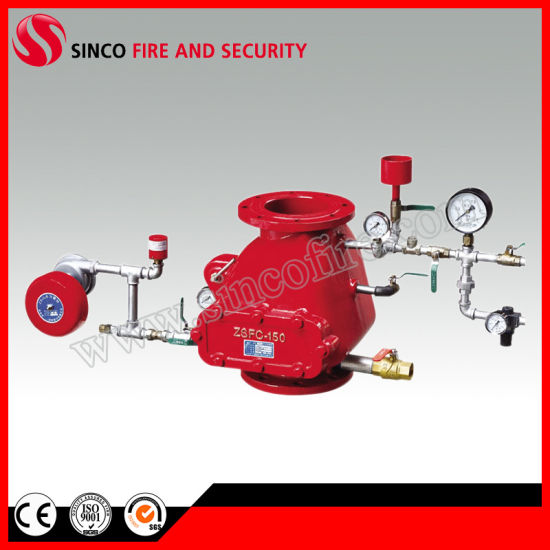

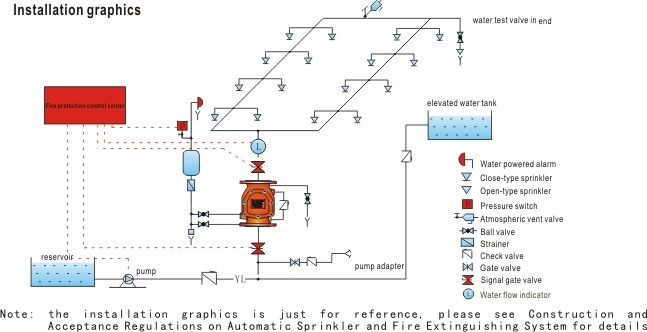

ZSFC dry alarm valve, which is applicable in low temperature environment, is the control valve of dry type sprinkler system. The pipes are charged with gas that generates certain pressure to not only monitor and test the leakproofness but also make the valve keep close. When sprinklers open and the pressure in the pipes reduces to a designed degree, the valve opens, then water runs into the pipimg system and sprays from the sprinklers to extinguish the fire.

Technical parameters
Model Size Working Pressure Height flange outer diameter PCD Size Flange Hole Install Size
(LXWXH)
ZSFC-100 DN100 1.2Mpa 335mm 215mm 180mm 8 x 18mm 675x499x502mm
ZSFC-150 DN150 1.2Mpa 380mm 280mm 240mm 8 x 22mm 742x718x540mm
ZSFC-200 DN200 1.2Mpa 460mm 335mm 295mm 12 x 22mm 775x875x600mm
