Closed Type High Pressure Water Mist Spray Nozzle

Quantity:



Inquire Add to Basket

Port:
Xiamen, China
Production Capacity:
10000pieces/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Model NO.:
XSWT1.0/10
Material:
Stainless Steel
Color:
Sliver
Inch Size:
M18*1.5
Thread Type:
BSPT/NPT
Working Pressure:
10MPa
Capacity:
5~21L/Min
Droplet Size:
Less Than 100um
Spray Tips:
5 Tips, 6 Tips or 7 Tips or Other
Trademark:
OEM
Transport Package:
Standard Export Package
Specification:
M18*1.5
Origin:
Fujian
HS Code:
8424909000
Sprinkler Installation:
Ordinary
Sprinkler Head Type:
Closed/Open
Automatically Opened and Closed Repeatedly:
Can Automatically Opened and Closed
Open Fire Sprinkler System Type:
Deluge System
Nozzle Flow Coefficient:
5-21L/Min
Deluge Valve Type:
Diaphragm Type

Product Description

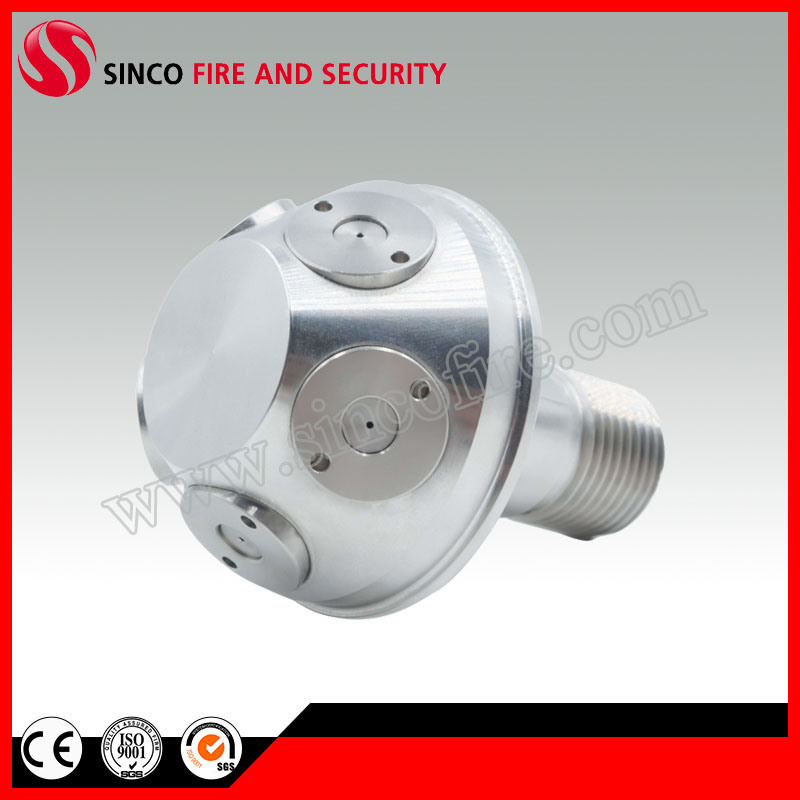

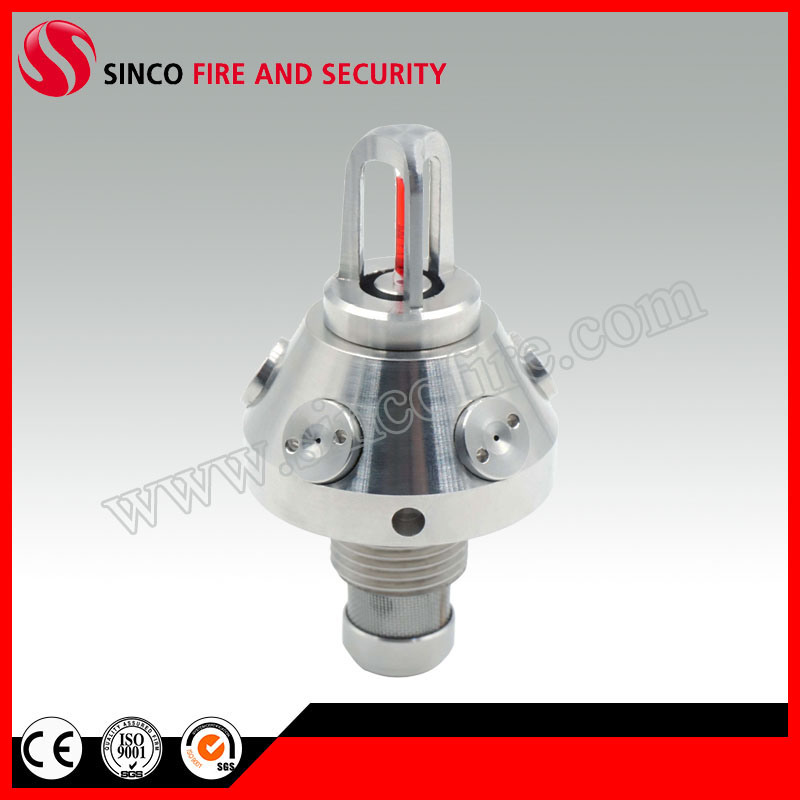

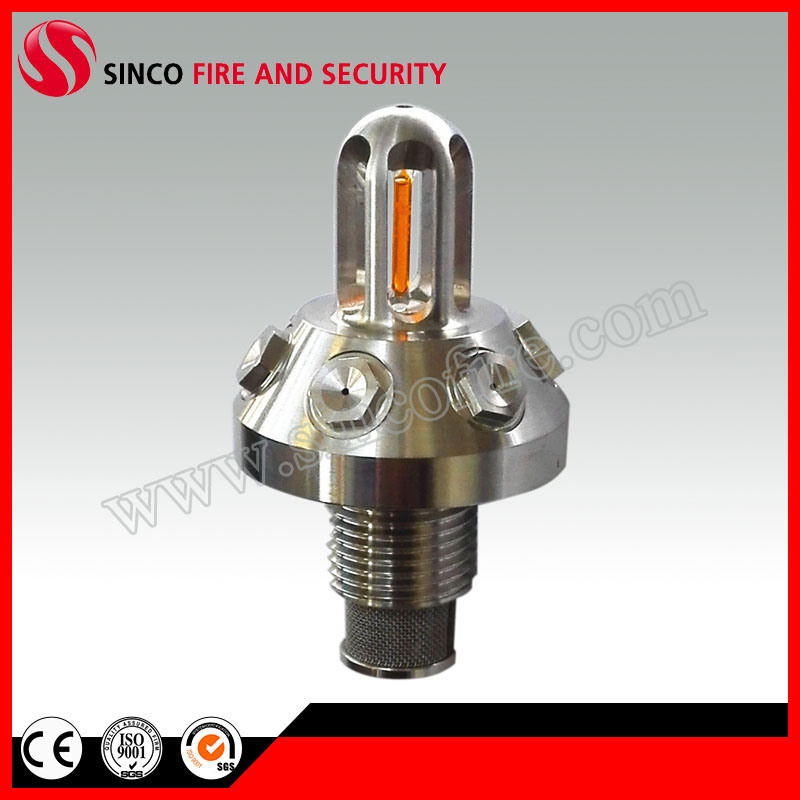

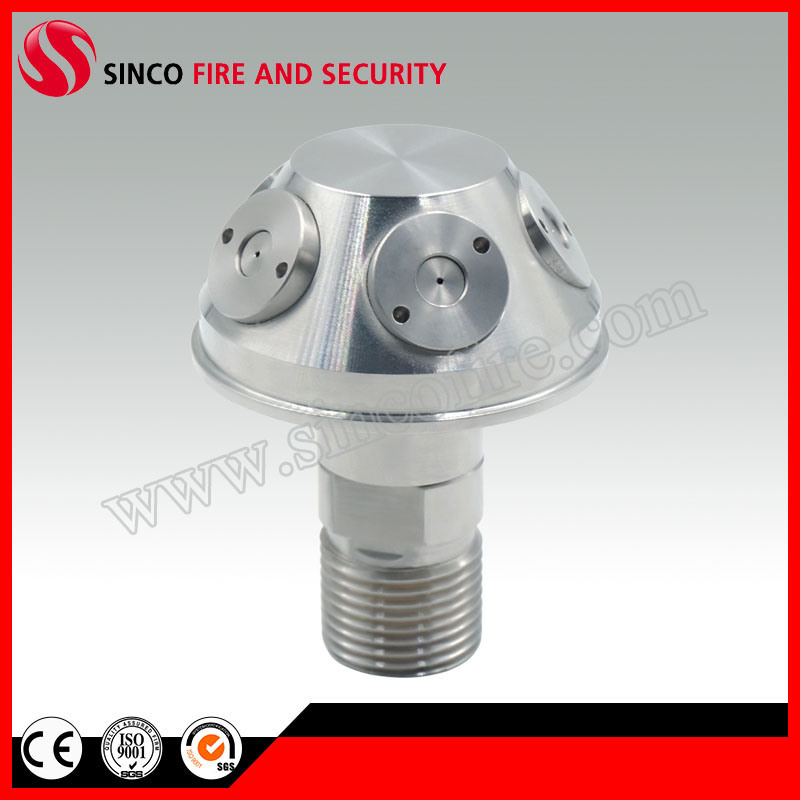

Closed type high pressure water mist spray nozzle

Introduction
High Pressure Water Mist System is composed of pump unit, nozzle, valve unit and stainless steel pipe, etc. The working pressure is set to 10Mpa. The system has linkage to the automatic alarm system. It is responsive, stable in flow rate, uniform in water mist, easy for maintenance, has excellent extinguishment characteristics and price/performance ratio.
Design Features qiao

Very fine droplet size, Class I water mist
Major parts include nozzle body, nozzle tips, whirl core, spray orifice, strainer mesh
High spray momentum, good ability for penetration of fire
Very fine atomizing droplets, Good dispersion effect
Fog-like droplets remain in air for long time

Spray Characteristics

Spray pattern: Full Cone
Spray angles: 120°(other angles optional)
Operating pressure:10~14Mpa
Strainer: 40 mesh, 120 mesh, 200 mesh
Class I water mist: Dv0.5≤100μ, Dv0.99<200μ
K-factors of open type: 0.17, 0.45, 0.95, 1.34, 2.04, 1.19, 1.87.
K-factors of closed type: 1.25, 1.68, 2.04, others can be customized.

Technical parameters

Thread type	BSPT OR NPT. CAN BE CUSTOMIZED!
Material	303SS, 316SS
Certificates	ISO 9001, ISO14001, Bureau Veritas
Nozzle pattern	Closed or open
Inch size	M18*1.5
Nozzle Number	5 or 6
Capacity	5-21 L/min
Droplet Size	≤100μm
K-factor	0.17~2.04
Working Pressure	10Mpa
Application	Fire fighting, Fire production
