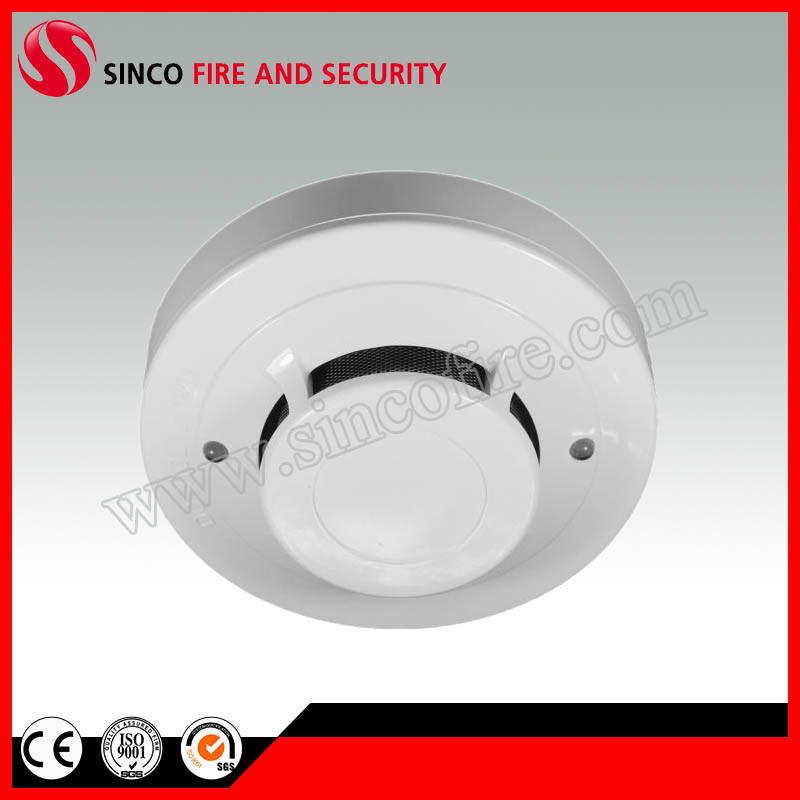

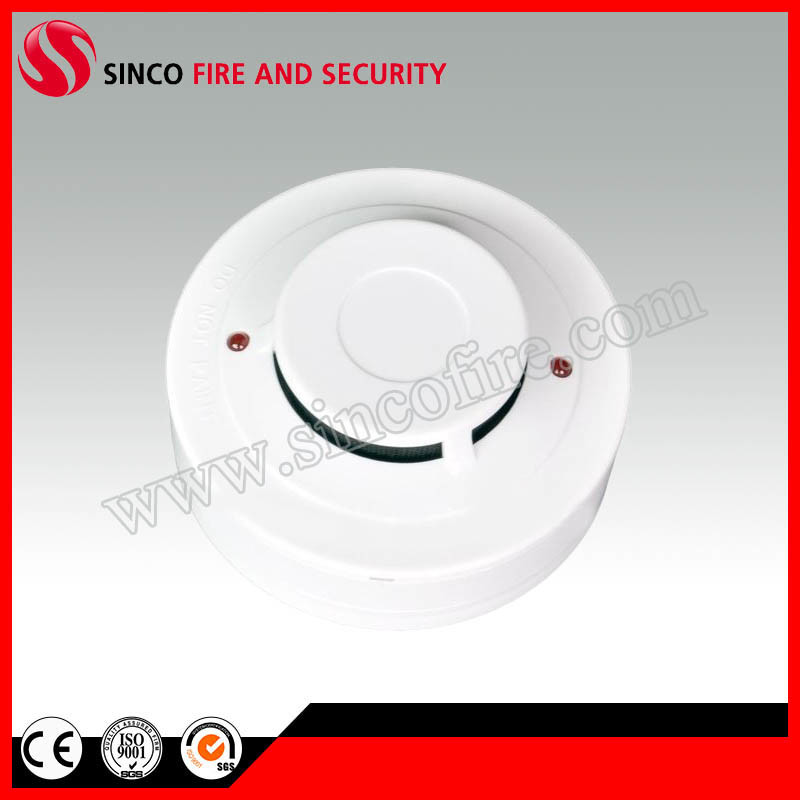

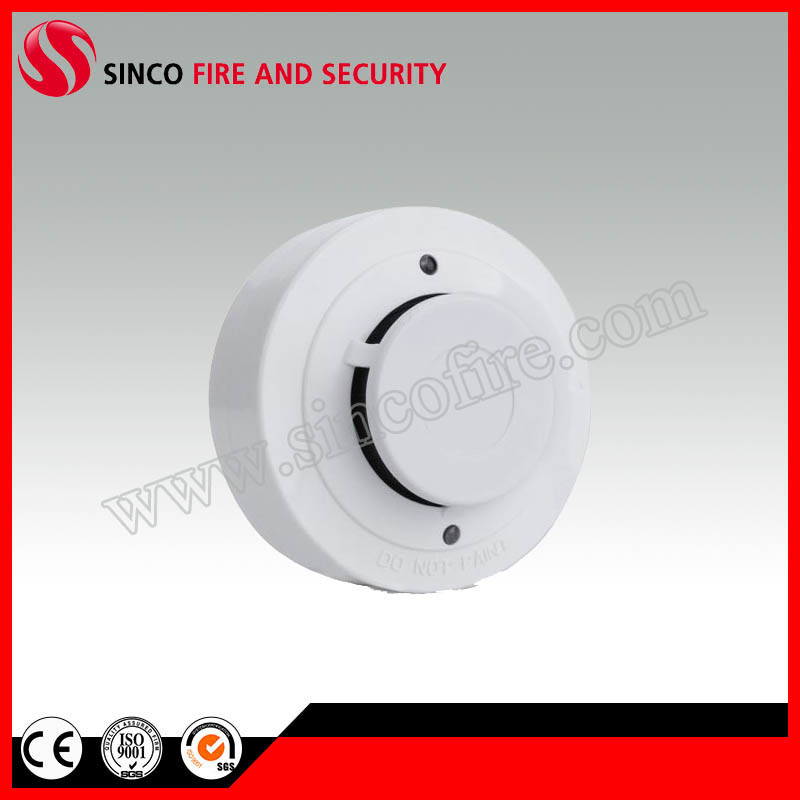

Conventional Photoelectric Smoke Detector for Fire Alarm Control Panel

Quantity:
  • Xiamen, China
  • 10000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • CSD001
  • 24V
  • 2 Wires
  • Ce/ISO
  • OEM
  • Standard Export Package
  • Fujian
  • 8531100000
  • Smoke Detectors
  • Active
  • Smoke Alarms
  • Point Control Alarm Detectors
  • Power Detector
  • Photoelectric Smoke Style
Conventional Photoelectric Smoke Detector for Fire Alarm Control Panel
Conventional Photoelectric Smoke Detector for Fire Alarm Control Panel
Conventional Photoelectric Smoke Detector for Fire Alarm Control Panel
Conventional Photoelectric Smoke Detector for Fire Alarm Control Panel


Introduction
The detectors are photoelectric detector which use a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.


Specification
Operating Voltage Range 9 to 28 VDC Volts Non-polarized
Standby Current ≤120μA@24VDC
Maximum Alarm Current (LED on) ≤15mA@24VDC
(1K Ohm current-limiting resistance)
Operating Humidity Range ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing
Operating Temperature Range -10°C to 50°C (14°F to 122°F)
Smoke Alarm Sensitivity 1.06±.26%FT
Fix temperature Alarm 57°C (135°F) A1R
Rate of rise Alarm 7.1°C/5S A1R
Height 48.2 mm installed in Base
Diameter 99.45 mm
