Deluge Valve

Model: ZSFM50-ZSFM300
Body material: Ductile Cast iron/ Stainless steel
Norminal Diamter: 2"-12"
Working pressure: 1.2Mpa-1.6Mpa
  • ZSFM
  • S-DV-01

Deluge Valve

ZSFM Diaphragm Reset Type Deluge Alarm Valve  which is based on GB5135.5-2003 standard shows lever type structure and has the anti-returning function. The valve is widely used in open sprinkler system, for instance, deluge system, water curtain system, water mist system. The deluge valve starts when the pressure in the diaphragm is released then the pressure of the water supplying side pushes open the valve clack. To release the pressure in the diaphragm, there are quite some ways,such as electric conduct, wet type conduct, dry type conduct.

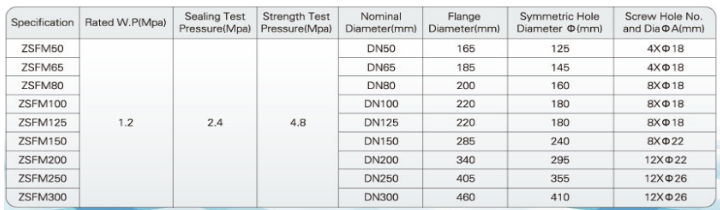

Specification of deluge valve.png
