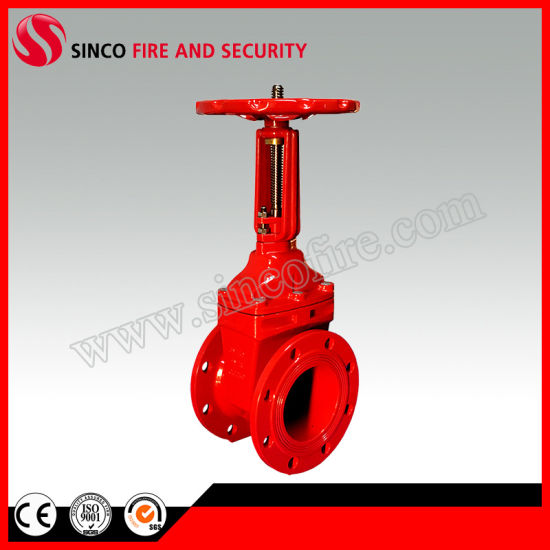

EPDM Rubber Coated Wedge Rising Stem Resilient Seat Gate Valve (Z41X) Introduction The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids for sump pump. Specification

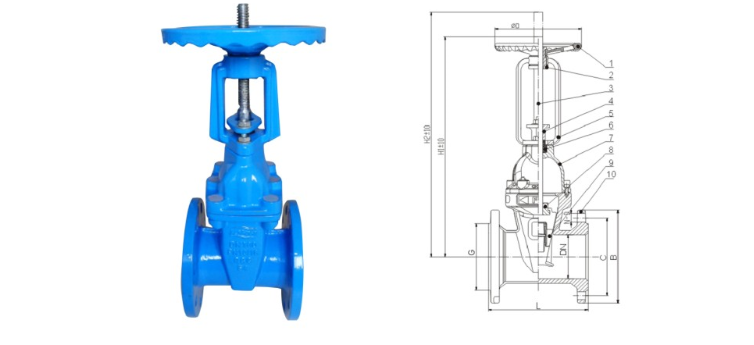

|Materials of major parts: |
|No. ||Part ||material |
|1 ||Body ||Ductile cast iron |
|2 ||Disc ||Ductile cast iron packed with NBR |
|3 ||Bolt ||Carbon Steel/Stainless Steel |
|4 ||Bonnet Gasket ||EPDM/NBR |
|5 ||Bonnet ||Ductile cast iron |
|6 ||Stem ||Stainless Steel |
|7 ||O-ring ||EPDM/NBR |
|8 ||Thrust bearing ||Brass |
|9 ||Gland ||Ductile cast iron |
|10 ||Dust proof gasket ||EPDM/NBR |
|11 ||Hand wheel ||Ductile cast iron |
Other Fire Fighting Equipment
We could supply fire hose, fire hose fittings, spray nozzle, coupling, automatic fire sprinkler system products, gate valves, check valves, ball valves, etc. All these products strictly confirming to JIS, API ans BS standards. All of our products comply with international quality standards and are greatly appreciate in avariety of markets around world. Our factory is covering an area of 15900 square meters, we now over 300 workers. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarteen total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a globe sales network reaching the North America, South America, Mideast, Southeast Asia, East Europe, etc.
1. Could you supply the samples?
Free samples always ready if the value is within our purview.
2.Do you have the MOQ?
For conventional products, Low MOQ.
3. Can you add some logo on the products?
Yes. We could OEM and design your logo.
4. Are you able to design or explore a new products for us?
Yes, we are able to, if the clients could supply the drawings or samples.
