Esfr-17 K16.8 Early Suppression Fast Response (ESFR) Sprinklers

Quantity:



Inquire Add to Basket

Port:
Xiamen, China
Production Capacity:
2000pieces/Week
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Model NO.:
ESFR
Connecting Thread:
3/4",1"
Thread Standard:
NPT/BSPT
Norminal Diameter(mm):
Dn20/Dn25
Material:
Brass
Surface Finish:
Natural Brass
Temperature Rating:
74 Degree
Response:
Fast Response
K-Factor:
16.8/25.2
Working Pressure:
0.1~1.2MPa
Application:
High-Piled Storage/in-Rack Storage/Warehouse
Trademark:
SINCO/OEM
Transport Package:
Standard Export Package
Specification:
3/4" 1"
Origin:
Quanzhou, Fujian
HS Code:
8424
Sprinkler Installation:
Upright/Pendent
Sprinkler Head Type:
Closed
Alarm Valve Type:
Wet Alarm Valve
Automatically Opened and Closed Repeatedly:
Can′t Automatically Opened and Closed
Closed Fire Sprinkler System:
Wet Fire Sprinkler System
Nozzle Flow Coefficient:
242L/Min,363L/Min

Product Description

ESFR-17 K16.8 Early Suppression Fast Response (ESFR) sprinklers
Introduction
ESFR,early suppression fast response spinkler is one kind of storage sprinklers. They are intended for use in specific applications, including the protection of high-piled and rack storage of a variety of finished goods. There sprinklers can provide more water at lower pressures or more water over a greater area of coverage. In many instances, use of the storage sprinklers can eliminate the need for additional in-rack sprinklers. It could be used for high-piled storage, in-rack storage, warehouse, high challenge occupancies and so on.
ESFR-17 K16.8 Early Suppression Fast Response (ESFR) sprinklers are particularly useful for eliminating in-rack sprinklers for high-piled storage.
Particularly useful for protecting the storage of:
1. Encapsulated or non-encapsulated common materials, such as cartoned, unexpanded plastics
2. Cartoned, expanded plastics
3. Storage arrangements of rubber tires and rolls of paper

Technical parameters

Type	Early Suppression Fast Response (ESFR U/ESFR P)
Material	Brass
Surface finish	Natural brass
Operating Temperature	74 ºC
Thread diameter	3/4" NPT/BSPT (DN20)	1" NPT/BSPT (DN25)
Flow characteristic coefficient	241L/min(K=16.8)	362L/min(K=25.2)
Celling height	Greater than 45ft(13.7m) up to and including 48ft(14.6m), and a storage arrangement up to and including 43ft(13.1m)
Certificates	ISO, UL
Max working pressure	0.1~1.2Mpa (1~12 bar)
Factory Hydrostatic Test	100%, 3.0Mpa

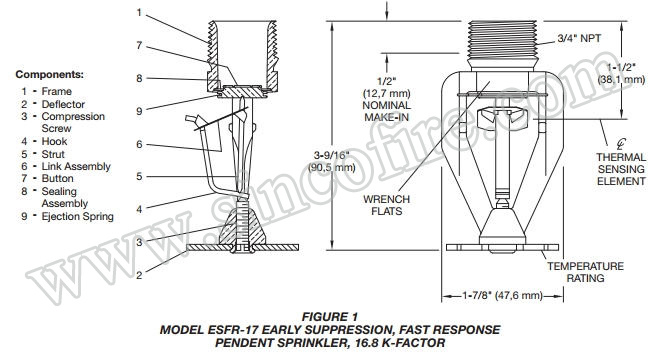

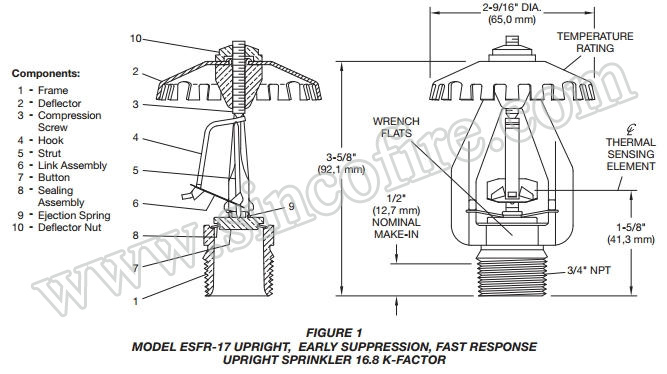

Photoes

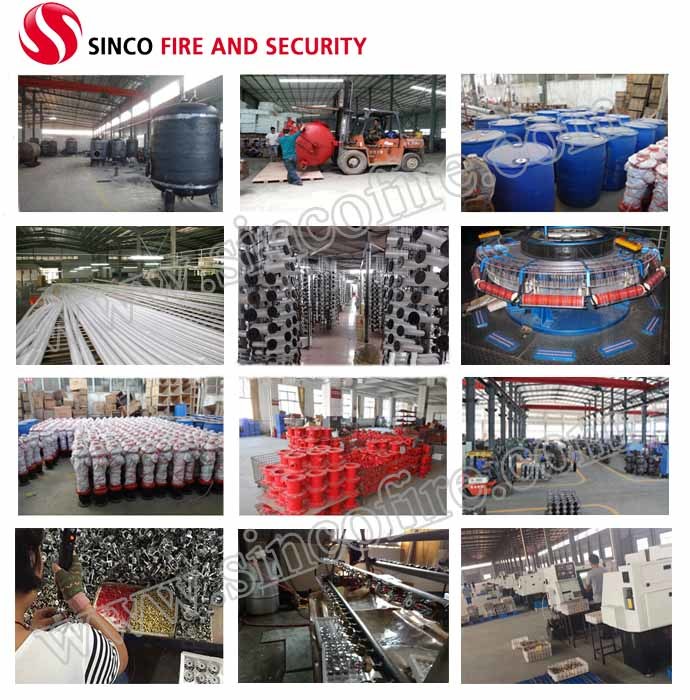

Factory workshop
