FM Approved Flexible Sprinkler Head Fire Sprinkler Drops

Quantity:
  • Xiamen, China
  • 100000PCS/Week
  • L/C, T/T, D/P, Western Union, Paypal
  • 610mm-1820mm
  • 24" 28" 40" 48" 60" 67"
  • 1" NPT
  • 1/2" 3/4"
  • Braided/Unbraided
  • Stainless Steel 340
  • Inc-Plated Steel
  • 175 Psi
  • 225 Fahrenheit Degree
  • SINCO
  • Standard Export Package
  • 700mm, 1000mm, 1220mm, 1520mm, 1700mm, 1820mm
  • Fujian
  • 8424899990
  • Upright/Pendent
  • Closed
  • Wet Alarm Valve
  • Can′t Automatically Opened and Closed
  • Wet Fire Sprinkler System
  • Seat Type
FM Approved Flexible Sprinkler Head Fire Sprinkler Drops

Advantage
1.Fast and easy installation (no pipe cutting, measuring, threading, or welding)
2.Save time!
3.Less risk of water leakage
4.No corrosion - 100% stainless steel
5.Can be installed without machines and power tools

Certificate
1.National Fire Protection Association (NFPA)
2.American Society for Testing and Methods (ASTM)
3.Factory Mutual (FM), FM Class No, 1637:
4.Underwriter's Laboratories, Inc. (UL), UL 2443:

Specification
Lengths 24" 28" 40" 48" 60" 67"
Outlet Reducers 1/2" 3/4"
Types Braided / Unbraided
Hose/ Braid Stainless Steel 304
Nut & Nipple Zinc-Plated Steel
Sealing Gasket / Isolation Ring EPDM / NYLON

Technical Date
Max. Temp. 225ºF
Operating Pressure 175 psi
Connections Inlet 1" NPT
Outlet 1/2" 3/4"
Min. Bend Radius 4"(UL) / 8"(FM)
K-Factors 1/2" Outlet 5.6
3/4" Outlet 8.0

Photoes

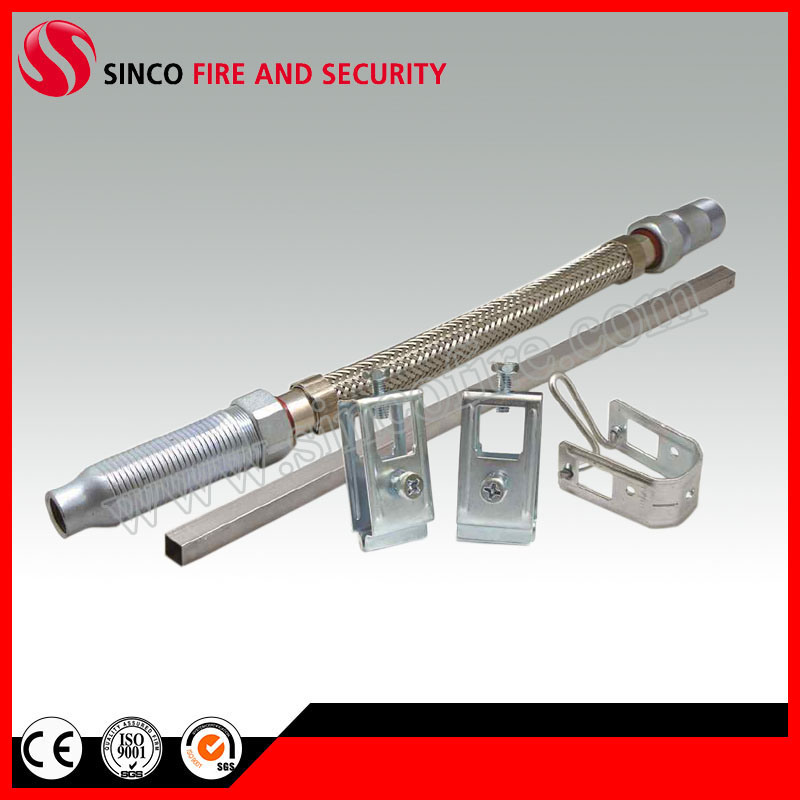

FM Approved Flexible Sprinkler Head Fire Sprinkler Drops

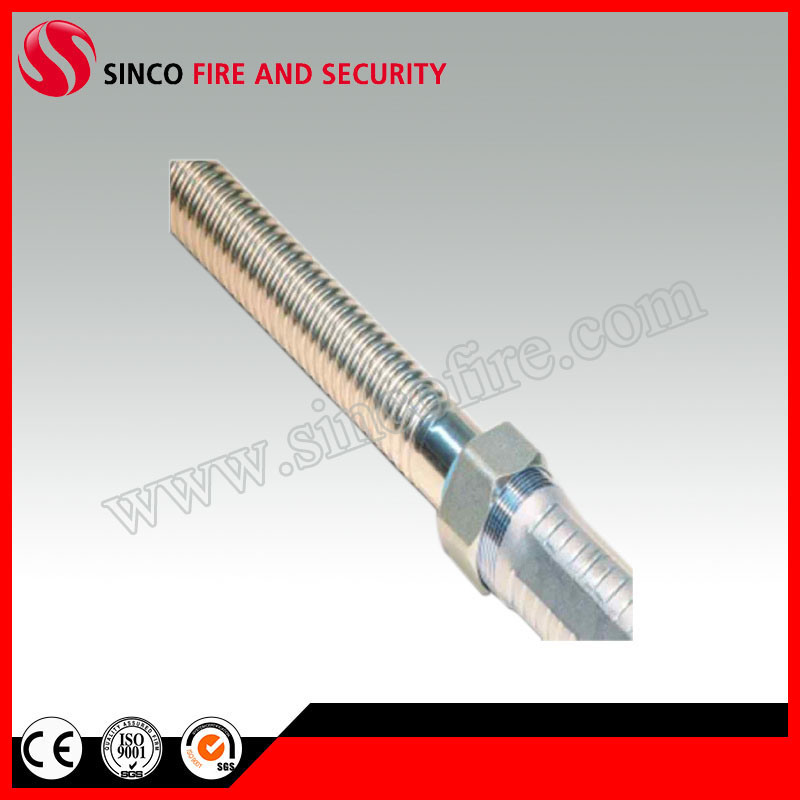

FM Approved Flexible Sprinkler Head Fire Sprinkler Drops

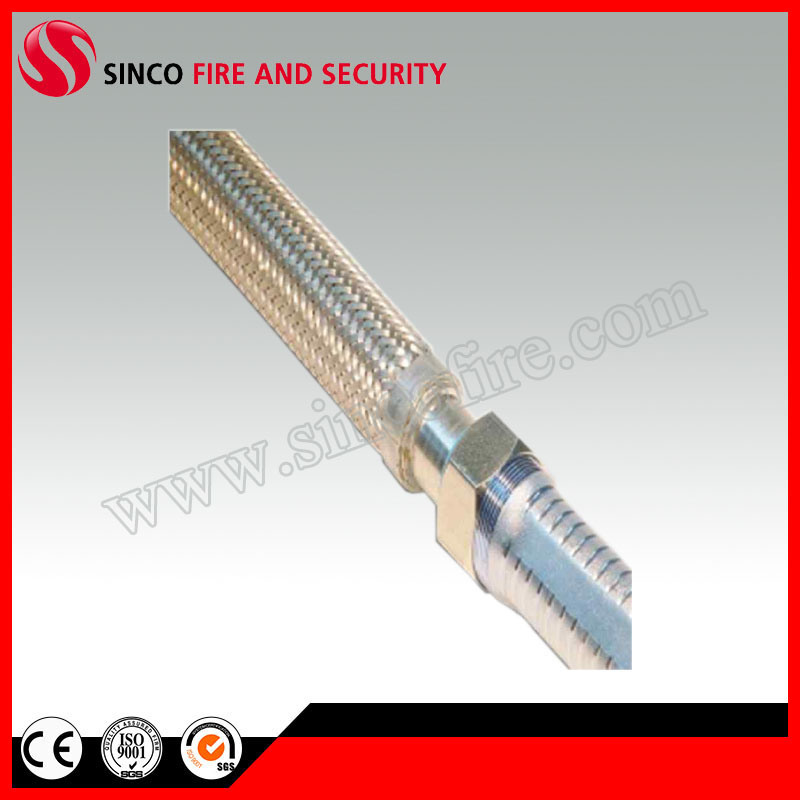

FM Approved Flexible Sprinkler Head Fire Sprinkler Drops

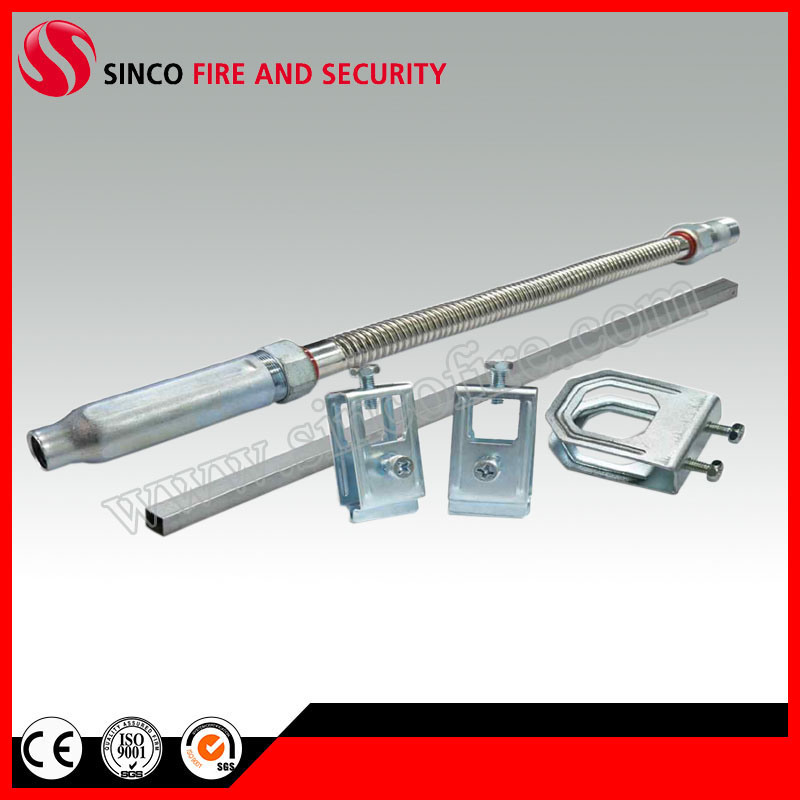

FM Approved Flexible Sprinkler Head Fire Sprinkler Drops
