Xiamen, China
4900 Sets Per Month
L/C, T/T, D/P, Western Union, Paypal
DN40-DN300
Normal Temperature (-40°C<T<120°C)
Soft Sealed
Casting
Industrial Usage, Water Industrial Usage, Household Usage
Ductile Iron/Stainless Steel
Ductile Iron
Stainless Steel
Epoxy Coated
Pn10/16
None/OEM
Standard Export Package
DN40-DN600
Fujian
8481801090
Manual
Wafer
Centre Sealing
Force Sealed
Normal
Low Pressure (Pn<1.6mpa)
No. | Part | Material |
1 | Body | Ductile Iron |
2 | Disc | DI/SS/Bronze |
3 | Stem | SS304/316 |
4 | O-ring | EPDM/NBR/VITON |
5 | Seat | EPDM/PTFE |
6 | Bushing | PTFE/Bronzel |
7 | Hand Wheel | Cast Iron |
8 | Worm Gear | Cast Iron |

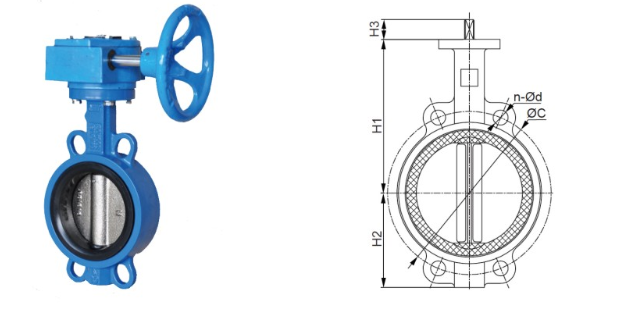

DN | L | L1 | Φ | H1 | H2 | H3 | N | Φ3 |
40 | 42 | 250 | 110 | 66.5 | 142 | 26 | 4 | 18 |
50 | 42.3 | 260 | 125 | 66.5 | 142 | 26 | 4 | 18 |
65 | 43.3 | 280 | 145 | 74.1 | 151 | 26 | 4 | 18 |
80 | 45.6 | 284 | 160 | 94 | 161 | 26 | 4 | 18 |
100 | 50.6 | 357 | 180 | 110.8 | 181 | 26 | 4 | 18 |
125 | 53.6 | 374 | 210 | 128.8 | 191 | 28 | 4 | 18 |
150 | 54.4 | 374 | 240 | 140.5 | 204 | 28 | 4 | 22 |
200 | 59.6 | 384 | 295 | 172.5 | 238 | 29 | 4 | 22 |
250 | 65.4 | 384 | 350 | 206.2 | 268 | 29 | 4 | 22/26 |
300 | 75 | 537 | 400 | 235.8 | 306 | 30 | 4 | 22/26 |
No. | Part | Material |
1 | Body | Ductile Iron |
2 | Disc | DI/SS/Bronze |
3 | Stem | SS304/316 |
4 | O-ring | EPDM/NBR/VITON |
5 | Seat | EPDM/PTFE |
6 | Bushing | PTFE/Bronzel |
7 | Hand Wheel | Cast Iron |
8 | Worm Gear | Cast Iron |
DN | L | L1 | Φ | H1 | H2 | H3 | N | Φ3 |
40 | 42 | 250 | 110 | 66.5 | 142 | 26 | 4 | 18 |
50 | 42.3 | 260 | 125 | 66.5 | 142 | 26 | 4 | 18 |
65 | 43.3 | 280 | 145 | 74.1 | 151 | 26 | 4 | 18 |
80 | 45.6 | 284 | 160 | 94 | 161 | 26 | 4 | 18 |
100 | 50.6 | 357 | 180 | 110.8 | 181 | 26 | 4 | 18 |
125 | 53.6 | 374 | 210 | 128.8 | 191 | 28 | 4 | 18 |
150 | 54.4 | 374 | 240 | 140.5 | 204 | 28 | 4 | 22 |
200 | 59.6 | 384 | 295 | 172.5 | 238 | 29 | 4 | 22 |
250 | 65.4 | 384 | 350 | 206.2 | 268 | 29 | 4 | 22/26 |
300 | 75 | 537 | 400 | 235.8 | 306 | 30 | 4 | 22/26 |
