Fire Foam Water Monitor for Fire Engines

Quantity:
  • Xiamen, China

  • 200 Sets/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • PL

  • 3"(80mm)/4"(100mm)

  • Water,Foam Mixture

  • Manual/Electric

  • SINCO or OEM

  • Standard Export Package

  • PS20-PS80/PL24-PL64

  • Quanzhou, Fujian

  • 8424

  • Ductile Iron/Aluminum Alloy/Stainless Steel

  • 0.8-1.2MPa

  • Above 48m~80m

  • 20L/S~80L/S

  • -70~70 Degree

  • 0~360 Degree

Fire Foam Water Monitor for Fire Engines

Introduction
Manual Fire Monitor has characteristic with adjustable flow rate, distant range and wide discharging range and the discharge range is also adjustable-----have both straight stream and fog stream. Manual fire monitor can be installed in the places of flammable or explosive chemical circumstance, airport, oil area, oil transport wharf, shipyard etc. It is an efficient equipment for putting out fire, and it is also can be fixed on fire vehicles.
Technical parameters
Model PS20 PS30 PS40 PS50 PS60 PS70 PS80
L/S 20 30 40 50 60 70 80
Working Pressure(Mpa) 0.8 0.8 0.8 0.8 0.9 0.9 0.9
Max Working Pressure(Mpa) 1.0 1.0 1.0 1.0 1.2 1.2 1.2
Flange Connection(mm) DN80 DN80 DN80 DN80 DN100 DN100 DN100
Water Jetting Range(m) ≥ 48 ≥ 55 ≥ 60 ≥ 65 ≥ 70 ≥75 ≥80
Horizontal Angle (Degree) 0-360 0-360 0-360 0-360 0-360 0-360 0-360
Max Angle Of Elevation (Degree) 70 70 70 70 70 70 70
Max Angle Of Depression (Degree) -70 -70 -70 -70 -70 -70 -70
Model PL24 PL32 PL48 PL64
Flow Range(L/S) 24 32 48 64
Working Pressure(Mpa) 1.0 1.0 1.0 1.2
Max Working Pressure(Mpa) 1.2 1.2 1.2 1.6
Flange Connection(mm) DN80 DN80 DN80 DN80
Water Jetting Range(m) ≥ 48 ≥ 50 ≥ 60 ≥ 65
Horizontal Angle (Degree) 0-360 0-360 0-360 0-360
Max Angle Of Elevation (Degree) 70 70 70 70
Max Angle Of Depression (Degree) -70 -70 -70 -70

Photoes

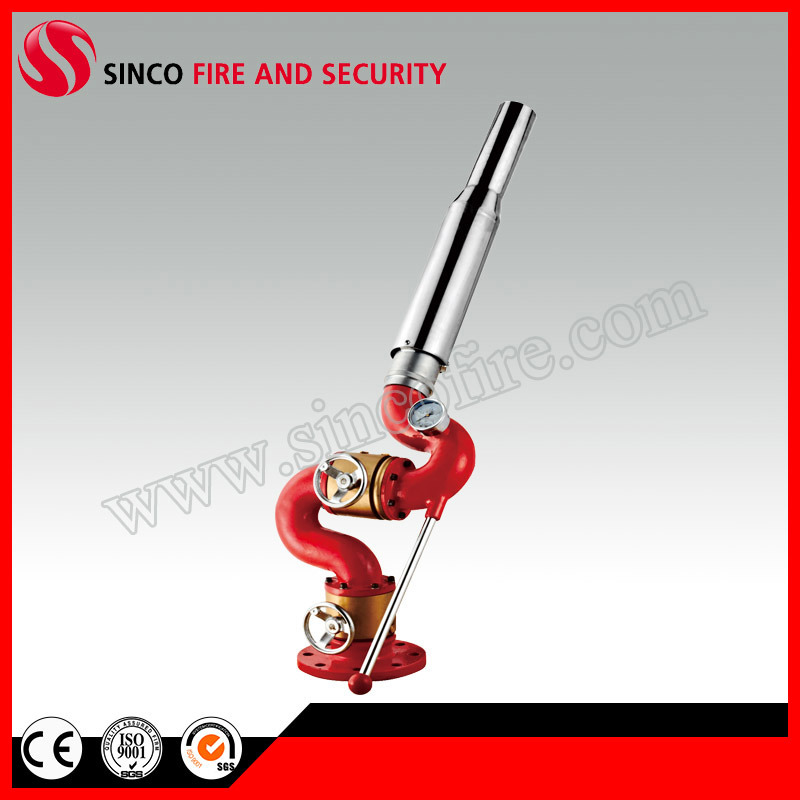

Fire Foam Water Monitor for Fire Engines

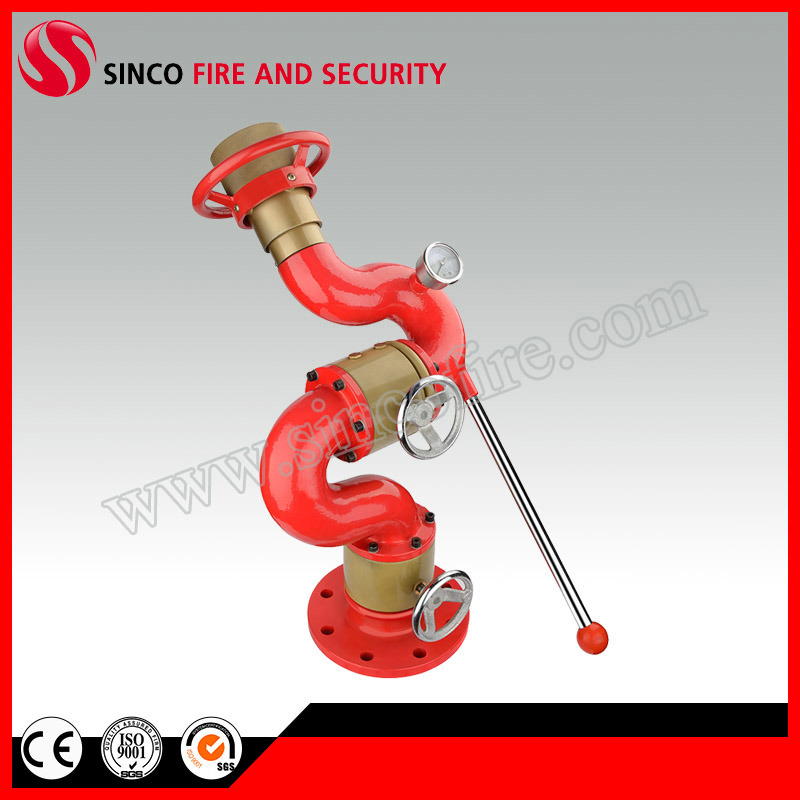

Fire Foam Water Monitor for Fire Engines

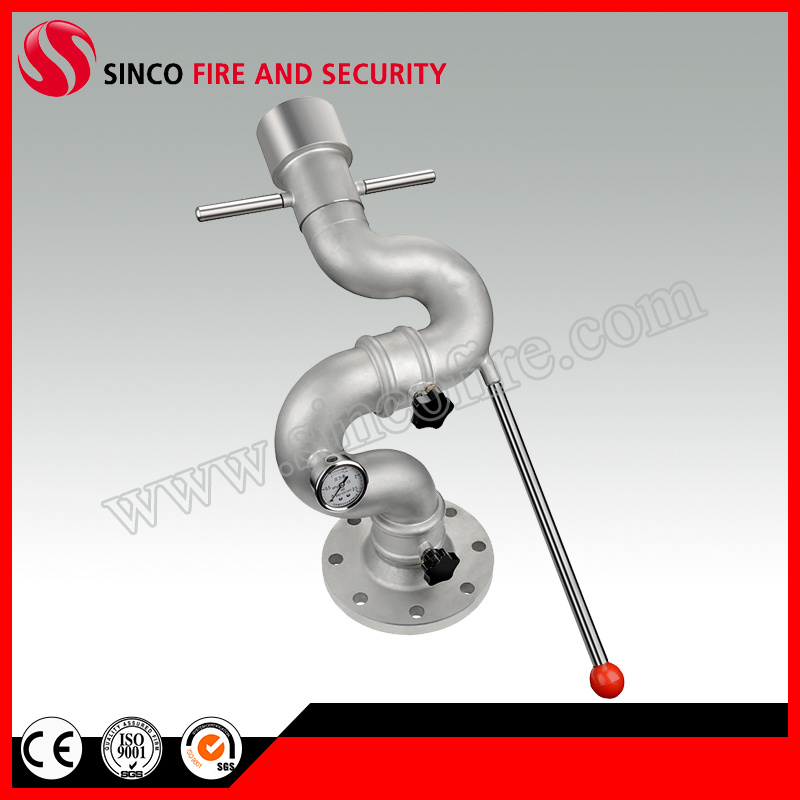

Fire Foam Water Monitor for Fire Engines

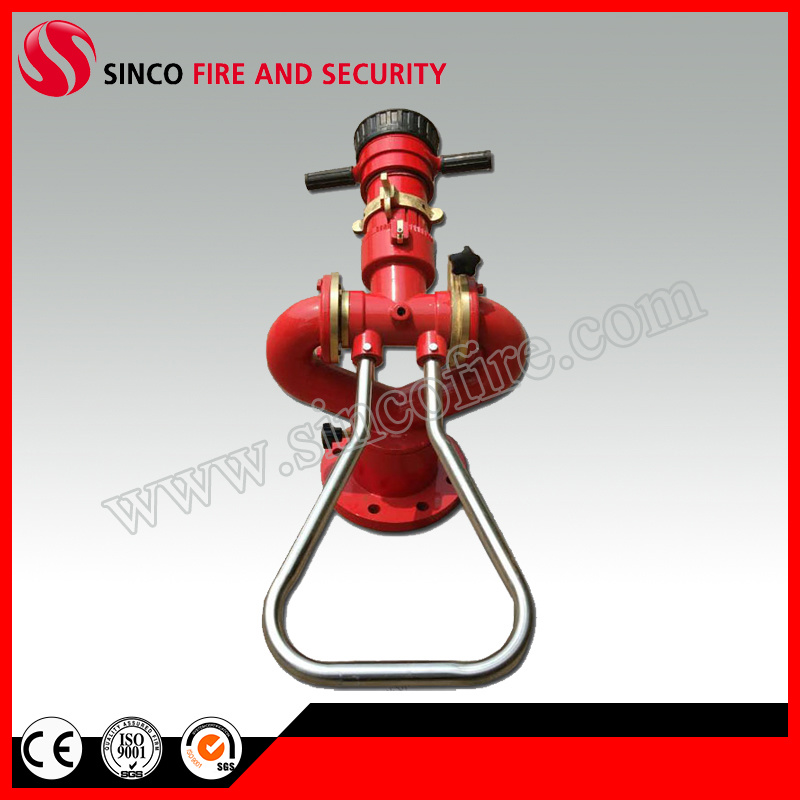

Fire Foam Water Monitor for Fire Engines
