Fire Sprinkler Escutcheon Recessed Plate

Quantity:
  • Xiamen, China

  • 50000pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • 1/2" 3/4"

  • for Recessed Pendent Fire Sprinkler

  • SINCO/OEM

  • Standard Export Package

  • 1/2" 3/4"

  • Fujian

  • 8424

  • 1/2" 3/4"

  • NPT/BSPT

  • 15mm/20mm

  • Stainless Steel/Stainless Iron

  • Chrome /White/Brass or Customized

  • Single/Double/Deep Two-Piece

Fire sprinkler escutcheon recessed plate
Introduction
  • Consists of a mounting plate and closure for finished appearance in ceilings or soffits.
  • Intended for use in areas with finished ceilings or walls, and the adjustment provided by these escutcheons reduces the accuracy to which fixed piping to the sprinklers must be cut, while providing a decorative recessed sprinkler installation.
  • Primarily designed for use with standard spray, quick response sprinklers and the designer residential sidewall sprinklers.
  • Maximum 1 ⁄ 2 " to 3 ⁄ 4 " NPT/BSPT adjustment.
  • Used to improve the overall appearance of the sprinkler installation by concealing the clearance holes required for wall or ceiling installation
  • Deep, two-piece, adjustable
  • 3 ⁄ 4 " NPT total adjustment
Specification
Name Fire sprinkler escutcheon recessed plate
Size 1/2" 3/4" NPT/BSPT
Material Stainless steel or stainless iron
Weight 30g or customized
Height 27 mm or customized
Surface finished Chrome/ white/brass or customized
OEM Available

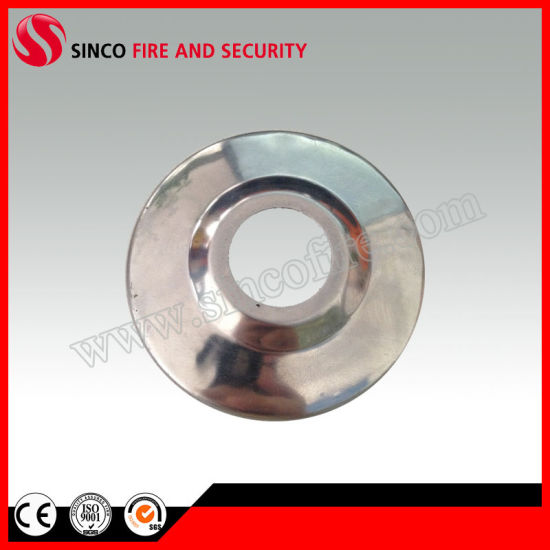

Photoes

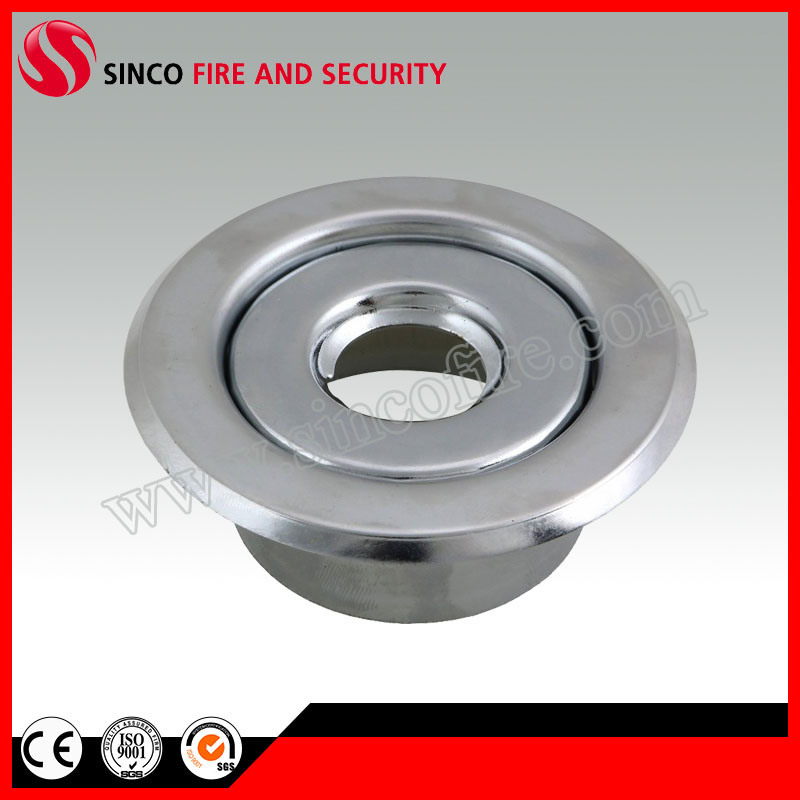

Fire Sprinkler Escutcheon Recessed Plate

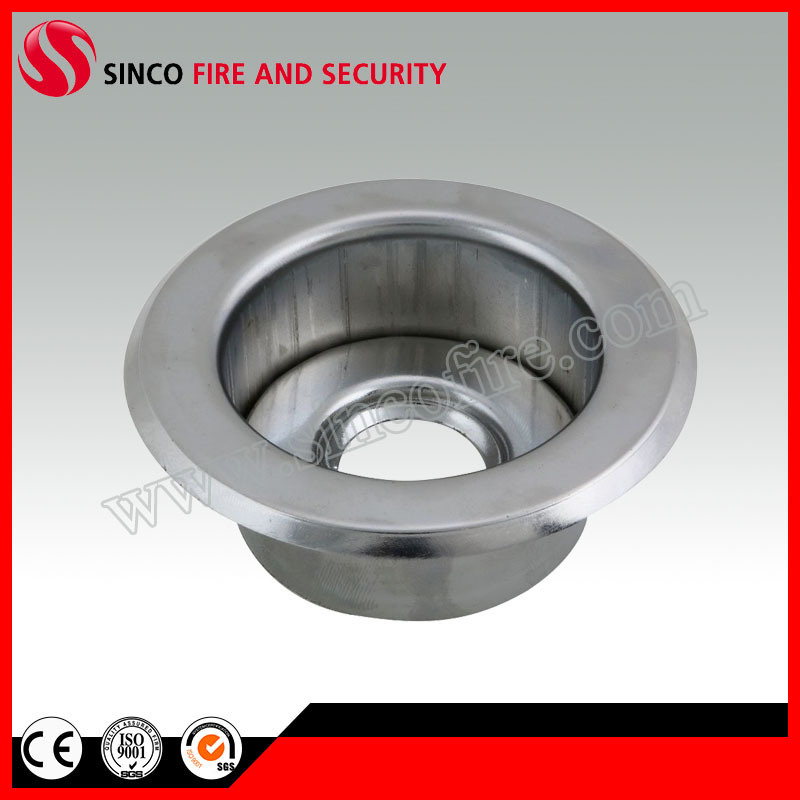

Fire Sprinkler Escutcheon Recessed Plate

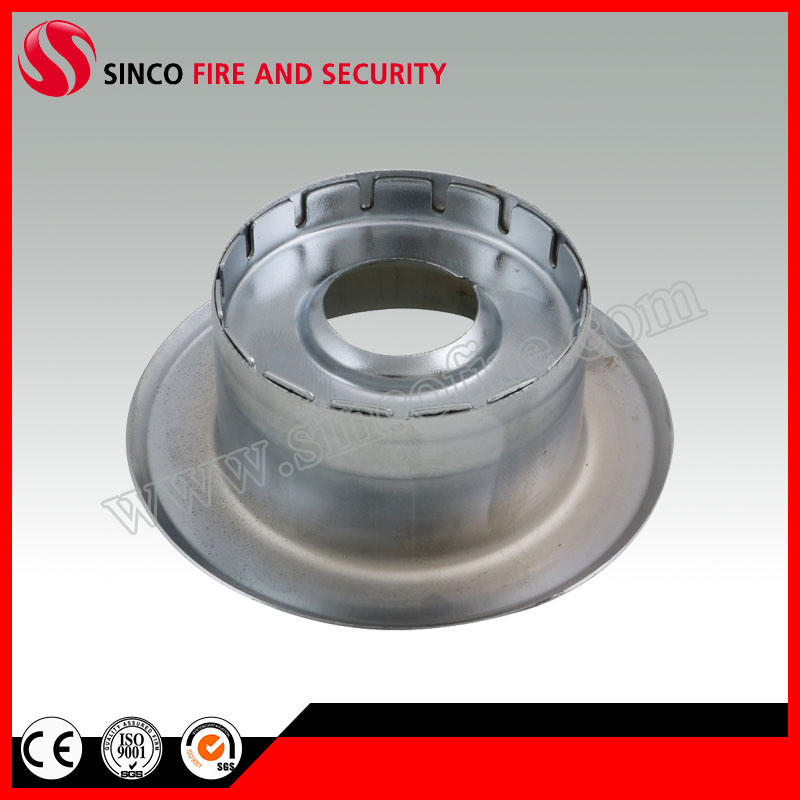

Fire Sprinkler Escutcheon Recessed Plate

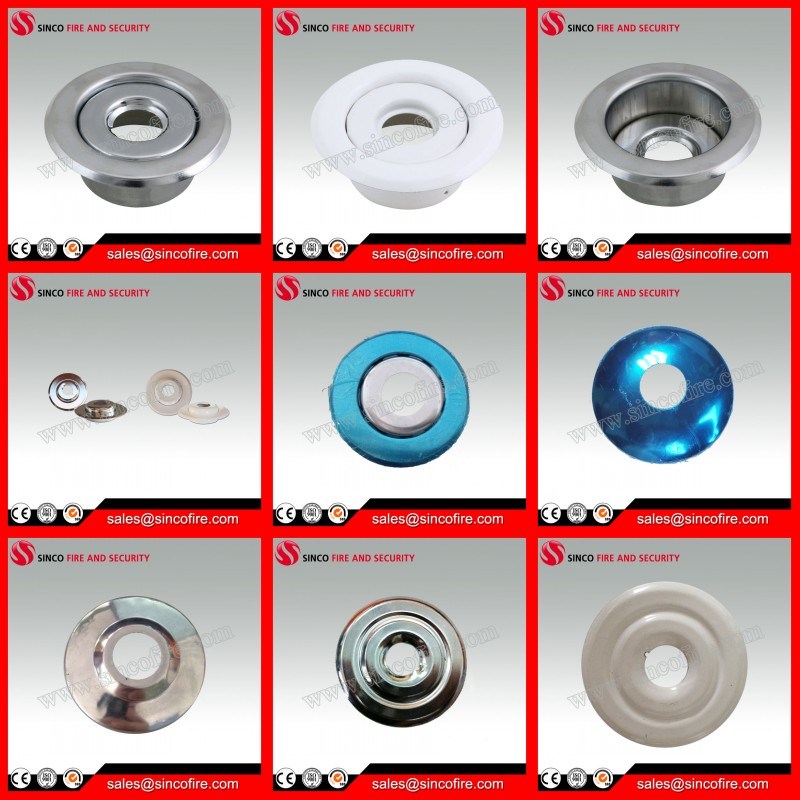

Fire Sprinkler Escutcheon Recessed Plate
