Fire Water System Nozzle for Fire Fighting

Quantity:
  • Xiamen, China

  • 150000pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • ZSTWB/ZSTWC

  • Enclosed Type

  • 16/21/27/34/42/53/68 L/Min

  • 15mm/20mm/25mm

  • Brass/Stainless Steel

  • Chrome/Natural Brass

  • 0.35MPa

  • 16/21/27/34/42/53/68/86 L/Min

  • 90 Degree to 180 Degree

  • Open Spray Fire Sprinkler System

  • SINCO/OEM

  • Standard Export Carton

  • 1/2"/3/4"/1"

  • Quanzhou, Fujian

  • 84249090

  • Upright/Pendent

  • Open

  • Deluge Valve

  • Can′t Automatically Opened and Closed

  • Deluge System

  • Dry Fire Sprinkler System

Fire Water System Nozzle for fire fighting


Description
Water mist nozzle, as the main part of the water mist system, is commonly used in the industrial places with flammable gas, liquid processing and storage. When acting, the water driven by pressure knocks around, revolves and stirs then ejects tiny water drops, shows good performance of cooling, smothering and electrical insulation, showing good performance of cooling, smothering and electrical insulation.
Technical parameters
Model Flow coefficient(K) Spraying angle Connect thread Type
ZSTWB-16-90 16 90° R1/2






Centrifugal
(High speed)
ZSTWB-16-120 16 120° R1/2
ZSTWB-21-90 21 90° R1/2
ZSTWB-21-120 21 120° R1/2
ZSTWB-27-90 27 90° R3/4
ZSTWB-27-120 27 120° R3/4
ZSTWB-34-90 34 90° R3/4
ZSTWB-34-120 34 120° R3/4
ZSTWB-42-90 42 90° R3/4
ZSTWB-42-120 42 120° R3/4
ZSTWB-53-90 53 90° R1
ZSTWB-53-120 53 120° R1
ZSTWB-68-90 68 90° R1
ZSTWB-68-120 68 120° R1
Model specification Flow coefficient Spraying angle Connect thread Type
ZSTWC-63-(90-180) 34 90°-180° R1/2 or R3/4 Impact
ZSTWC-80-(90-180) 43 90°-180° R1/2 or R3/4 Impact
ZSTWC-100-(90-180) 53 90°-180° R1/2 or R3/4 Impact
ZSTWC-160-(90-180) 86 90°-180° R1/2 or R3/4 Impact

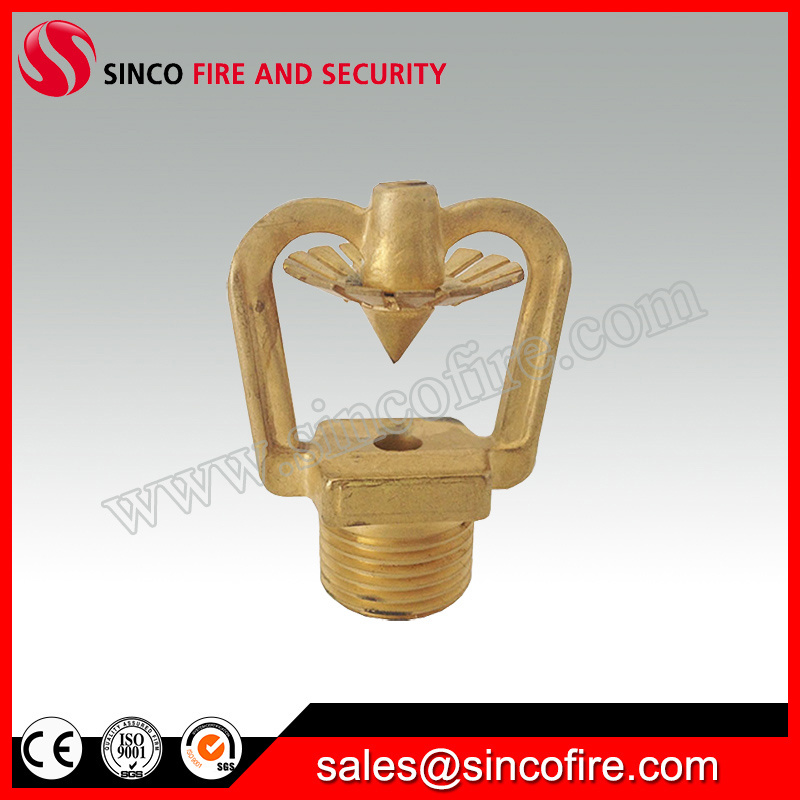

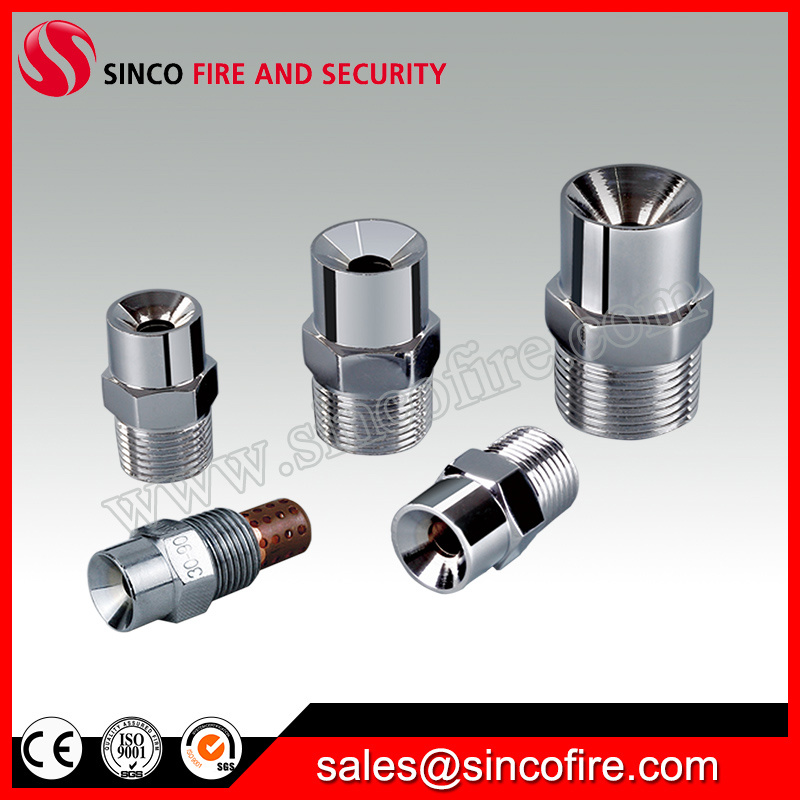

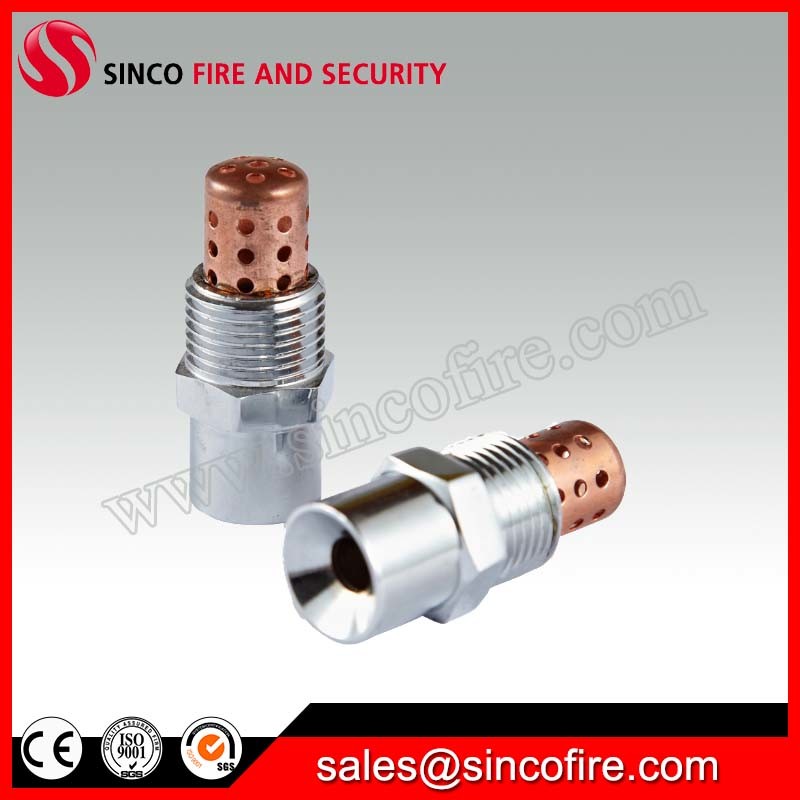

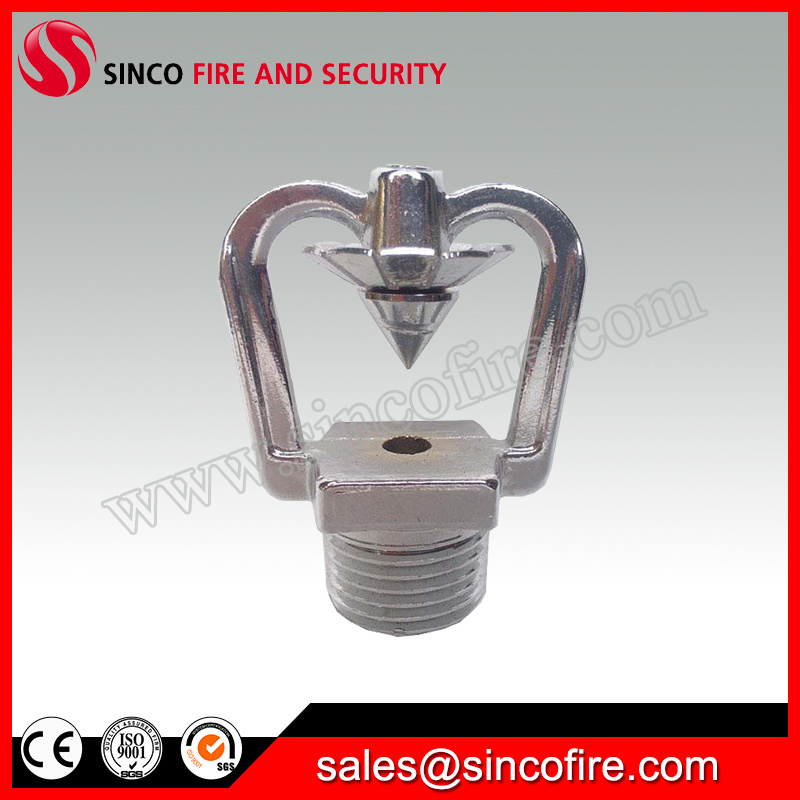

Photoes
Fire Water System Nozzle for Fire Fighting
Fire Water System Nozzle for Fire Fighting
Fire Water System Nozzle for Fire Fighting
Fire Water System Nozzle for Fire Fighting

Other Fire fighting Equipment
Fire Water System Nozzle for Fire Fighting
