Flange Type Water Flow Detector

Quantity:
  • Xiamen, China

  • 50000 Pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • ZSJZ

  • 1"-8"

  • 1.2MPa

  • Saddle/Thread/Flange/Weld

  • 5~90 Seconds

  • 15-37.5 L/Min

  • AC220V,5A/DC24V,3A

  • SINCO or OEM

  • Standard Export Package

  • 25mm-200mm

  • Quanzhou, Fujian

  • 9026100000

  • ISO, Cccf

  • New

  • Customized

  • Automatically Excluded

  • Ductile Iron

  • Standard Red Painting

Flange type water flow detector
Introduction
Water flow indicator is uesed in automatic water spray extinguishing system.they can be installed in main water supply pipe or brand pipe.then they deliver flow signals of one area,Signals can reach electric contronal box and also can be used for starting fire water pump control switch.
We makes all kinds of water flow indicator. There are with time circuit ZSJZ(A model) or without time delayer circuit ZSJZ(B model) ,are of seven specifications such as 50(2") 65(2-1/2") 80(3") 100(4") 125(5") 150(6") 200(8") to serve different pipes, connecting ways: pipe threaded, welding type,flanged type and saddle type for users' choice.
Technical parameters
Connection Type Saddle Type
Model ZSJZ/A
Nominal Diameter(mm) 50/65/80/100/125/150/200/250
Working Pressure(Mpa) 1.2 (12bar)
Delay Time(s) 2-90
Sensitivity(L/Min) 15~37.5
Contact Capacity AC220V,5A/DC24V,3A
Connection Type Flange Type
Model ZSJZ/F
Nominal Diameter(mm) 50/65/80/100/125/150/200/250
Working Pressure(Mpa) 1.2
Delay Time(s) 2-90
Sensitivity(L/Min) 15~37.5
Contact Capacity AC220V,5A/DC24V,3A
Connection Type Thread Type
Model ZSJZ/S
Nominal Diameter(mm) 50~150
Working Pressure(Mpa) 1.2
Delay Time(s) 2-90
Sensitivity(L/Min) 15~37.5
Contact Capacity AC220V,5A/DC24V,3A
Connection Type Welding Type
Model ZSJZ/H
Nominal Diameter(mm) 50/65/80/100/125/150/200/250
Working Pressure(Mpa) 1.2
Delay Time(s) 2-90
Sensitivity(L/Min) 15~37.5
Contact Capacity AC220V,5A/DC24V,3A

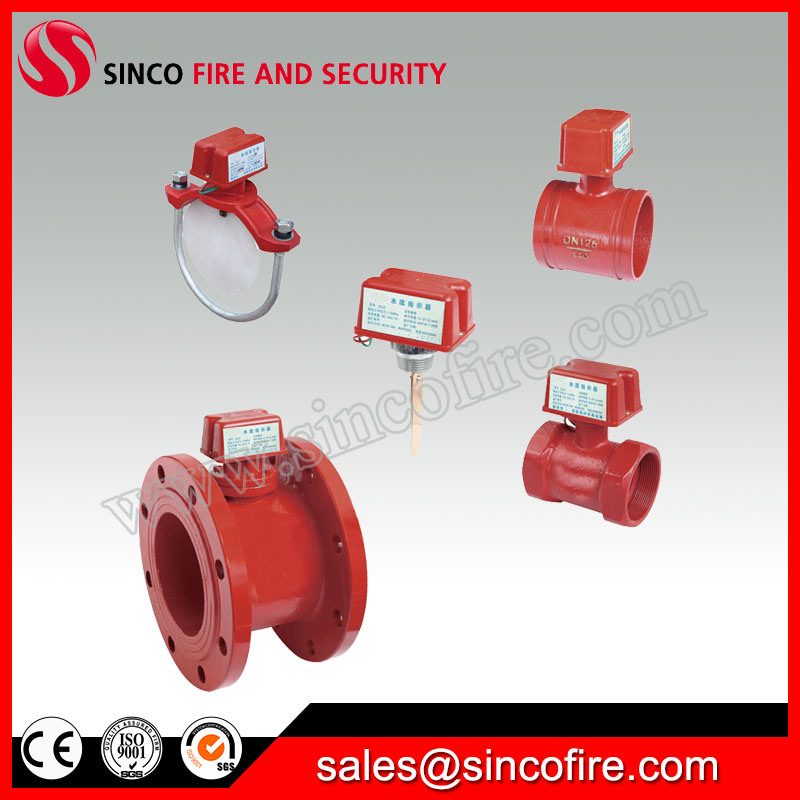

Photoes
Flange Type Water Flow Detector
Flange Type Water Flow Detector
Flange Type Water Flow Detector
Flange Type Water Flow Detector
Flange Type Water Flow Detector
