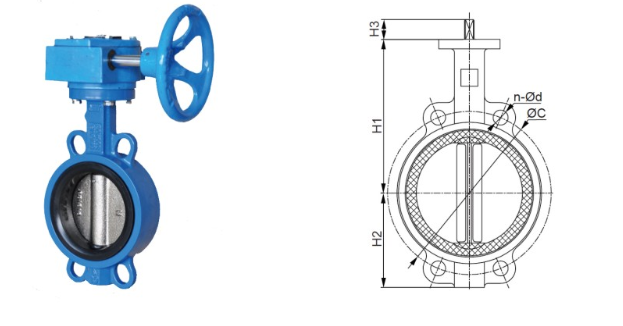

Handle Signal Butterfly Valve for Water Control

Quantity:



Inquire Add to Basket

Port:
Xiamen, China
Production Capacity:
4900 Sets Per Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Model NO.:
DN40-DN300
Working Temperature:
Normal Temperature (-40°C<T<120°C)
Material of Seal Surface:
Soft Sealed
Valve Body:
Casting
Application:
Industrial Usage, Water Industrial Usage, Household Usage
Disc:
Ductile Iron/Stainless Steel
Body:
Ductile Iron
Spindle:
Stainless Steel
Coating:
Epoxy Coated
Pressure Rate:
Pn10/16
Trademark:
None/OEM
Transport Package:
Standard Export Package
Specification:
DN40-DN600
Origin:
Fujian
HS Code:
8481801090
Driving Mode:
Manual
Connection Form:
Wafer
Structure:
Centre Sealing
Seal Form:
Force Sealed
Valve Stem:
Normal
Work Pressure:
Low Pressure (Pn<1.6mpa)

Product Description

Handle signal butterfly valve for water control

Introduction
A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.

Specification

Materials of major parts

No.	Part	Material
1	Body	Ductile Iron
2	Disc	DI/SS/Bronze
3	Stem	SS304/316
4	O-ring	EPDM/NBR/VITON
5	Seat	EPDM/PTFE
6	Bushing	PTFE/Bronzel
7	Hand Wheel	Cast Iron
8	Worm Gear	Cast Iron

Dimensioons(mm)

DN	L	L1	Φ	H1	H2	H3	N	Φ3
40	42	250	110	66.5	142	26	4	18
50	42.3	260	125	66.5	142	26	4	18
65	43.3	280	145	74.1	151	26	4	18
80	45.6	284	160	94	161	26	4	18
100	50.6	357	180	110.8	181	26	4	18
125	53.6	374	210	128.8	191	28	4	18
150	54.4	374	240	140.5	204	28	4	22
200	59.6	384	295	172.5	238	29	4	22
250	65.4	384	350	206.2	268	29	4	22/26
300	75	537	400	235.8	306	30	4	22/26

Photoes
Handle Signal Butterfly Valve for Water Control
