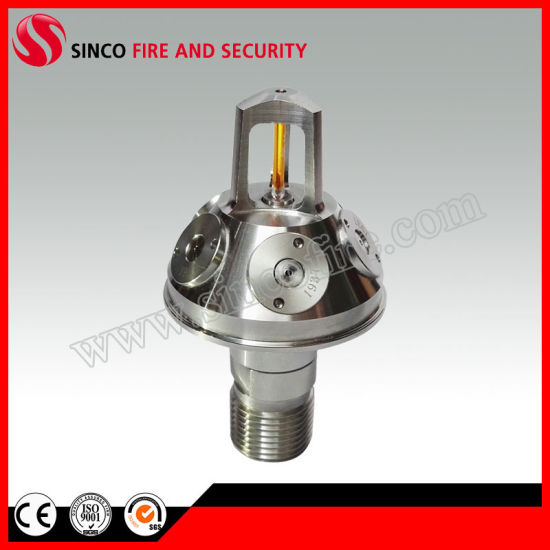

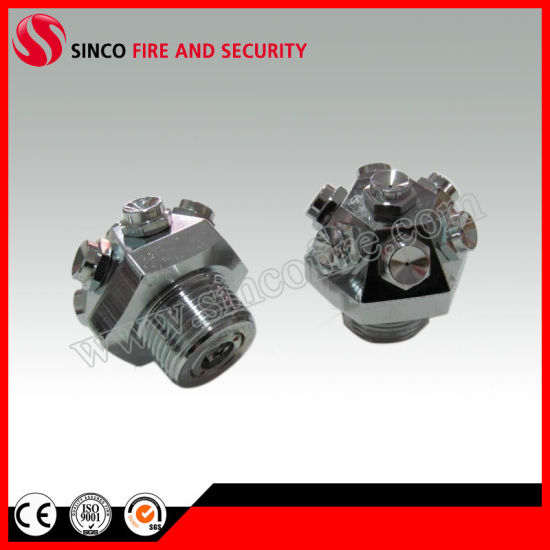

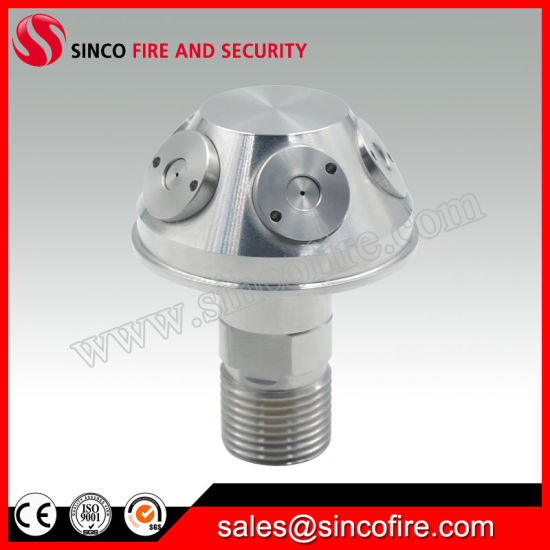

High Pressure Water Fog Spray Nozzle for Fire Fighting System

Quantity:
  • Xiamen, China
  • 10000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • XSWT1.0/10
  • Stainless Steel
  • Sliver
  • M18*1.5
  • BSPT/NPT
  • 10MPa
  • 5~21L/Min
  • Less Than 100um
  • 5 Tips, 6 Tips or 7 Tips or Other
  • OEM
  • Standard Export Package
  • M18*1.5
  • Fujian
  • 8424909000
  • Ordinary
  • Closed/Open
  • Can Automatically Opened and Closed
  • Deluge System
  • 5-21L/Min
  • Diaphragm Type
High pressure water fog spray nozzle for fire fighting system

Introduction
High Pressure Water Mist System is composed of pump unit, nozzle, valve unit and stainless steel pipe, etc. The working pressure is set to 10Mpa. The system has linkage to the automatic alarm system. It is responsive, stable in flow rate, uniform in water mist, easy for maintenance, has excellent extinguishment characteristics and price/performance ratio.
Design Features qiao
  • Very fine droplet size, Class I water mist
  • Major parts include nozzle body, nozzle tips, whirl core, spray orifice, strainer mesh
  • High spray momentum, good ability for penetration of fire
  • Very fine atomizing droplets, Good dispersion effect
  • Fog-like droplets remain in air for long time
Spray Characteristics
  • Spray pattern: Full Cone
  • Spray angles: 120°(other angles optional)
  • Operating pressure:10~14Mpa
  • Strainer: 40 mesh, 120 mesh, 200 mesh
  • Class I water mist: Dv0.5100μ, Dv0.99<200μ
  • K-factors of open type: 0.17, 0.45, 0.95, 1.34, 2.04, 1.19, 1.87.
  • K-factors of closed type: 1.25, 1.68, 2.04, others can be customized.
Technical parameters
Thread type BSPT OR NPT. CAN BE CUSTOMIZED!
Material 303SS, 316SS
Certificates ISO 9001, ISO14001, Bureau Veritas
Nozzle pattern Closed or open
Inch size M18*1.5
Nozzle Number 5 or 6
Capacity 5-21 L/min
Droplet Size ≤100μm
K-factor 0.17~2.04
Working Pressure 10Mpa
Application Fire fighting, Fire production

Photoes

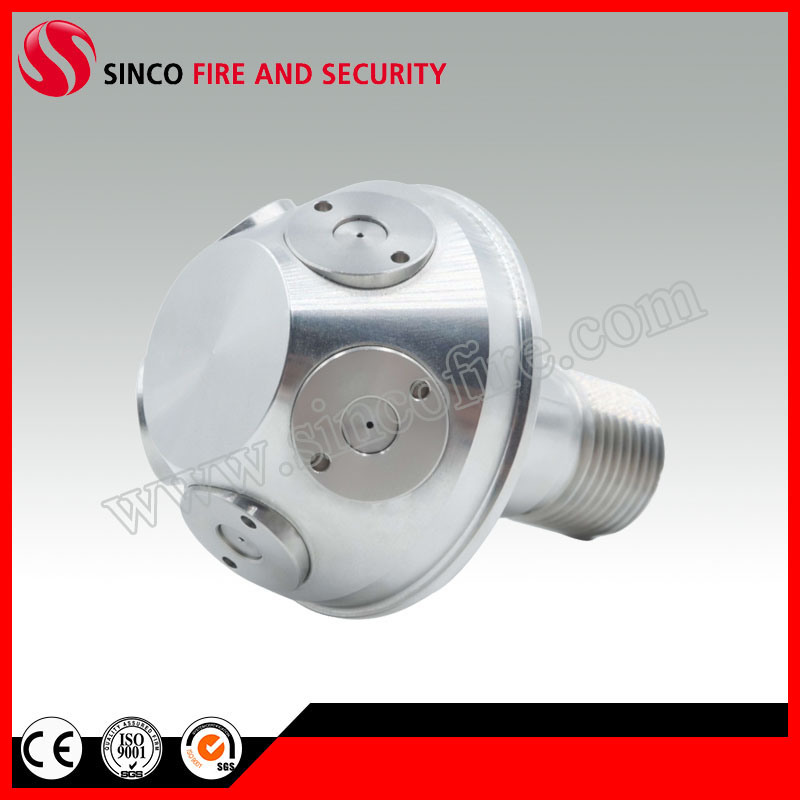

High Pressure Water Fog Spray Nozzle for Fire Fighting System

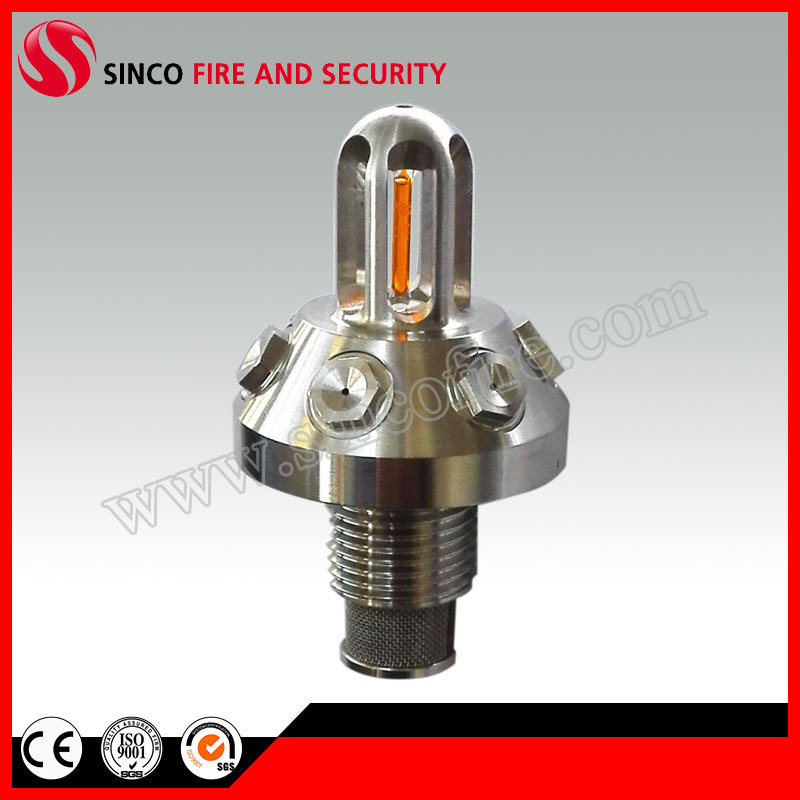

High Pressure Water Fog Spray Nozzle for Fire Fighting System

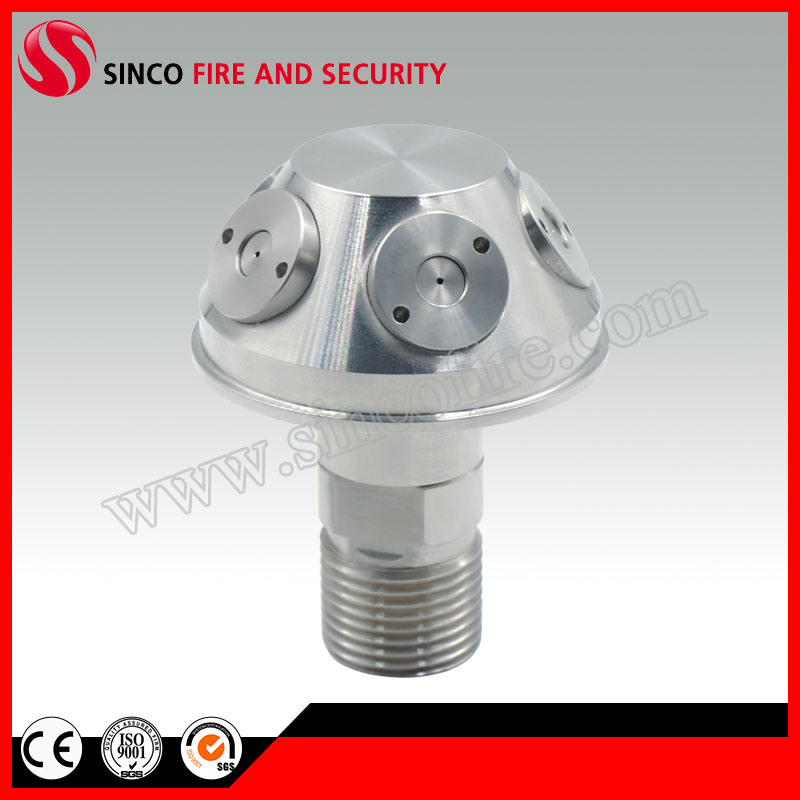

High Pressure Water Fog Spray Nozzle for Fire Fighting System

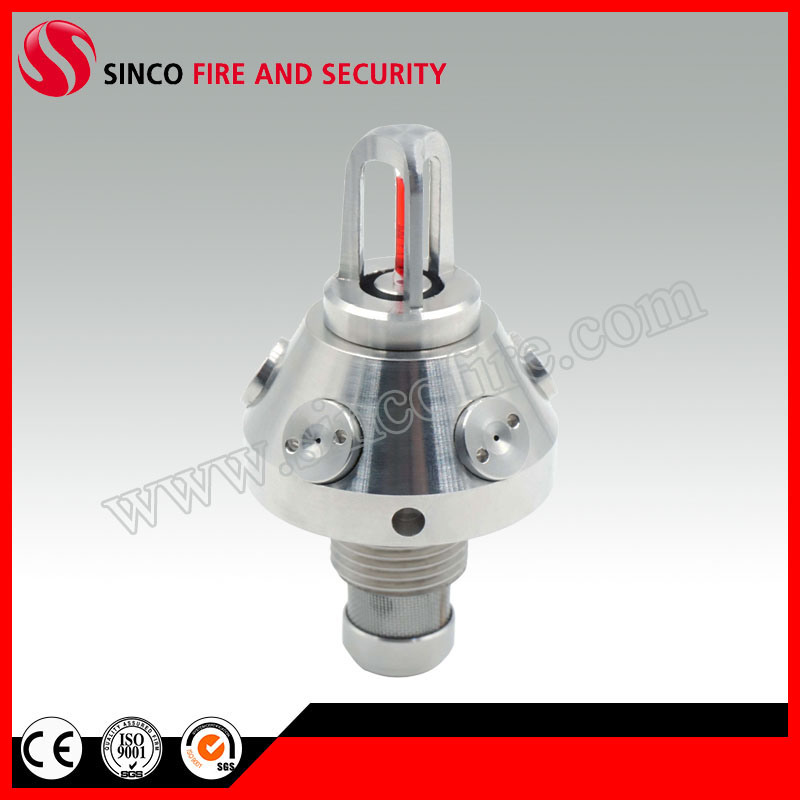

High Pressure Water Fog Spray Nozzle for Fire Fighting System
