Independent Stand Alone Smoke Detector

Quantity:
Inquire Add to Basket

  • Xiamen, China

  • 10000pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • SASD006

  • 9V Battery Operated

  • >20ua

  • >10ua

  • Ce/ISO

  • 20 Square Meter

  • OEM

  • Standard Export Package

  • Fujian

  • 8531100000

  • Smoke Detectors

  • Active

  • Smoke Alarms

  • Point Control Alarm Detectors

  • Power Detector

  • Photoelectric Smoke Style

Independent stand alone smoke detector

Introduction
This product named photoelectric detector(hereinafter called detector) detects the smoke by a couple of infrared diodes. The principle of detecting is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber. The chamber can shield external light, but don't affect the smoke into it. While have no smoke, the diode can receive very weak infrared light.

Specification
Operating voltage 9VBATTERY (independence or wireless type)
Static current 10uA
Alarm current 20mA
Indicate alarm RED LED FLASH
Sound Level 85dB/m
Operating Temp -10 +50
Humidity 95 RH
Detecting area 20 square meter
Alarm output RF signal 315MHz or 433MHz
Size 106*35mm
Execute criterion GB4715-1993

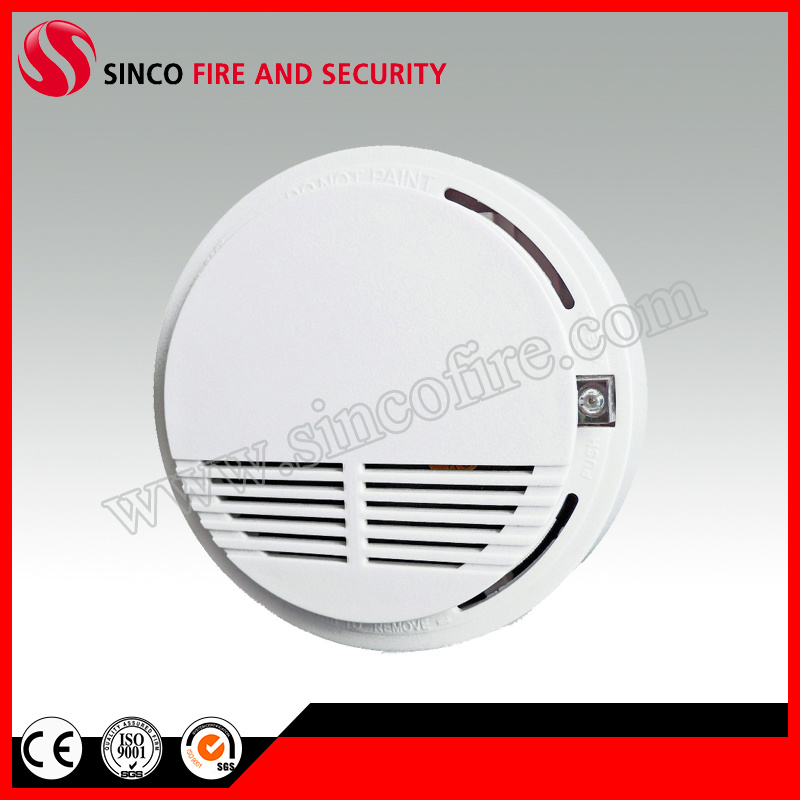

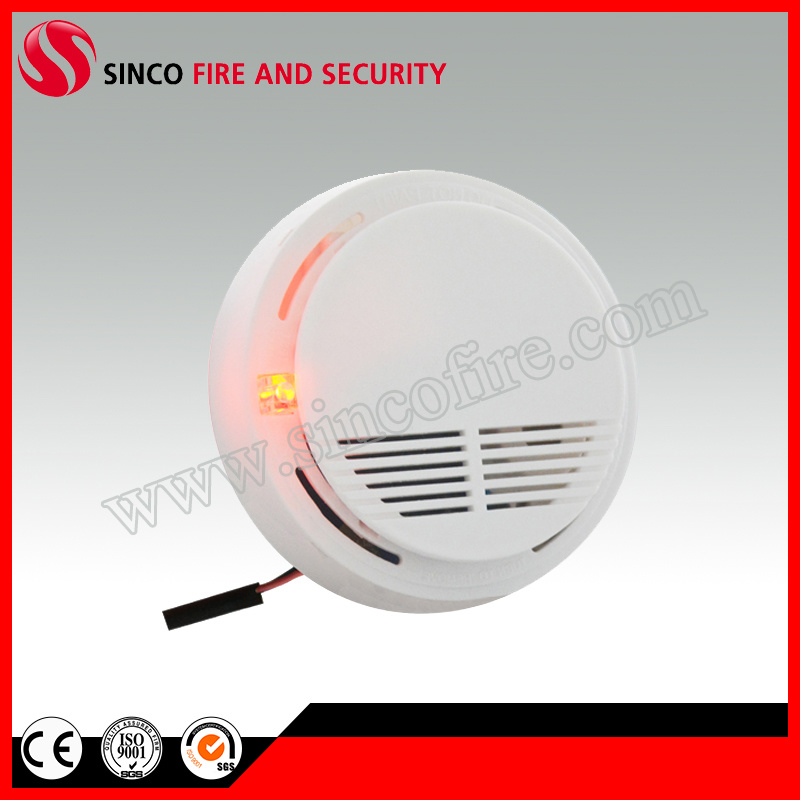

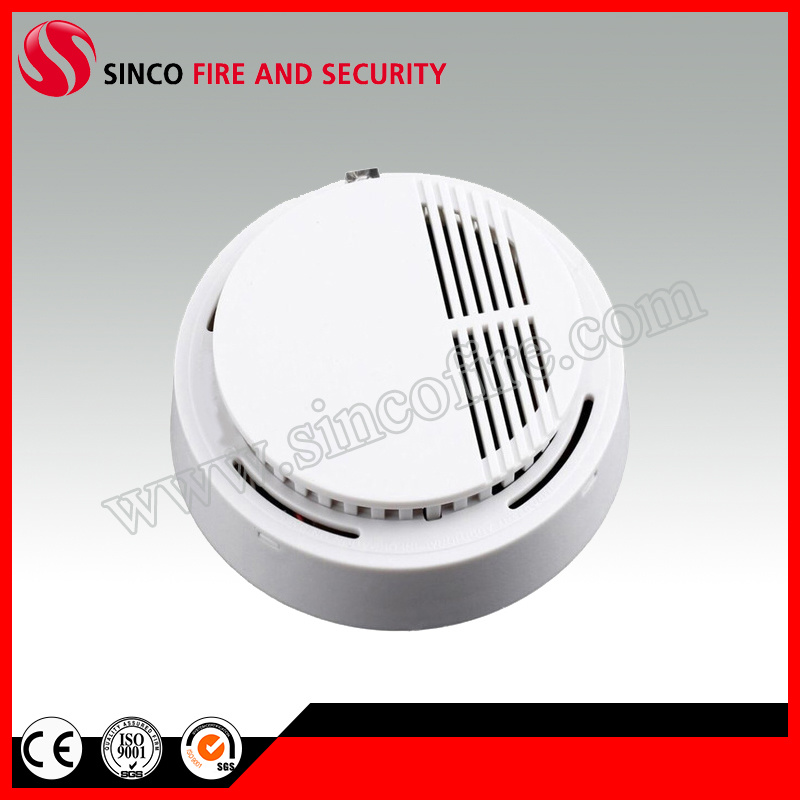

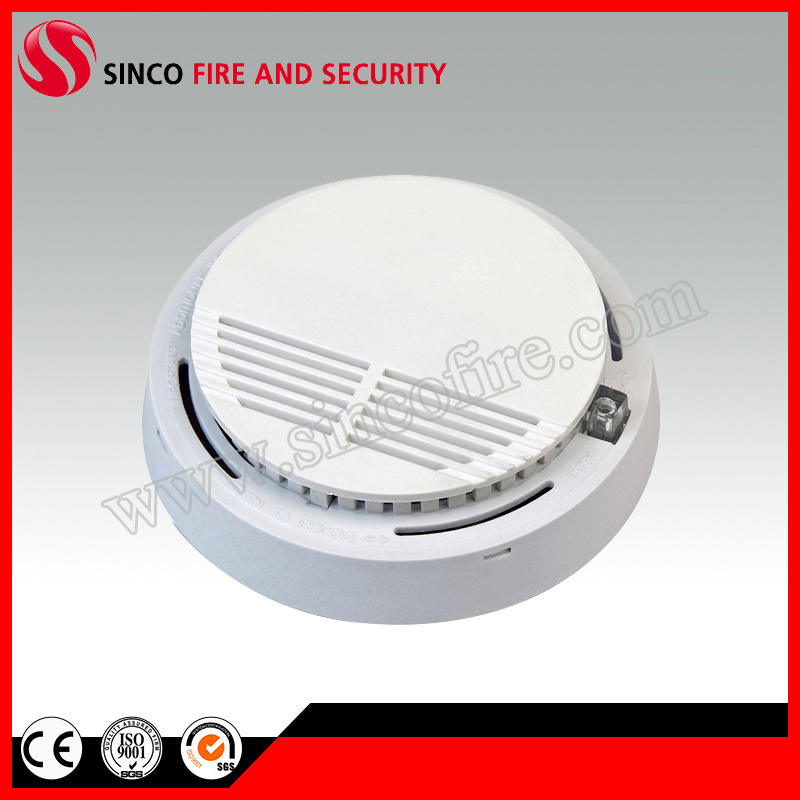

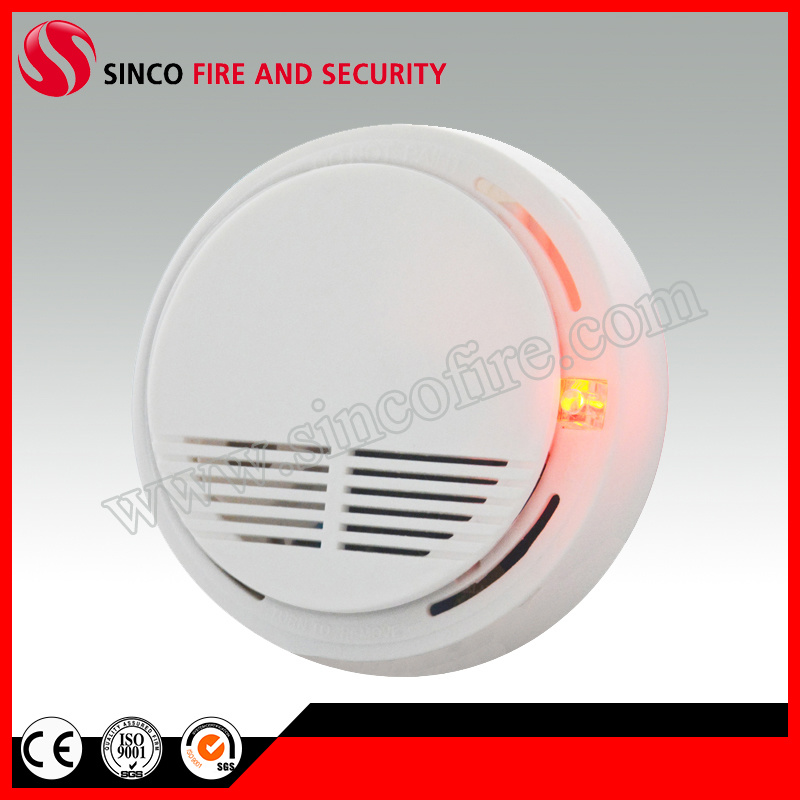

Photoes
Independent Stand Alone Smoke Detector
Independent Stand Alone Smoke Detector
Independent Stand Alone Smoke Detector
Independent Stand Alone Smoke Detector
Independent Stand Alone Smoke Detector
