| Quantity: | |
|---|---|
Xiamen, China
150000pieces/Month
L/C, T/T, D/P, Western Union, Paypal
ZST
Differential Type
Butterfly Valve Type
80mm-250mm
80L/Min or 115L/Min
Lever Type
Fire Sprinkler
Dn15/Dn20
NPT/BSPT
Brass/Zinc
Chrome/Natural Brass/White

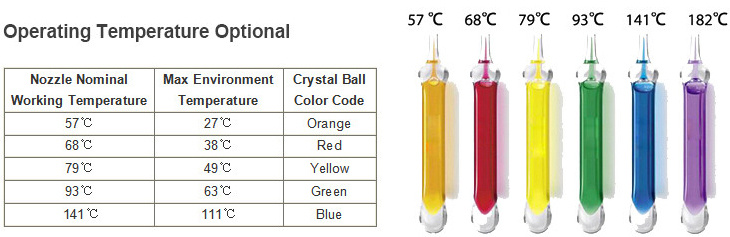

57/68/79/93/141/182 Degree
Standard/Quick
5.6(80)/8.0(115)
1.2MPa/175psig
SINCO/OEM
Standard Export Package
1/2 Inch or 3/4 Inch
Quanzhou, Fujian
8424

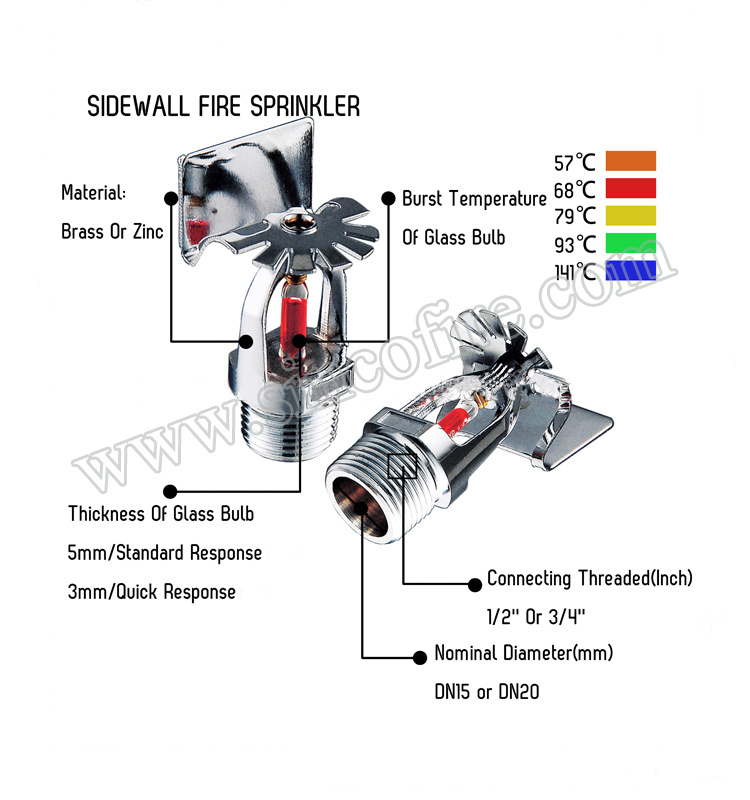

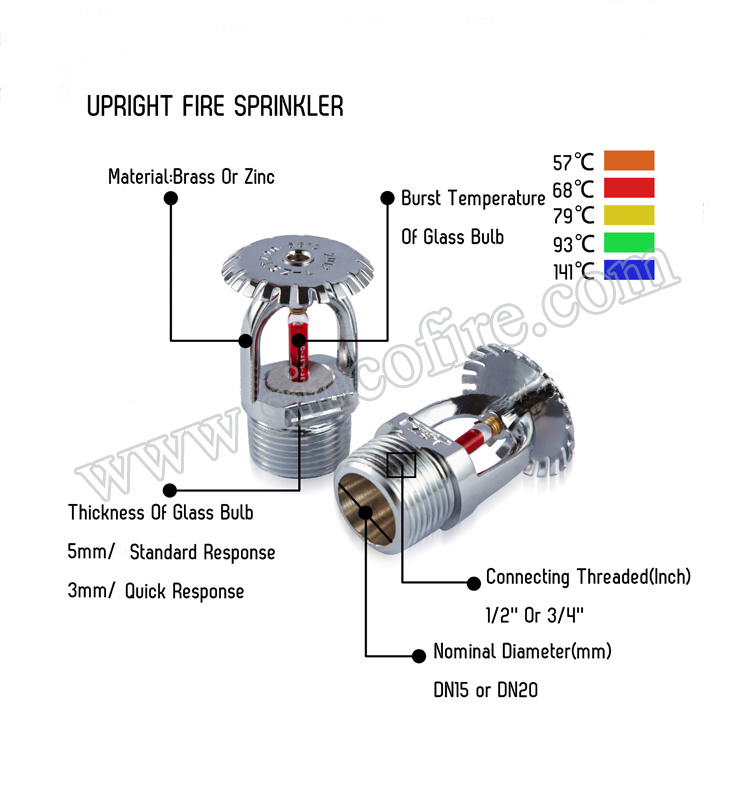

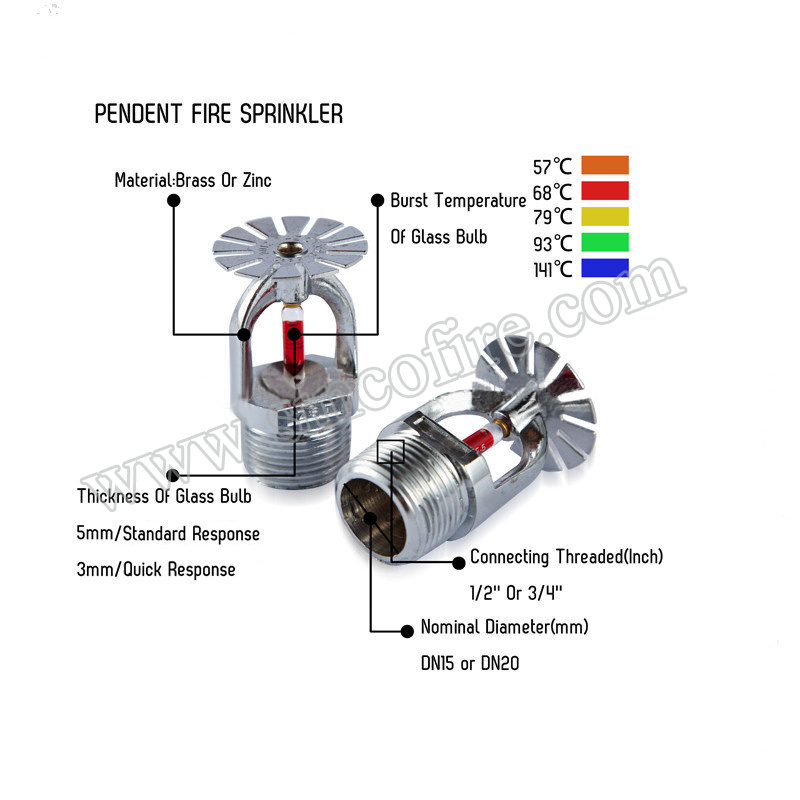

Upright/Pendent/Sidewall
Closed
Wet Alarm Valve
Can′t Automatically Opened and Closed
Water Spray System
Wet Fire Sprinkler System
| Type | Upright / Pendent /Sidewall/Conventional/Concealed | |
| Material | Brass/Zinc | |
| Surface finish | Natural brass or Chrom Plated or White Color Coated | |
| Thread diameter | 1/2" NPT/BSPT (DN15) | 3/4" NPT/BSPT (DN20) |
| Flow characteristic coefficient | 80L/min(K=5.6) | 115L/min(K=8.0) |
| Glass bulb diameter | 5mm(Standard Response) or 3mm(Quick Response) | |
| Certificates | ISO,CCC,UL | |
| Max working pressure | 1.2Mpa (175Psig/12 Bar) | |
| Factory Hydrostatic Test | 100%, 3.0Mpa | |
 | ||
| Type | Upright / Pendent /Sidewall/Conventional/Concealed | |
| Material | Brass/Zinc | |
| Surface finish | Natural brass or Chrom Plated or White Color Coated | |
| Thread diameter | 1/2" NPT/BSPT (DN15) | 3/4" NPT/BSPT (DN20) |
| Flow characteristic coefficient | 80L/min(K=5.6) | 115L/min(K=8.0) |
| Glass bulb diameter | 5mm(Standard Response) or 3mm(Quick Response) | |
| Certificates | ISO,CCC,UL | |
| Max working pressure | 1.2Mpa (175Psig/12 Bar) | |
| Factory Hydrostatic Test | 100%, 3.0Mpa | |
| ||
