| Quantity: | |
|---|---|
Xiamen, China
100000pieces/Month
L/C, T/T, D/P, Western Union, Paypal
1"-8"
Neutral/OEM
1"-8"
Quanzhou, Fujian
84818
GB8013-2005, CCCF, CCC
Chrome Plated/Brass
Aluminum/Brass
British/John Morris/ American/Nh/Nakajima(Machino)

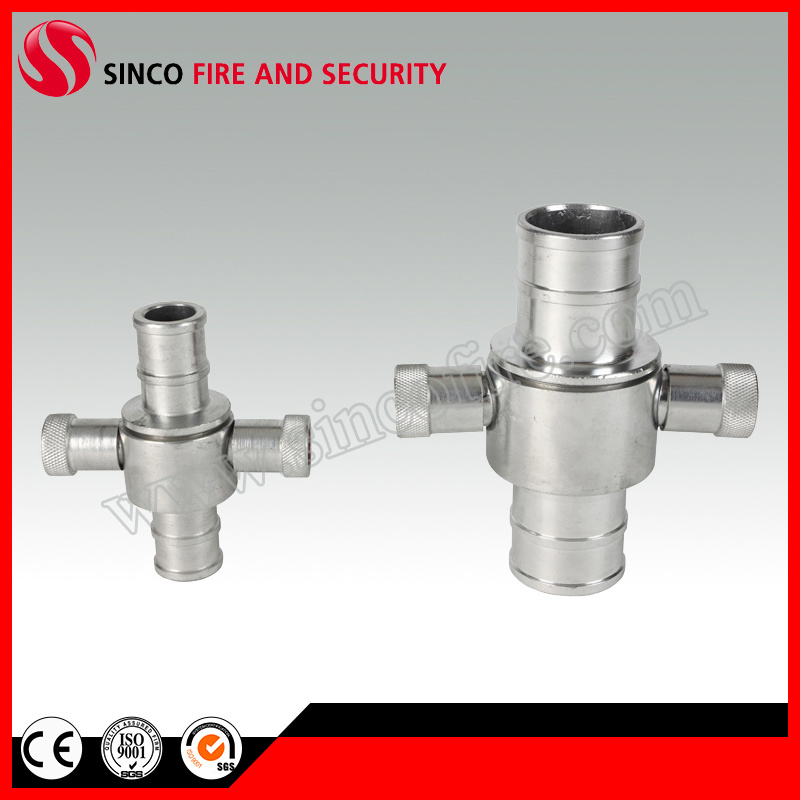

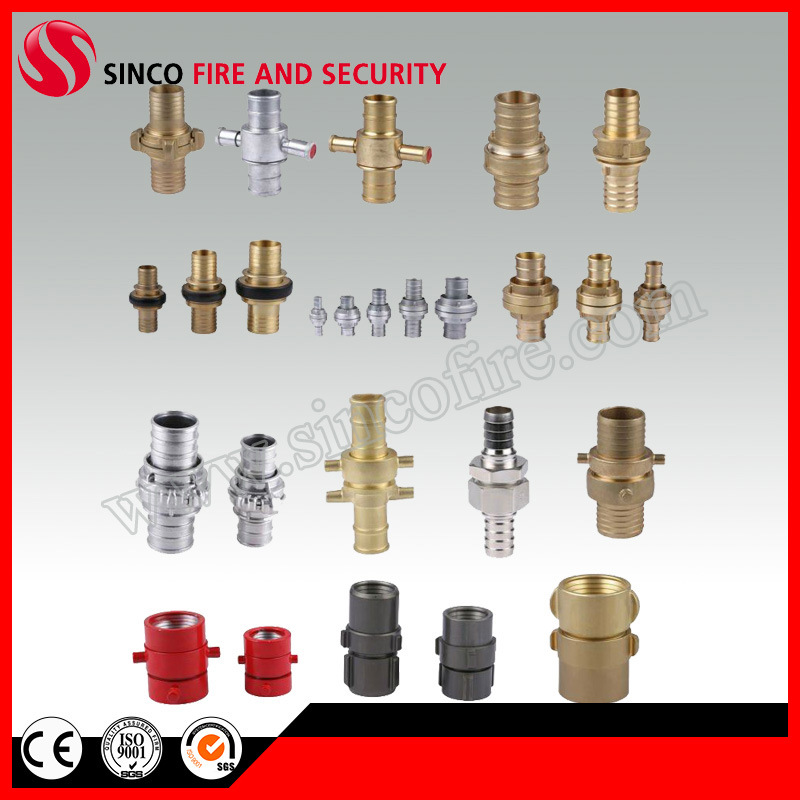

Fire Hose Coupling
Bags/Cartons
| Model | KD | KY | KN | KJ | |||||
| Diameter(mm) | DN50 | DN65 | DN80 | DN50 | DN65 | DN50 | DN65 | DN50/ DN65 | DN65/ DN80 |
| Working Pressure(Mpa) | 1.6 | ||||||||
| Testing Pressure(Mpa) | 2.4 | ||||||||
| Available Medium | Clear Water, Foam mixed liquid | ||||||||
| Fire Hose Coupling Type | Inlet | Outlet |
| British/John Morris Coupling | 2.5"BS336 | Φ63.5 |
| 2"BS336 | Φ51 | |
| 1.5"BS336 | Φ38 | |
| 2.5"BS336 | Φ51 | |
| 2.5"BS336 | Φ38 | |
| 2"BS336 | Φ38 |
| Fire Hose Coupling Type | Inlet | Outlet |
| American(ANSI Pin)Fire Hose Coupling | 2.5"NH | Φ63.5 |
| 2"NH | Φ51 | |
| 1.5"NH | Φ38 |
| Fire Hose Coupling Type | Inlet | Outlet |
| Nakajima(Machino) fire hose coupling | 2.5" | Φ63.5 |
| 2" | Φ51 | |
| 1.5" | Φ38 |
| Fire Hose Coupling Type | Inlet | Outlet |
| Forestry Fire Hose Coupling | 1.5" | Φ38 |
| 1.5" | 1.5" BSP | |
| 1.5" | 1.5" NPSH | |
| 1.5" | F1.5" BSP |
| Fire Hose Coupling Type | Inlet | Outlet |
| Gost(Russian) Fire Hose Coupling | 2" | Φ50 |
| 2.5" | Φ70 | |
| 3" | Φ80 | |
| 4" | Φ100 |
| Fire Hose Coupling Type | Inlet | Outlet |
| UNI Fire Hose Coupling | UNI70 | Φ70 |
| UNI45 | Φ45 |
| Fire Hose Coupling Type | Inlet | Outlet |
| Storz Fire Hose Coupling | 4" STORZ | Φ100 |
| 3" STORZ | Φ75.5 | |
| 2.5" STORZ | Φ63.5 | |
| 2" STORZ | Φ51 | |
| 1 3/4" STORZ | Φ44.5 | |
| 1" STORZ | Φ38 |
| Model | KD | KY | KN | KJ | |||||
| Diameter(mm) | DN50 | DN65 | DN80 | DN50 | DN65 | DN50 | DN65 | DN50/ DN65 | DN65/ DN80 |
| Working Pressure(Mpa) | 1.6 | ||||||||
| Testing Pressure(Mpa) | 2.4 | ||||||||
| Available Medium | Clear Water, Foam mixed liquid | ||||||||
| Fire Hose Coupling Type | Inlet | Outlet |
| British/John Morris Coupling | 2.5"BS336 | Φ63.5 |
| 2"BS336 | Φ51 | |
| 1.5"BS336 | Φ38 | |
| 2.5"BS336 | Φ51 | |
| 2.5"BS336 | Φ38 | |
| 2"BS336 | Φ38 |
| Fire Hose Coupling Type | Inlet | Outlet |
| American(ANSI Pin)Fire Hose Coupling | 2.5"NH | Φ63.5 |
| 2"NH | Φ51 | |
| 1.5"NH | Φ38 |
| Fire Hose Coupling Type | Inlet | Outlet |
| Nakajima(Machino) fire hose coupling | 2.5" | Φ63.5 |
| 2" | Φ51 | |
| 1.5" | Φ38 |
| Fire Hose Coupling Type | Inlet | Outlet |
| Forestry Fire Hose Coupling | 1.5" | Φ38 |
| 1.5" | 1.5" BSP | |
| 1.5" | 1.5" NPSH | |
| 1.5" | F1.5" BSP |
| Fire Hose Coupling Type | Inlet | Outlet |
| Gost(Russian) Fire Hose Coupling | 2" | Φ50 |
| 2.5" | Φ70 | |
| 3" | Φ80 | |
| 4" | Φ100 |
| Fire Hose Coupling Type | Inlet | Outlet |
| UNI Fire Hose Coupling | UNI70 | Φ70 |
| UNI45 | Φ45 |
| Fire Hose Coupling Type | Inlet | Outlet |
| Storz Fire Hose Coupling | 4" STORZ | Φ100 |
| 3" STORZ | Φ75.5 | |
| 2.5" STORZ | Φ63.5 | |
| 2" STORZ | Φ51 | |
| 1 3/4" STORZ | Φ44.5 | |
| 1" STORZ | Φ38 |
