Manual Fixed Type 19mm 36m AS/NZS 1221 Fire Hose Reel

Quantity:


Inquire Add to Basket

Port: Xiamen, China
Production Capacity: 8000rolls/Week
Payment Terms: L/C, T/T, D/P, Western Union, Paypal
Model NO.: 19mmx36m
Inlet Diameter: 19mm
Hose Length: 36m
Spray Nozzle: Brass
Maximum Working Pressure: 12 Bar/175 Psi
Testing Pressure: 17 Bar/247psi
Trademark: OEM
Transport Package: Standard Export Package
Specification: 19mm*36m 1"*30m
Origin: Fujian
HS Code: 8424
Installation: Semi-Concealed
Material: Steel&PVC/Rubber
Resettlement: Coil Type
Door Type: Customized
Standard: As1221
Swing Type: Manual/Automatic

Product Description

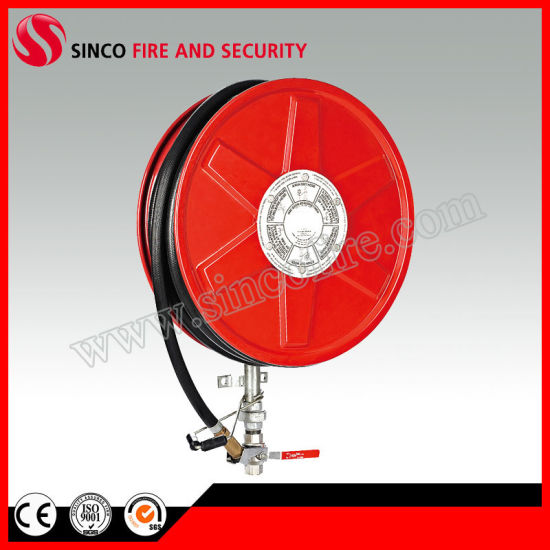

Manual fixed type 19mm 36m AS/NZS 1221 fire hose reel

Introduction

This Fire Hose Reel can be easily used just mount it to your Fire Trailer or at Home with your water tank ,at your Farm with the extra long durable hose or for Commercial Use.

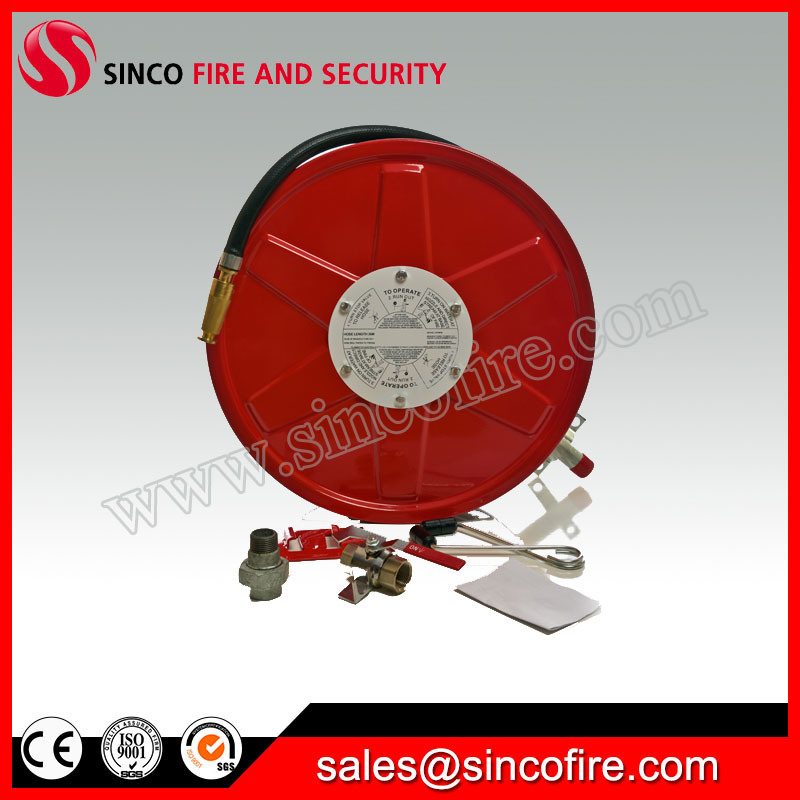

This Fire Hose Reel comes Complete with 36 meters of 19mm Fire Hose with a Brass nozzle, Bright Red Reel, 25mm ball Valve, 25mm Union and Guide arm for easy connection.

Fire Hose Reel Features
1. 36 Meter Fire Hose 19mm internal of Hose
2. Made to Australian Standards AS1221 (1997)
3. Mild Steel side plates painted Bright Red
4. Swivel Zinc Coated Guide Arm
5. Brass Nozzle, Twist Grip operation
6. Dimensions- 550x550x240mm Approx
7. 25mm Brass Isolation Valve/Stop Valve Interlock action
8. Galvanised Union Female to Female
9. Wall Mounting Easy Fit Bracket
10. Weight 23kgs
11. Minimum Discharge rate is 27 litres per minute
12. Fixed fire hose reel comes with all parts required, including 25mm ball valve (including nozzle locking device), hose guide and wall bracket.

Specification

Type	Fixed position fire hose reel
Hose Size	19mm diameter hose, 36m long
Coverage Radius	40m radius according to AS2441 (36m + 4m water stream)
Nozzle Type	Brass twist type nozzle
Nominal Inlet Pressure	220kpa (2.2bar / 32psi) at 23 Deg C
Tested Pressure	1700kpa (17bar / 247psi)
Maximum Working Pressure	1200kPa (12bar / 175 psi)
Approvals	Certified and approved to AS/NZS 1221 (1997)
Appearance	Red with a white usage plate in centre. Black hose.
Dimensions - Width - Height - Depth - Weight	550mm 550mm 240mm 21kg
As Packaged - Length - Width - Height - Weight	600mm 600mm 250mm 23kg
