OS&Y Resilient Seated Rising Stem Gate Valve

Quantity:
  • Xiamen, China

  • 20000 Sets Per Month

  • L/C, T/T, D/P, Western Union, Paypal

  • Z41X/RRXP

  • Outside Gate Valve

  • Regulation, Safety, Emptying, Drain, Flow Control

  • DIN/BS/ANSI/GB etc.

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 80 Celsius Degree

  • Water, Sewage, Oil, Gas etc

  • Pn10/16/25

  • Blue/Red

  • Blank

  • Wooden Case

  • DN40-DN600

  • Fujian

  • 8481801090

  • Straight-through

  • Cast Iron/Ductile Iron/Stainless Steel

  • Flange

  • Low Pressure

  • Manual

  • Wedge Gate Valve

OS&Y resilient seated Rising Stem Gate Valve
OS&Y Resilient Seated Rising Stem Gate Valve
Introduction
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids for sump pump.

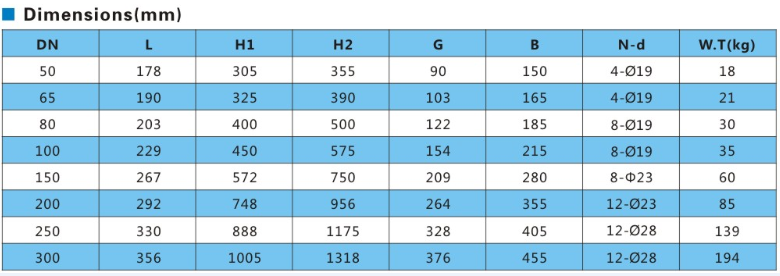

Specification
OS&Y Resilient Seated Rising Stem Gate Valve

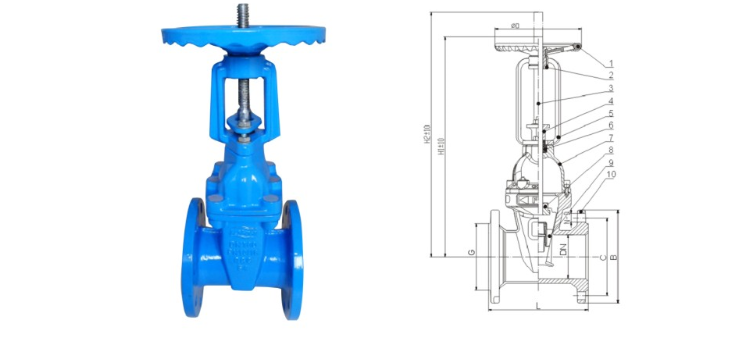

Materials of major parts:
No. Part material
1 Body Ductile cast iron
2 Disc Ductile cast iron packed with NBR
3 Bolt Carbon Steel/Stainless Steel
4 Bonnet Gasket EPDM/NBR
5 Bonnet Ductile cast iron
6 Stem Stainless Steel
7 O-ring EPDM/NBR
8 Thrust bearing Brass
9 Gland Ductile cast iron
10 Dust proof gasket EPDM/NBR
11 Hand wheel Ductile cast iron
OS&Y Resilient Seated Rising Stem Gate Valve
OS&Y Resilient Seated Rising Stem Gate Valve

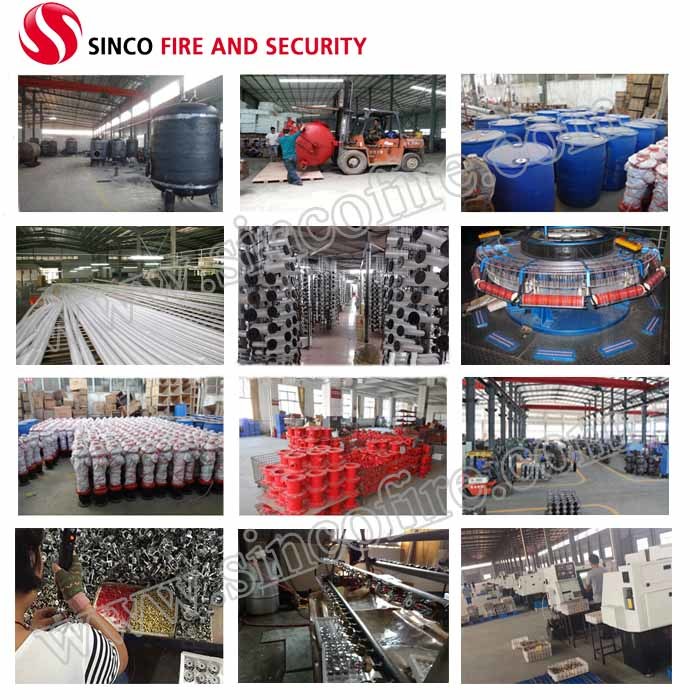

Our Workshop
OS&Y Resilient Seated Rising Stem Gate Valve


Other Fire Fighting Equipment
OS&Y Resilient Seated Rising Stem Gate Valve
Our Company

We could supply fire hose, fire hose fittings, spray nozzle, coupling, automatic fire sprinkler system products, gate valves, check valves, ball valves, etc. All these products strictly confirming to JIS, API ans BS standards. All of our products comply with international quality standards and are greatly appreciate in avariety of markets around world. Our factory is covering an area of 15900 square meters, we now over 300 workers. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarteen total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a globe sales network reaching the North America, South America, Mideast, Southeast Asia, East Europe, etc.

FAQ
1. Could you supply the samples?

Free samples always ready if the value is within our purview.

2.Do you have the MOQ?
For conventional products, Low MOQ.

3. Can you add some logo on the products?
Yes. We could OEM and design your logo.

4. Are you able to design or explore a new products for us?
Yes, we are able to, if the clients could supply the drawings or samples.
