Home » Products » Fire Hydrant & Landing Valve » Fire Hydrant Landing Valve » Oblique Angle Type Fire Hydrant Landing Valve
Share to:

Oblique Angle Type Fire Hydrant Landing Valve

Quantity:
  • Xiamen, China
  • 10000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • 2.5"
  • Cast Iron with Red/Black Finished
  • 2"/2.5" Bsp
  • 2"-2.5" BS336
  • 1.6MPa
  • SINCO/OEM
  • Standard Export Package
  • 1.5"-2.5"
  • Fujian
  • 84818
  • Fire Hydrant Landing Valve
  • Normal Fire Hydrant
  • Ordinary Bolt
  • Low Fire Hydrant
  • Ordinary
  • Brass
Oblique Angle Type Fire Hydrant Landing Valve

Description
Landing Valves are used for fighting fire with water and accordingly mounted in fire hydrant system at Internal or External places. The landing valves are sometimes also referred to as internal hydrants because they are usually fitted inside the buildings for wet hydrant system.

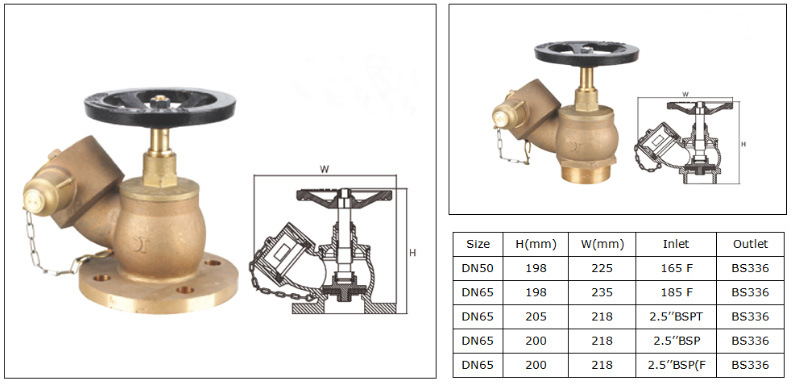

Technical Specification
Body Copper Alloy
Handwheel Grey Cast Iron/Aluminum
Black Cap Copper Alloy or Plastic
Inlet Flanged/BSP Screwed
Outlet Female instantaneous to BS336 and other connections
Surface Red or Natural Brass
Working Pressure 16bar
Test Pressure 22.5 Bar
Flow Rates More than 8.5L/s
Fully Open 4.5 turns
Norminal size 2-1/2",2"
Manufacture and certified to BS 5041 Part 1
Oblique Angle Type Fire Hydrant Landing Valve
Other fire hydrant landing valve
Oblique Angle Type Fire Hydrant Landing Valve
Oblique Angle Type Fire Hydrant Landing Valve

Other Fire-fighting Equipment
Oblique Angle Type Fire Hydrant Landing Valve
