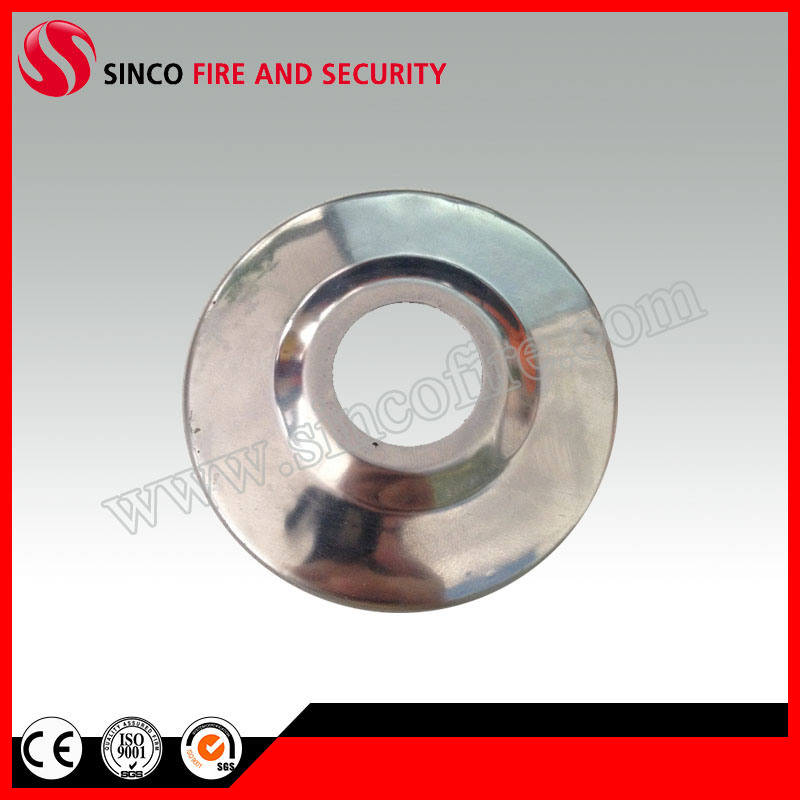

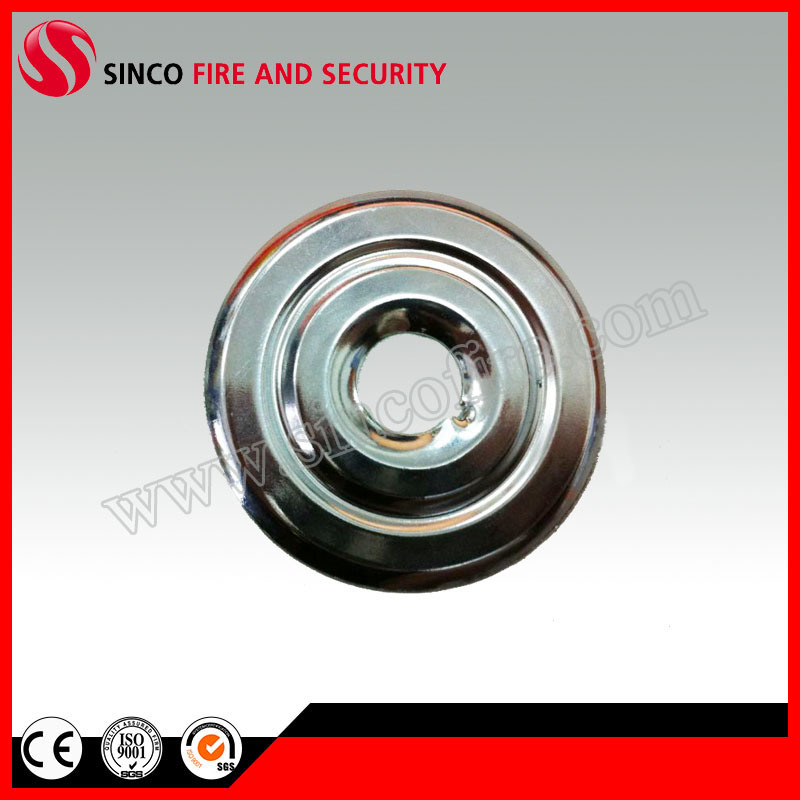

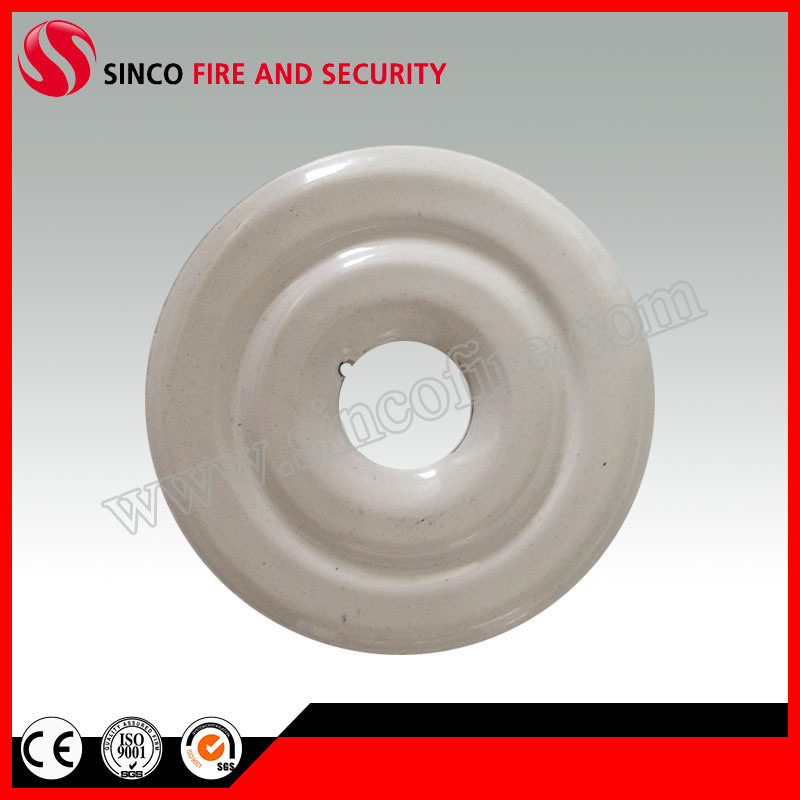

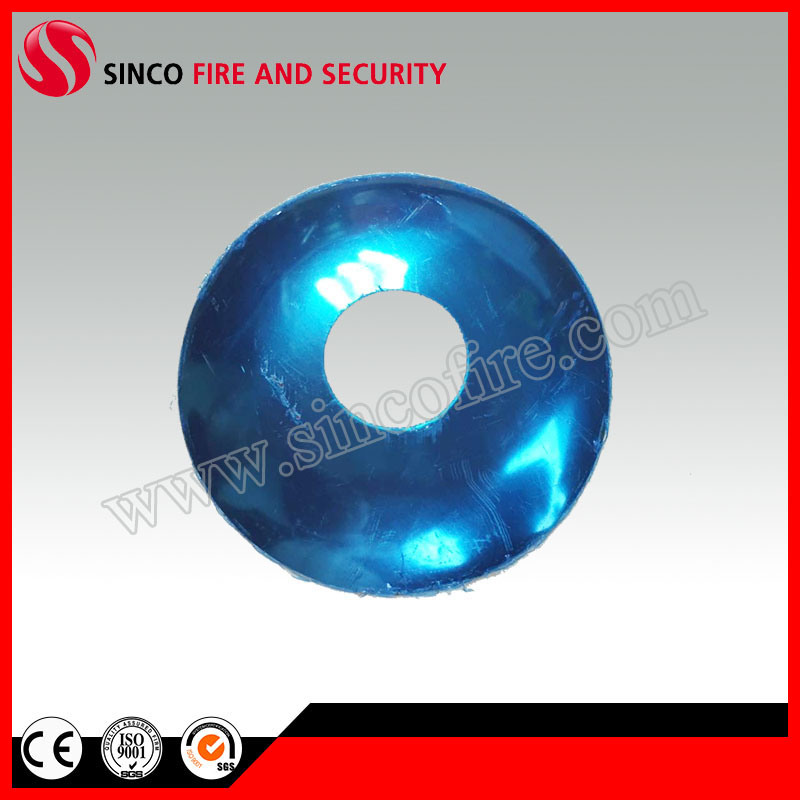

One Piece Flat Escutcheon Plate

Fire sprinkler escutcheon recessed plate
Introduction

Consists of a mounting plate and closure for finished appearance in ceilings or soffits.
Intended for use in areas with finished ceilings or walls, and the adjustment provided by these escutcheons reduces the accuracy to which fixed piping to the sprinklers must be cut, while providing a decorative recessed sprinkler installation.
Primarily designed for use with standard spray, quick response sprinklers and the designer residential sidewall sprinklers.
Maximum 1 ⁄ 2 " to 3 ⁄ 4 " NPT/BSPT adjustment.
Used to improve the overall appearance of the sprinkler installation by concealing the clearance holes required for wall or ceiling installation
Deep, two-piece, adjustable
3 ⁄ 4 " NPT total adjustment

Specification

Name	Fire sprinkler escutcheon recessed plate
Size	1/2" 3/4" NPT/BSPT
Material	Stainless steel or stainless iron
Weight	30g or customized
Height	27 mm or customized
Surface finished	Chrome/ white/brass or customized
OEM	Available

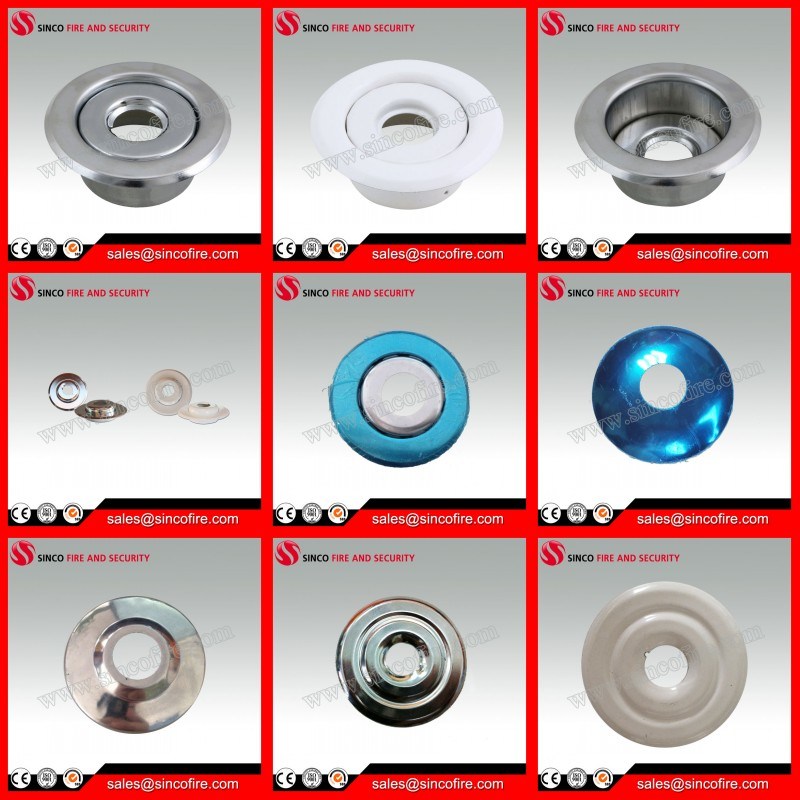

Photoes
