Outdoor Underground Fire Hydrant for Fire Fighting

Quantity:
  • Xiamen, China
  • 5000-8000pieces/Set
  • L/C, T/T, D/P, Western Union, Paypal
  • SA100/SA150
  • 100mm/150mm
  • 65mm*2/80mm*2
  • 1.6MPa
  • Clean Water,Foam Admixture Liquid
  • SINCO/OEM
  • Standard Export Package
  • DN100/DN150
  • Quanzhou
  • 84818
  • Outdoor Fire Hydrant
  • Normal Fire Hydrant
  • Ordinary Bolt
  • Low Fire Hydrant
  • Ordinary
  • Ductile Cast Iron/Cast Iron
Outdoor Underground Fire Hydrant for Fire Fighting

Description

Outdoor fire hydrant is the water supplier which is connected to the pipeline network of fire system set outside the building.It aims to supply water for fire engines from municipal water supply network or outdoor water supply network.It can also be directly commected to stream nozzle for putting out fire. The hydrant can be categorized as SS-type and SA-type.The SS-type upper ground fire hydrant has abvious part that higher than ground and can be installed at places where have higher temperatures.It is convenience.The SA-type hydrants are installed undergound and would't affect the appearance of the city.This type is more suitable for cold regions.

Technical Specification
Name Model Inch Water Inlet (mm) Water Outlet (mm) Working Pressure (Mpa) Operation Height of Opening
Overground Hydrant SS100-1.6 4'' 100 65*2 1.6 ≥50
SS150-1.6 6'' 150 80*2
Underground Hydrant SA100-1.6 4'' 100 65*2 1.6 ≥50
SA150-1.6 6'' 150 80*2

Photoes

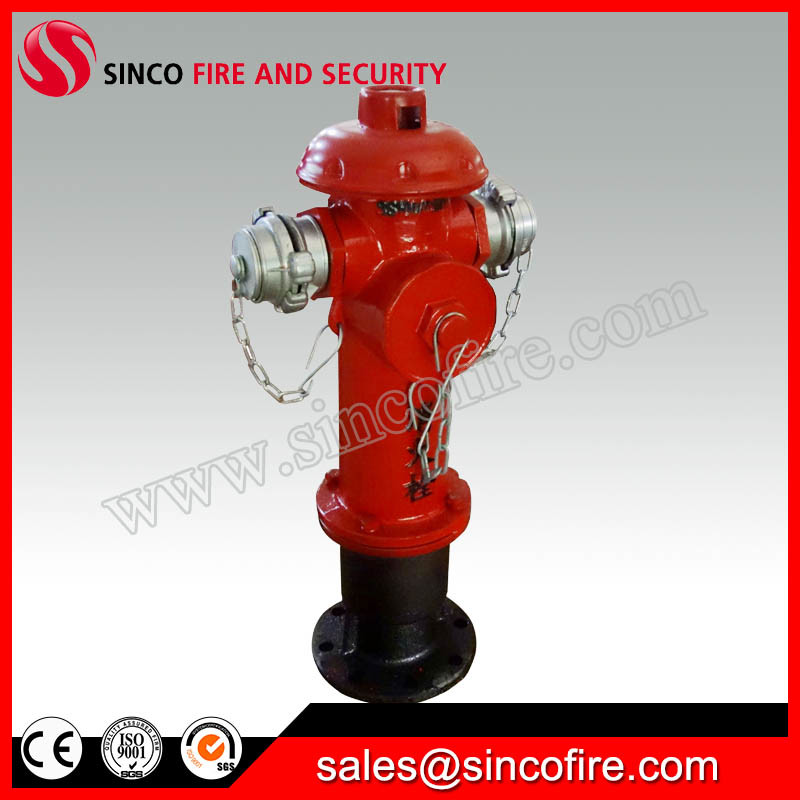

Outdoor Underground Fire Hydrant for Fire Fighting

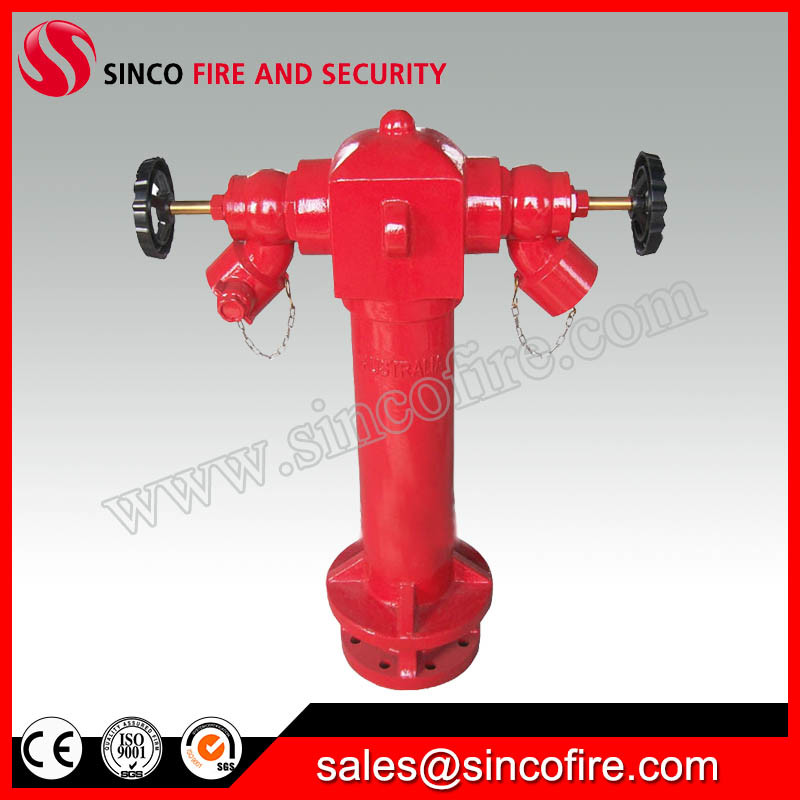

Outdoor Underground Fire Hydrant for Fire Fighting

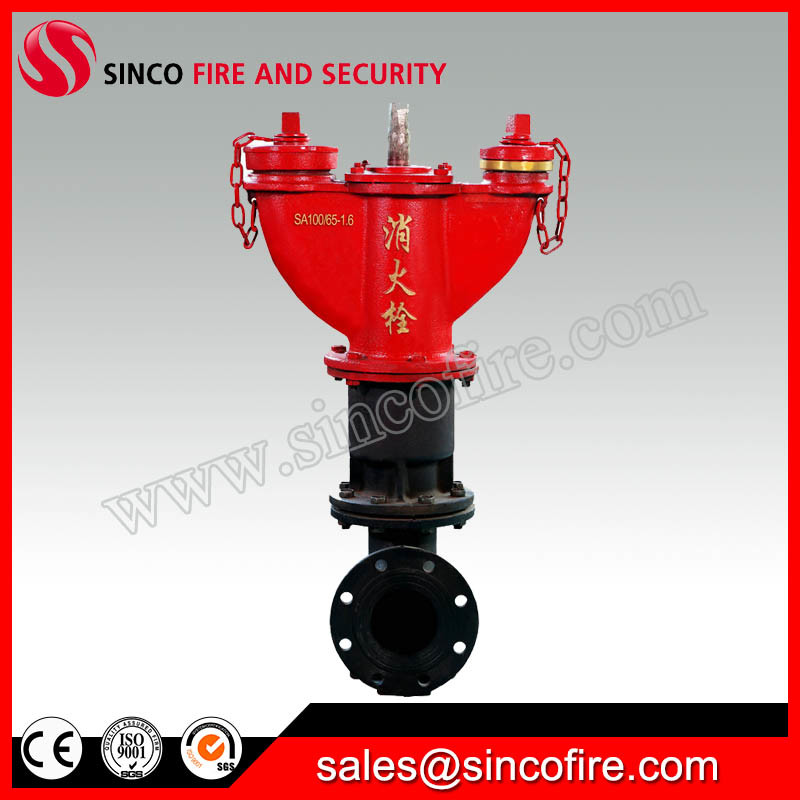

Outdoor Underground Fire Hydrant for Fire Fighting

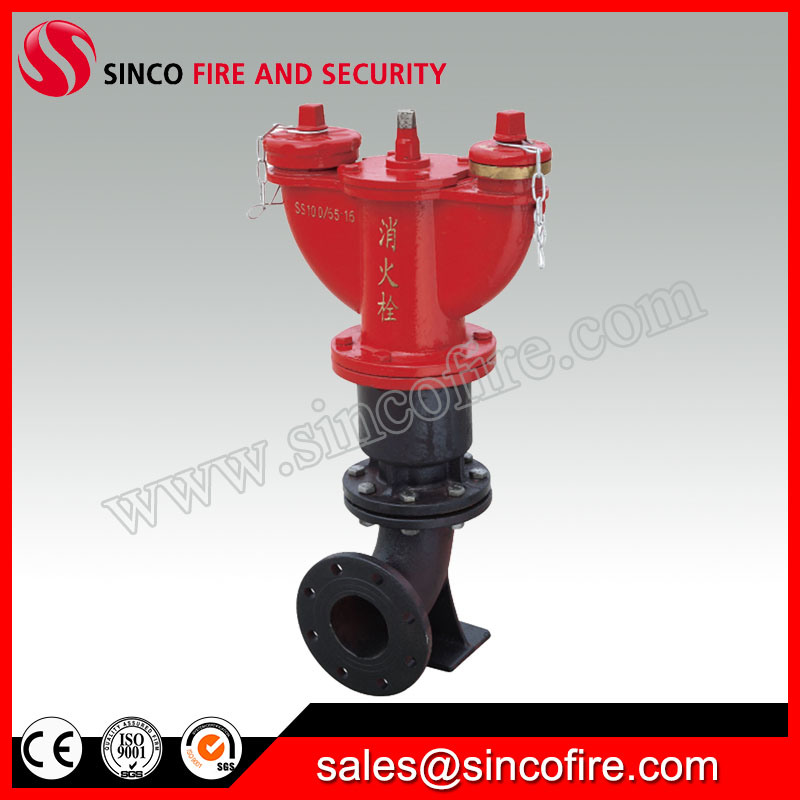

Outdoor Underground Fire Hydrant for Fire Fighting

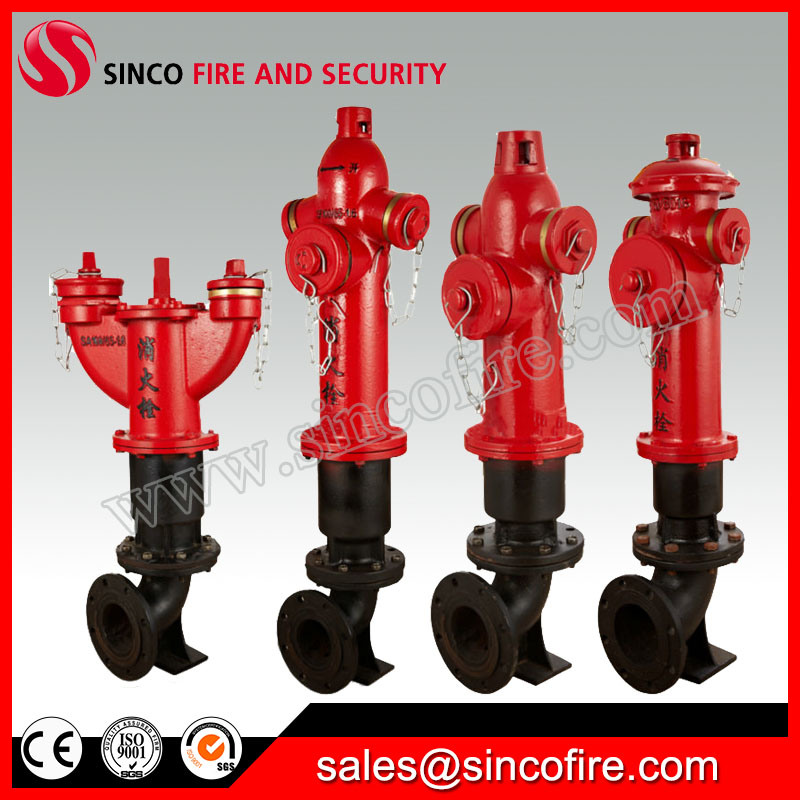

Outdoor Underground Fire Hydrant for Fire Fighting
