Pcl4 Vertical Carbon Steel Foam Chamber

Quantity:



Inquire Add to Basket

Port:
Xiamen, China
Production Capacity:
5000pieces/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Model NO.:
PC/PCL
Inlet:
Dn50/65/80/100,etc
Outlet:
Dn50/65/80/100,etc
Color:
Red/Yellow/etc.
Trademark:
SINCO/OEM
Transport Package:
Wooden Cases
Specification:
PC4/8/16/24 PCL4/8/16/24
Origin:
Fujian
HS Code:
8424100000
Type:
Vertical/Horizontal
Flow Rate:
4~24L/S
Working Pressure:
0.3MPa~0.6MPa
Foam Expansion Ratio:
More Than 6%
Material:
Carbon Steel
Flange Connection:
ANSI/BS/DIN/JIS,etc

Product Description

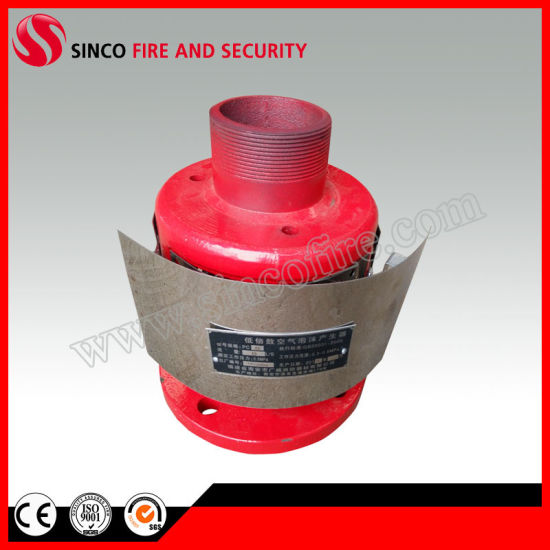

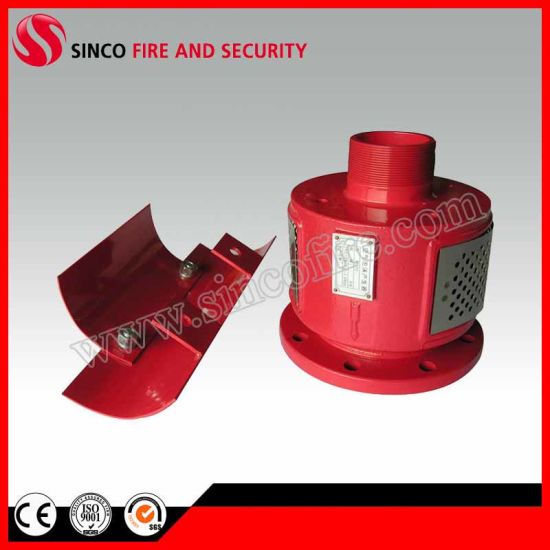

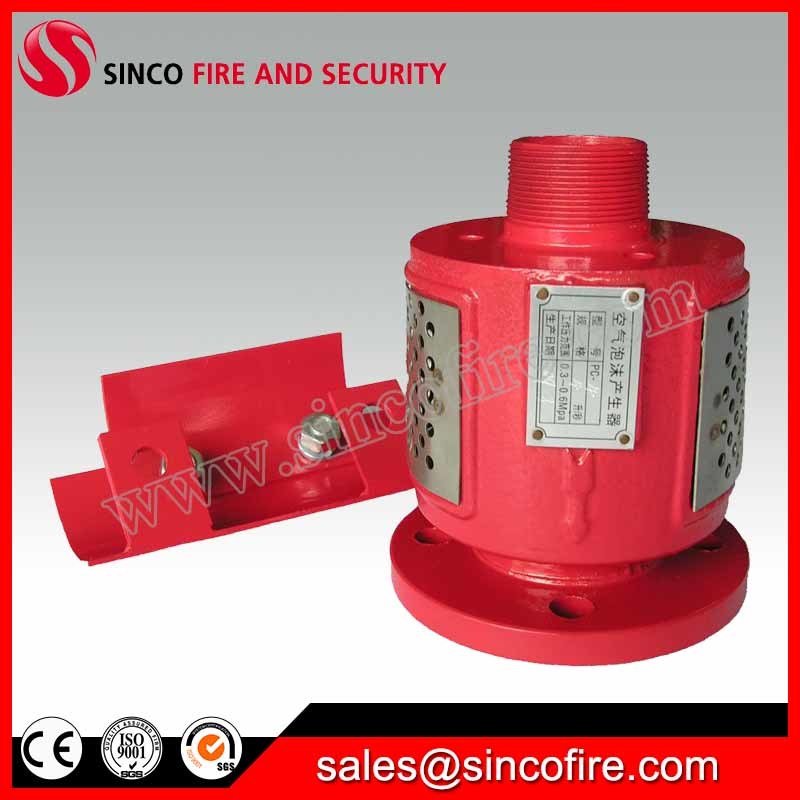

PCL4 Vertical Carbon Steel Foam Chamber
Introduction
Designed as air aspirating discharge devices, foam generator is used principally for the protection of dikes, open floating-roof storage tanks, and rim seals, where low-velocity foam streams are desired. Foam generator generally is installed in the line of a semi-fixed or fixed foam fire-protection system, mounted either horizontally or vertically.

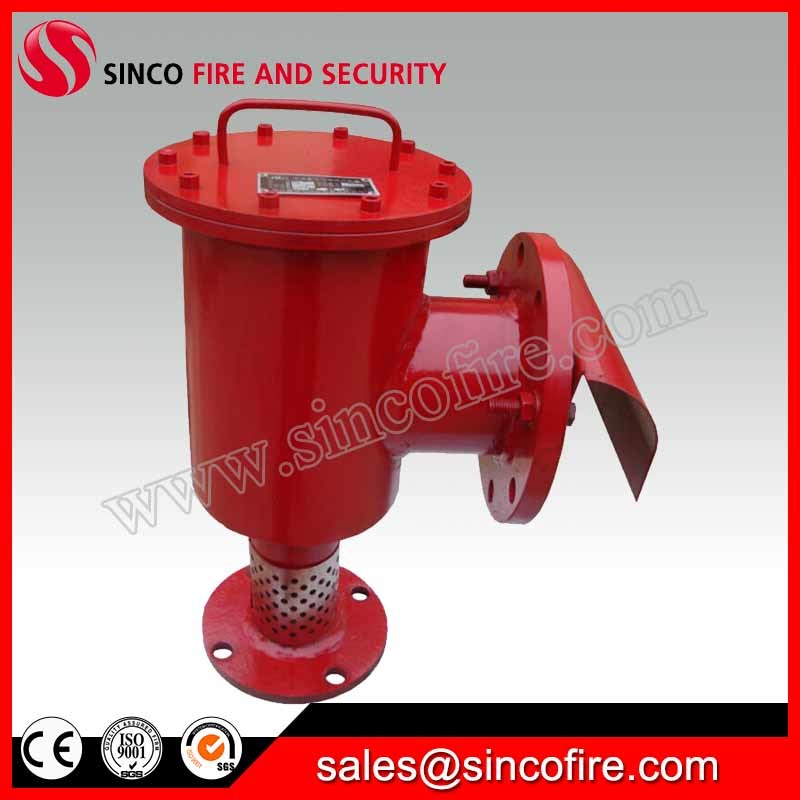

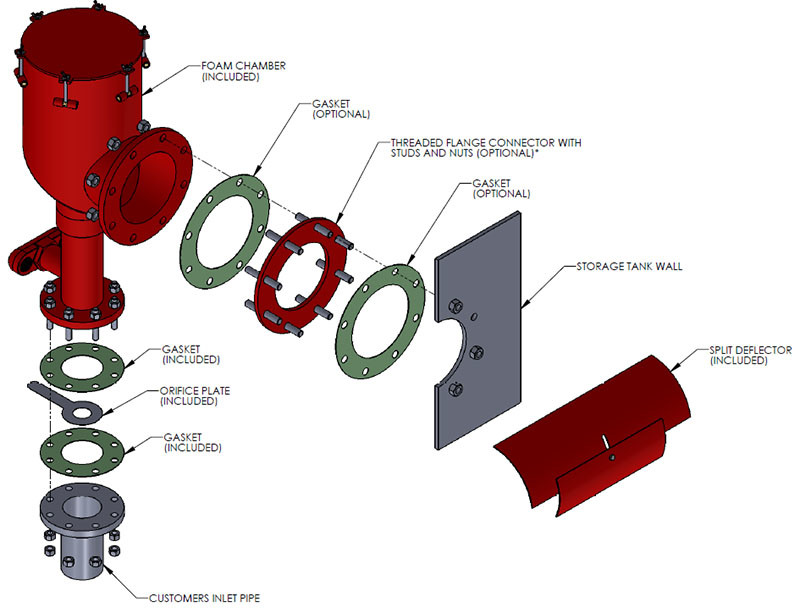

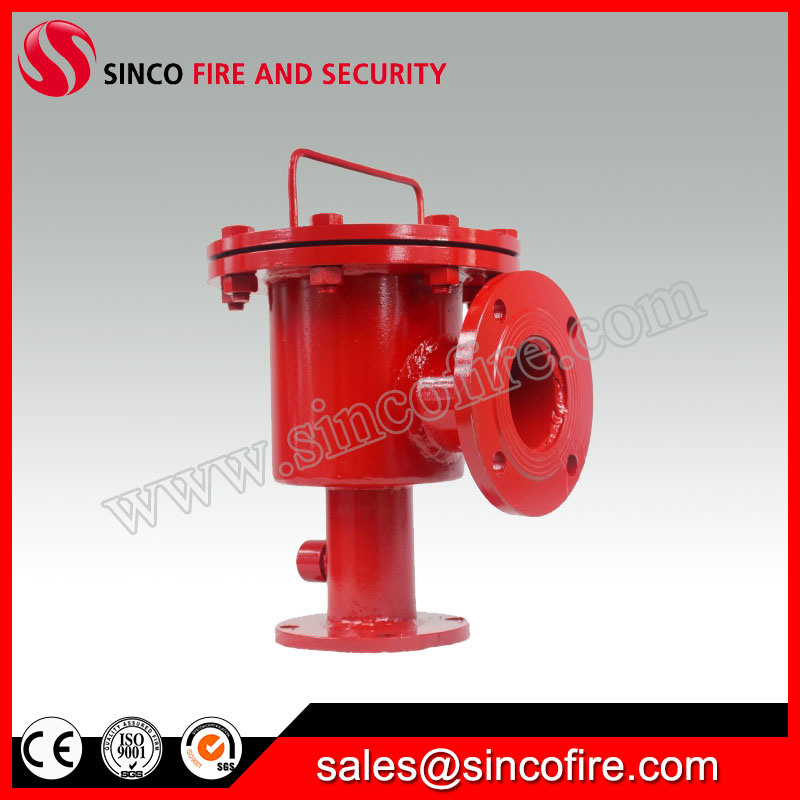

The foam chambers consist of a foam expansion chamber and an integral foam maker with a stainless steel screened air inlet. Each chamber includes an orifice plate, two inlet gaskets, vapor seal assembly, cover gasket, and an outlet gasket. The required deflector (split or shallow) and optional mounting pad assembly are sold separately.
Pcl4 Vertical Carbon Steel Foam Chamber

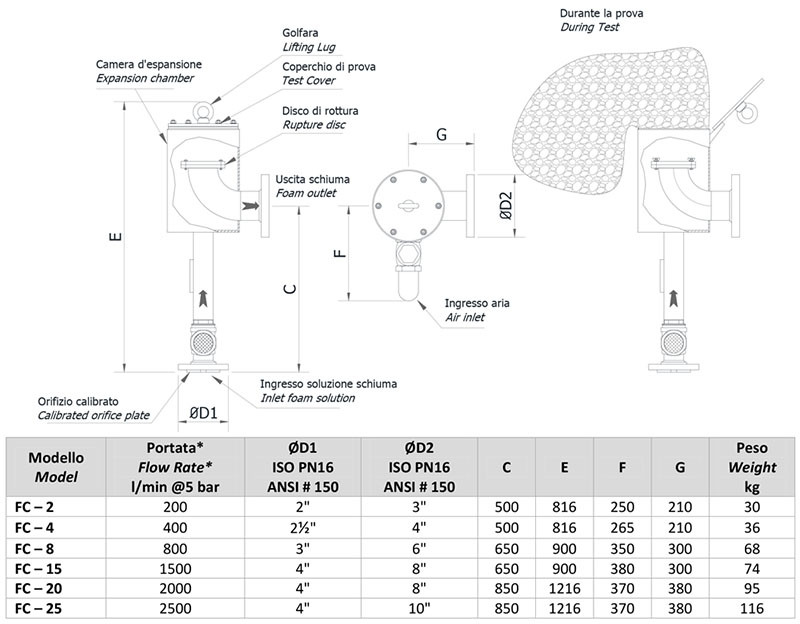

Specification

Size	Working pressure Mpa	Rate flow mixture liquid(L/S)	Foam expansion	Flow series (k)	Inlet flange	Outlet flange	Height (mm)
PCL4	0.3-0.6	4	≥6	107	50	65	155
PCL8		8		215	65	80	160
PCL16		16		429	100	125	185
PCL24		24		644	125	150	200

Photoes
