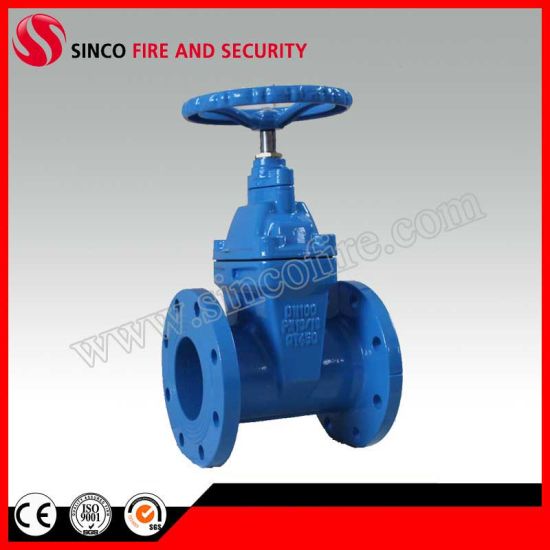

Pn16 Resilient Seated Non Rising Stem Wedge Gate Valve

Quantity:
  • Xiamen, China

  • 20000 Sets Per Month

  • L/C, T/T, D/P, Western Union, Paypal

  • Z45X/RVHX

  • Outside Gate Valve

  • Regulation, Safety, Emptying, Drain, Flow Control

  • DIN/BS/ANSI/GB etc.

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 80 Celsius Degree

  • Water, Sewage, Oil, Gas etc

  • Pn10/16/25

  • Blue/Red

  • Blank

  • Wooden Case

  • DN40-DN600

  • Fujian

  • 8481801090

  • Straight-through

  • Cast Iron/Ductile Iron/Stainless Steel

  • Flange

  • Low Pressure

  • Manual

  • Wedge Gate Valve

PN16 resilient seated non rising stem wedge gate valve

Introduction
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids for sump pump.

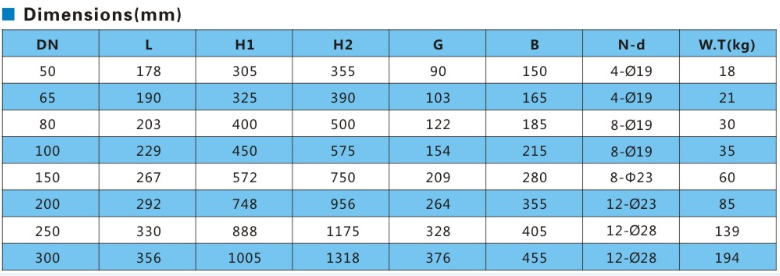

Specification
Pn16 Resilient Seated Non Rising Stem Wedge Gate Valve

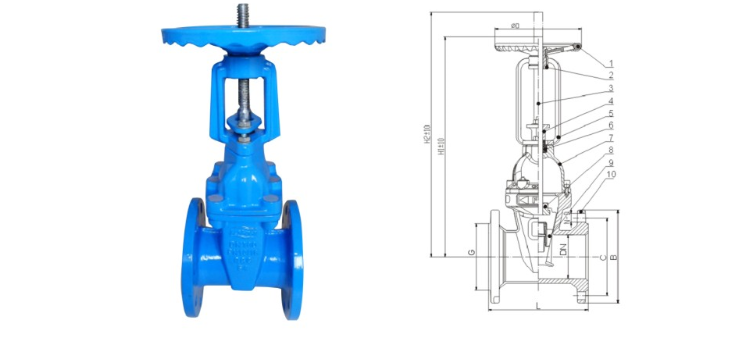

Materials of major parts:
No. Part material
1 Body Ductile cast iron
2 Disc Ductile cast iron packed with NBR
3 Bolt Carbon Steel/Stainless Steel
4 Bonnet Gasket EPDM/NBR
5 Bonnet Ductile cast iron
6 Stem Stainless Steel
7 O-ring EPDM/NBR
8 Thrust bearing Brass
9 Gland Ductile cast iron
10 Dust proof gasket EPDM/NBR
11 Hand wheel Ductile cast iron
Pn16 Resilient Seated Non Rising Stem Wedge Gate Valve
Pn16 Resilient Seated Non Rising Stem Wedge Gate Valve

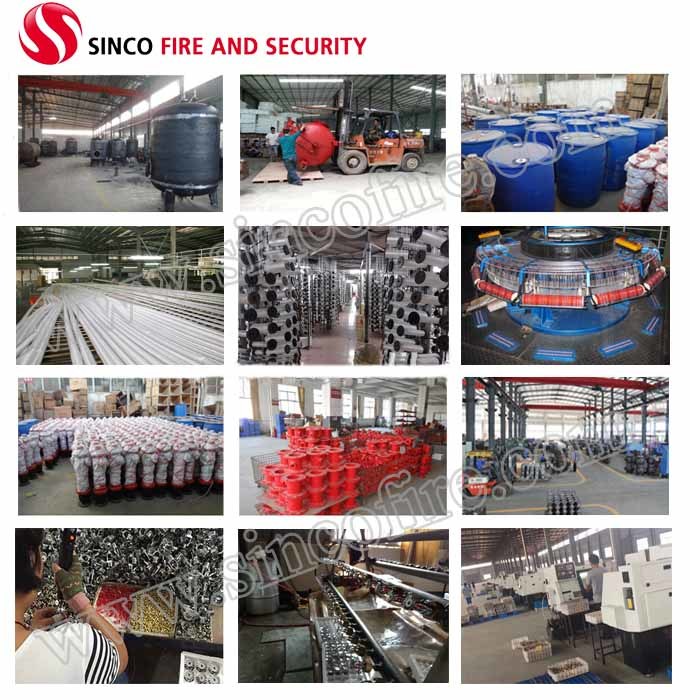

Our Workshop
Pn16 Resilient Seated Non Rising Stem Wedge Gate Valve


Other Fire Fighting Equipment
Pn16 Resilient Seated Non Rising Stem Wedge Gate Valve
