Pump Connector / Expansion Rubber Joint

Quantity:
Inquire Add to Basket

  • Xiamen, China

  • 20000 Pieces Per Month

  • L/C, T/T, D/P, Western Union, Paypal

  • DIN GB ISO JIS Ba ANSI

  • None/OEM

  • Standard Export Package

  • DN32-DN3000

  • Fujian

  • 4009420000

  • Rubber Compensator

  • Axial

  • Flange

  • Carbon Steel/Stainless Steel

  • Pn10/Pn16/Pn25

  • -20 Degreec~+115 Degree

Pump Connector / Expansion Rubber Joint

Introduction
This is mainly applicable for piping systems in commercial and industrial buildings and plants. Applicable fluids are exclusively water including cold water, warm water, cooled water, sea water , etc... This product cannot be used for drinking water, pool water, oil or boiled water.

Specification
Nominal Diameter Length
(mm)		 Axial Displacement
(mm)		 Horizontal Deflection
(mm)		 Angular Deflection
(a1+a2) °
mm inch Extension Compression
32 1.25 95 6 9 9 15
40 1.5 95 6 10 9 15
50 2 105 7 10 10 15
65 2.5 115 7 13 11 15
80 3 135 8 15 12 15
100 4 150 10 19 13 15
125 5 165 12 19 13 15
150 6 180 12 20 14 15
200 8 210 16 25 22 15
250 10 230 16 25 22 15
300 12 245 16 25 22 15
350 14 255 16 25 22 15
400 16 255 16 25 22 15
450 18 255 16 25 22 15
500 20 255 16 25 22 15
600 24 260 16 25 22 15
700 28 260 16 25 22 15
800 32 260 16 25 22 15
900 36 260 16 25 22 15
1000 40 260 18 26 24 15
1200 48 260 18 26 24 15
1400 56 350 20 28 26 15
1600 64 350 25 35 30 10
1800 72 350 25 35 30 10
2000 80 420 25 35 30 10
2200 88 400 25 35 30 10
2400 96 400 25 35 30 10
2600 104 450 25 35 30 10
2800 112 450 25 35 30 10
3000 120 450 25 35 30 1

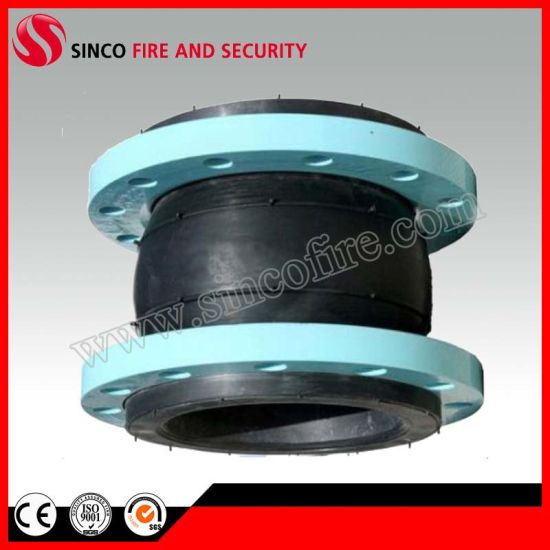

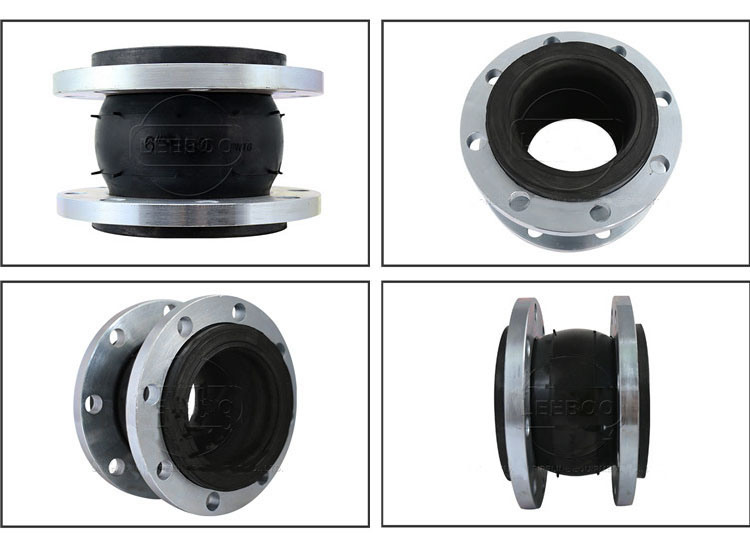

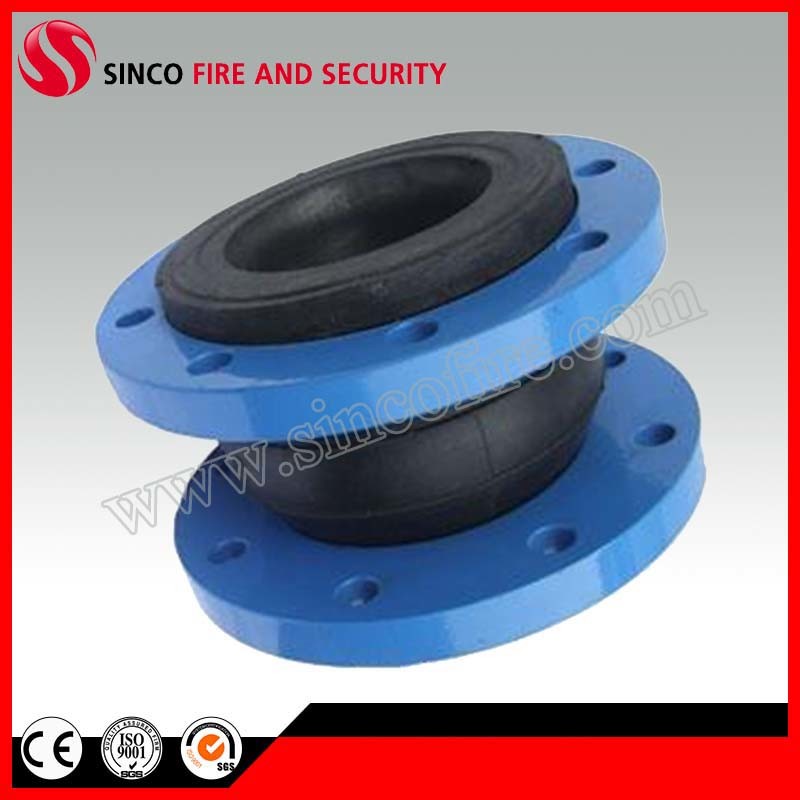

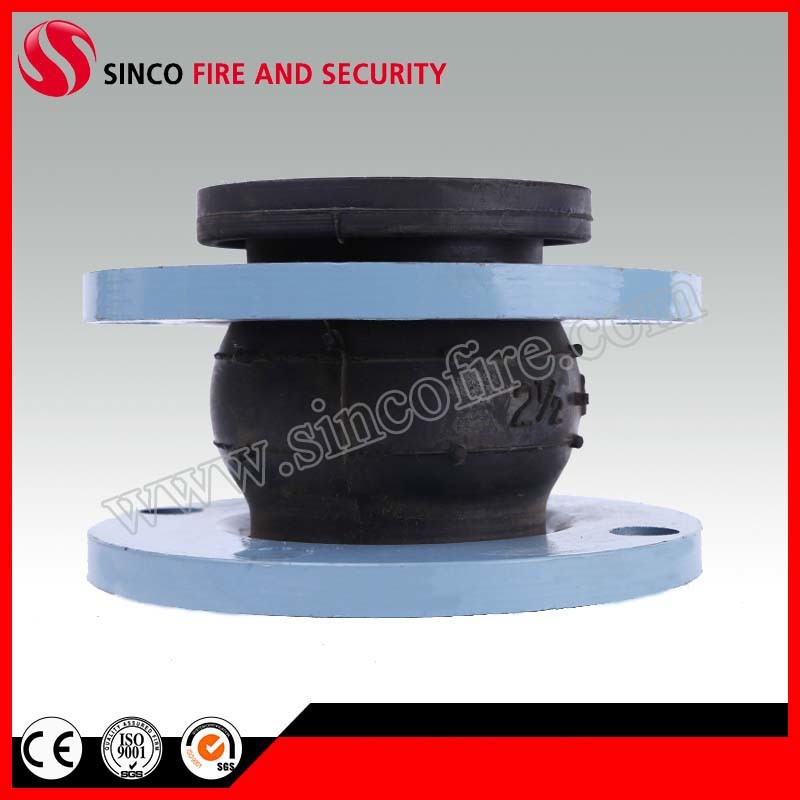

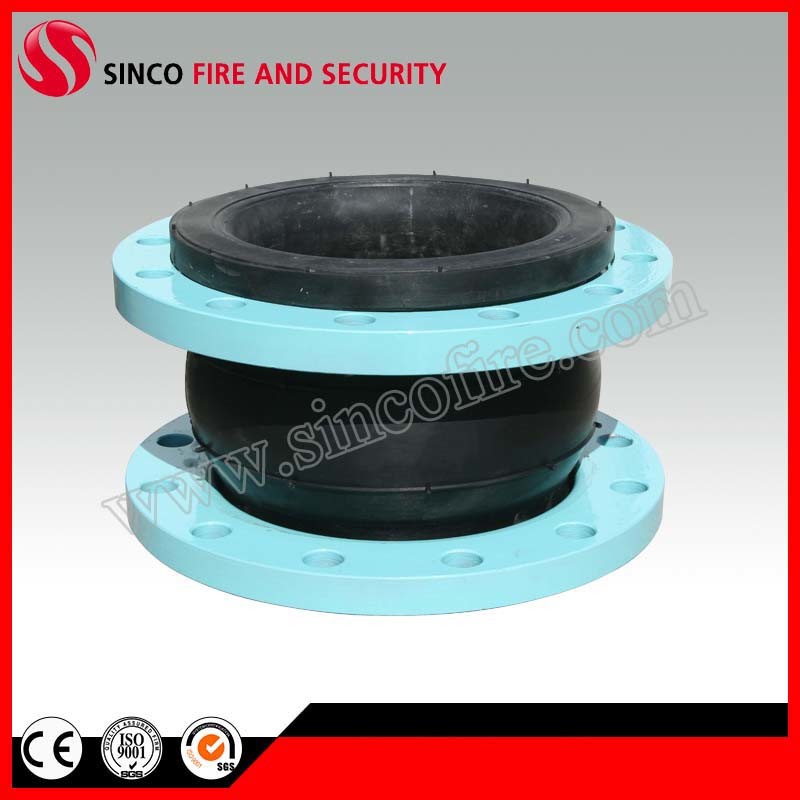

Photoes
Pump Connector / Expansion Rubber Joint
Pump Connector / Expansion Rubber Joint
Pump Connector / Expansion Rubber Joint
Pump Connector / Expansion Rubber Joint
Pump Connector / Expansion Rubber Joint
