Screw Type Pressure Regulating Oblique Fire Hydrant Landing Valve
Screw Type Pressure Regulating Oblique Fire Hydrant Landing Valve
Screw Type Pressure Regulating Oblique Fire Hydrant Landing Valve
Screw Type Pressure Regulating Oblique Fire Hydrant Landing Valve
Screw Type Pressure Regulating Oblique Fire Hydrant Landing Valve
Screw Type Pressure Regulating Oblique Fire Hydrant Landing Valve
Screw Type Pressure Regulating Oblique Fire Hydrant Landing Valve
Share to:

Screw Type Pressure Regulating Oblique Fire Hydrant Landing Valve

Quantity:
Inquire Add to Basket

  • Xiamen, China
  • 10000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • 2.5"
  • Cast Iron with Red/Black Finished
  • 2.5" Bsp/BSPT
  • 2.5" BS336
  • 1.6MPa
  • SINCO/OEM
  • Standard Export Package
  • 1.5"-2.5"
  • Fujian
  • 84818
  • Pressure Regulating Landing Valve
  • Normal Fire Hydrant
  • Ordinary Bolt
  • Low Fire Hydrant
  • Ordinary
  • Brass
Screw type Pressure regulating oblique fire hydrant landing valve

Description
Pressure regulating oblique landing valves are suitable for installation on wet risers in buildings for fire fighting purposes, permanently charged with water from a pressurized supply. These landing valves are pressure reducing type designed to privide a range of outlet pressure (5 bar- 8 bar). The landing valves are classified under high pressure and are suitable for use at nominal inlet pressure up to 20 bar and for working temperature range from 0 ºC to 38 ºC .

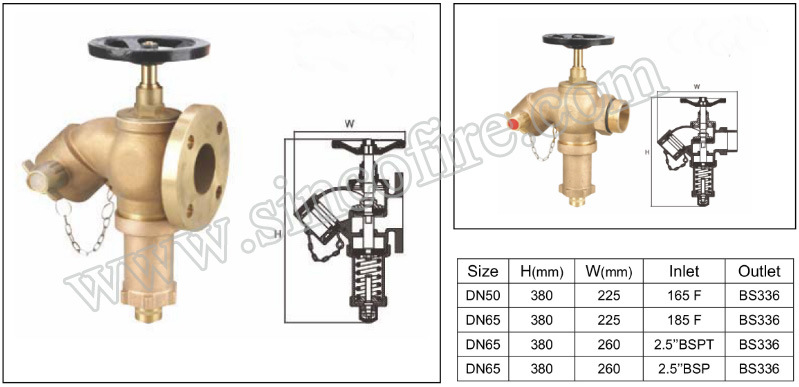

Technical Specification
Body Copper Alloy
Handwheel Grey Cast Iron/Aluminum
Black Cap Copper Alloy or Plastic
Inlet Flanged/BSP Screwed
Outlet Female instantaneous to BS336 and other connections
Surface Red or Natural Brass
Working Pressure 16 bar
Test Pressure 30 Bar
Fully Open 4.5 Turn
Inlet pressure 20bar, regulating outlet static pressure 5-8 bar
Inlet pressure 20bar, regulating outlet static pressure >20 bar
