Selectable Gallonage Fire Nozzle

Quantity:



Inquire Add to Basket

Port:
Xiamen, China
Production Capacity:
500pieces/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Model NO.:
1.5"-2.5"
Multiple Use Water Cannon Type:
Spray Mist Jets
Flow Pattern:
Jet Spray Nozzle
Flow Rate:
Auto Adjustable
Working Pressure:
7 Bar(100psi)
Max Pressure:
25 Bar(360psi)
Coupling Type:
Storz,BS336,Russian,Japanese,etc
Head Cover:
Rubber
Nozzle Body:
Aluminum
Shooting Distance:
32-38m
Trademark:
SINCO/OEM
Transport Package:
Standard Export Package
Specification:
1.5", 2", 2.5"
Origin:
Fujian
HS Code:
842421
Water Form:
Multiple Use Water Cannon
Material:
Alumium & Plastic
Pressure Range:
Low-Pressure Water Gun
Jet:
Intensive Jet
Functional Level:
Ⅲ
DC Gun Type:
Switching DC Gun

Product Description

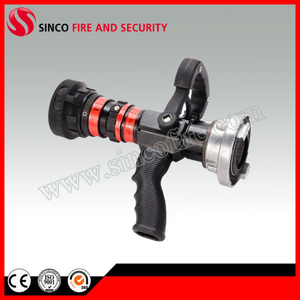

Selectable Gallonage Fire Nozzle

Description
The pistol grip fire hose nozzle is a constant gallonage nozzle(flow remains the same in all patterns),with multiple flow settings for operator flow control. It has four flow classes,115-230-360-475 LPS,and it is available both for straight stream,fog spray and flush without shutting down.
Main Features
1) Pattern Identification.
2) Hard Anodized Aluminum labels,Laser Engraved.
3) Simple to operate (1/4 turn from straight stream to fog)
4) Raised lug marks straight stream for limited visibility operations
5) Easy to service and repair.
6) CCC certificate.
7) Compatible with Quick Attach Foam Tube
Selectable Gallonage Fire Nozzle

Technical Specification

Weight (excl.coupling)	1.6 kgs
Material	Body	Lightweight hard anodized aluminum
	Valve	ABS
	Handle	ABS
	Bumper	Rubber
Working pressure	7 bar (100 psi)
Max. pressure	25 bar (360 psi)
Max. fog angle	120 °
Throw range	40 meter @ 7 bar
Flow range (selectable)	115 LPS @7 bar
	230 LPS @7 bar
	360 LPS @7 bar
	475 LPS @7 bar
	Flush
Inlet size	1.5 inch, 2 inch, 2.5 inch (Optional).

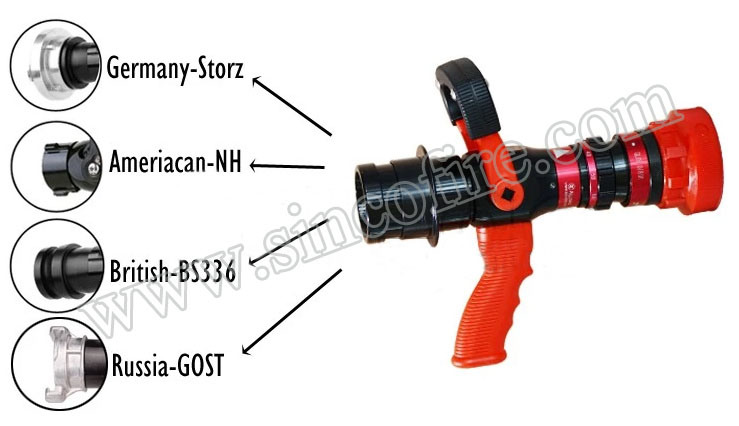

Connection coupling	Storz,BS,NH,GOST,etc.

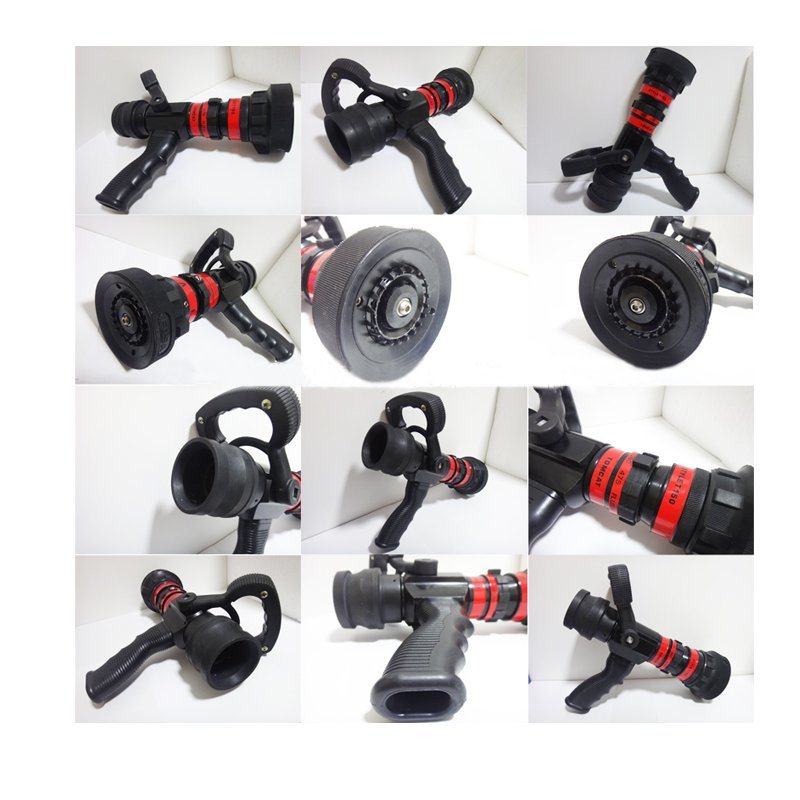

Photoes

Other Products Recommendation
Selectable Gallonage Fire Nozzle

Our Company
We could supply fire hose, fire hose fittings, spray nozzle, coupling, automatic fire sprinkler system products, gate valves, check valves, ball valves, etc. All these products strictly confirming to JIS, API ans BS standards. All of our products comply with international quality standards and are greatly appreciate in avariety of markets around world. Our factory is covering an area of 15900 square meters, we now over 300 workers. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarteen total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a globe sales network reaching the North America, South America, Mideast, Southeast Asia, East Europe, etc.

FAQ
1. Could you supply the samples?
Free samples always ready if the value is within our purview.
2.Do you have the MOQ?
For conventional products, Low MOQ.
3. Can you add some logo on the products?
Yes. We could OEM and design your logo.
4. Are you able to design or explore a new products for us?
Yes, we are able to, if the clients could supply the drawings or samples.
