UL FM Approved Fire Sprinkler Flexible Hose

Quantity:
  • Xiamen, China

  • 100000PCS/Week

  • L/C, T/T, D/P, Western Union, Paypal

  • 600mm-1820mm

  • 24" 28" 40" 48" 60" 67"

  • 1" NPT

  • 1/2" 3/4"

  • Braided/Unbraided

  • Stainless Steel 340

  • Inc-Plated Steel

  • 175 Psi

  • 225 Fahrenheit Degree

  • SINCO

  • Standard Export Package

  • 700mm, 1000mm, 1220mm, 1520mm, 1700mm, 1820mm

  • Fujian

  • 8424899990

  • Upright/Pendent

  • Closed

  • Wet Alarm Valve

  • Can′t Automatically Opened and Closed

  • Wet Fire Sprinkler System

  • Seat Type

UL fm approved fire sprinkler flexible hose

Advantage

1.National Fire Protection Association (NFPA)
2.American Society for Testing and Methods (ASTM)
3.Factory Mutual (FM), FM Class No, 1637:
4.Underwriter's Laboratories, Inc. (UL), UL 2443:

Specification
Lengths 24" 28" 40" 48" 60" 67"
Outlet Reducers 1/2" 3/4"
Types Braided / Unbraided
Hose/ Braid Stainless Steel 304
Nut & Nipple Zinc-Plated Steel
Sealing Gasket / Isolation Ring EPDM / NYLON

Technical Date
Max. Temp. 225ºF
Operating Pressure 175 psi
Connections Inlet 1" NPT
Outlet 1/2" 3/4"
Min. Bend Radius 4"(UL) / 8"(FM)
K-Factors 1/2" Outlet 5.6
3/4" Outlet 8.0

Photoes

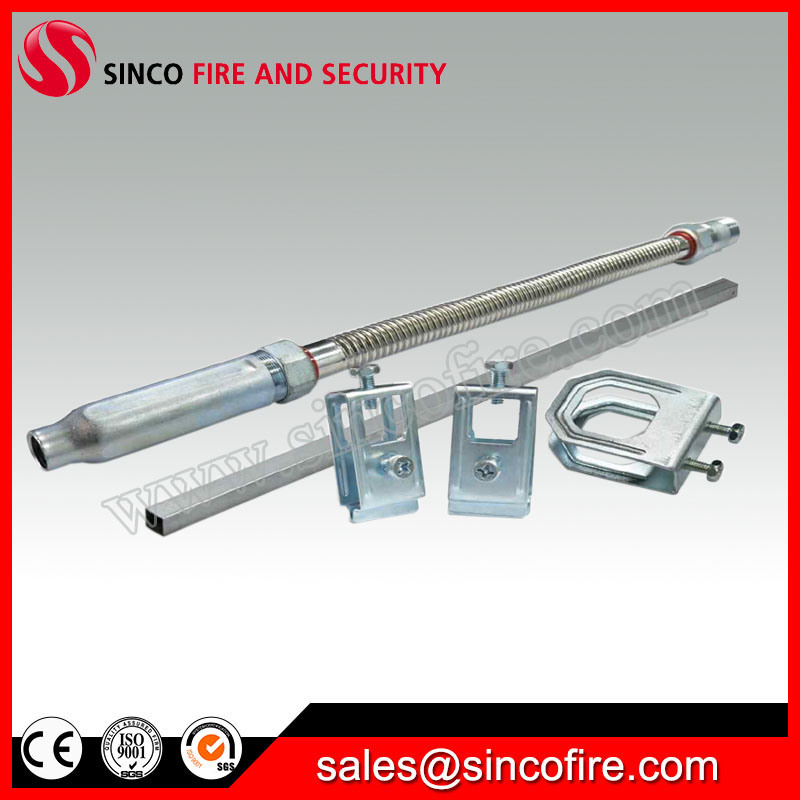

UL FM Approved Fire Sprinkler Flexible Hose

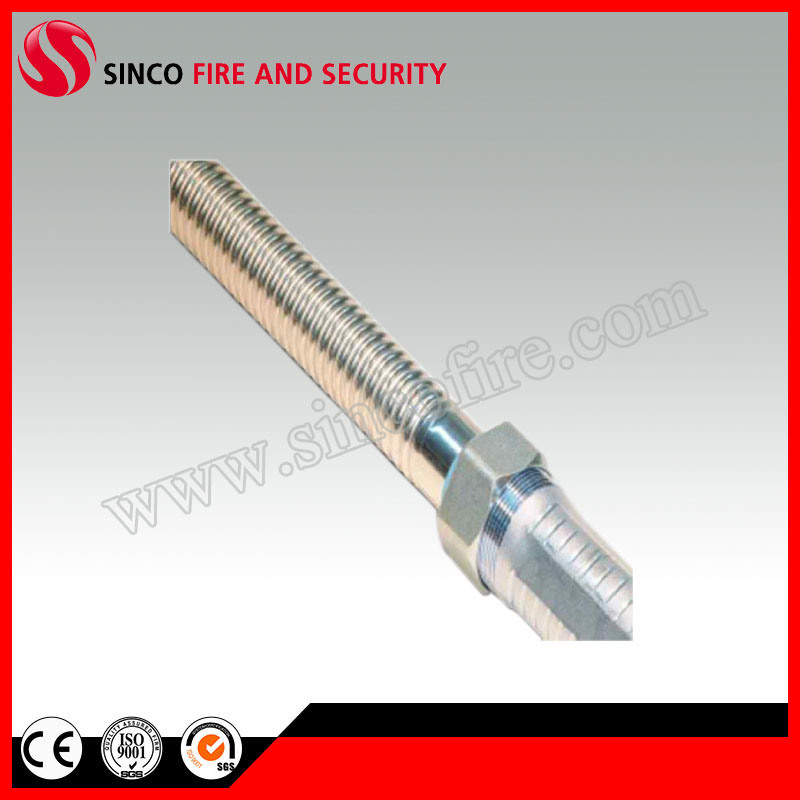

UL FM Approved Fire Sprinkler Flexible Hose

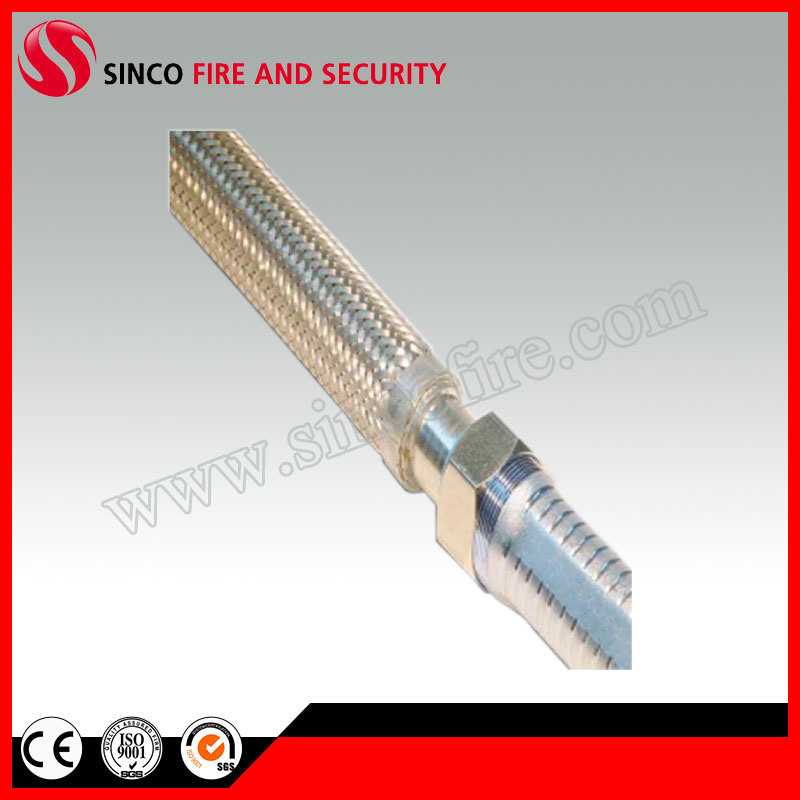

UL FM Approved Fire Sprinkler Flexible Hose
UL FM Approved Fire Sprinkler Flexible Hose
