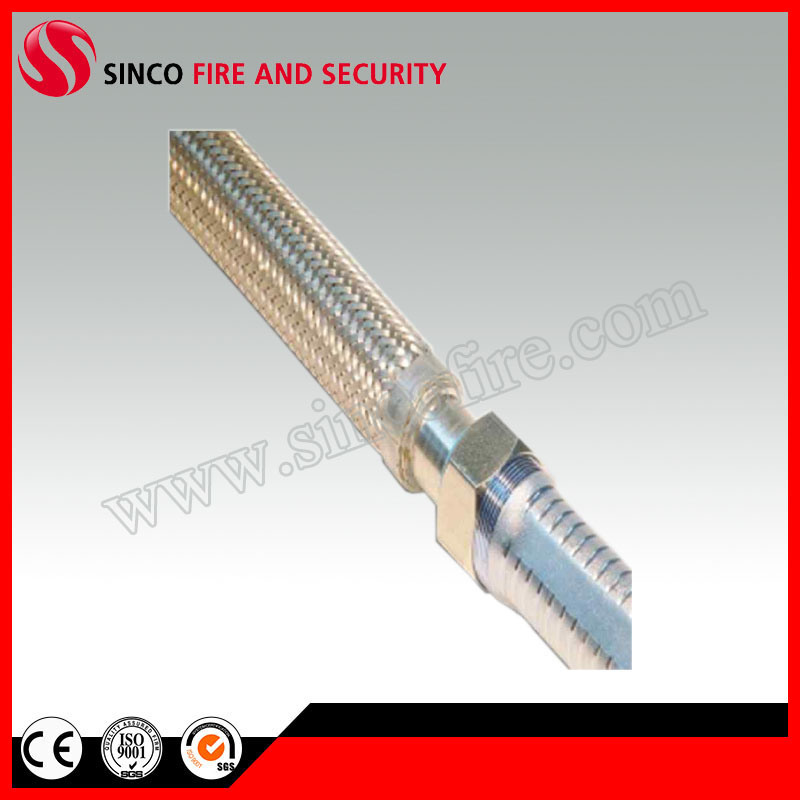

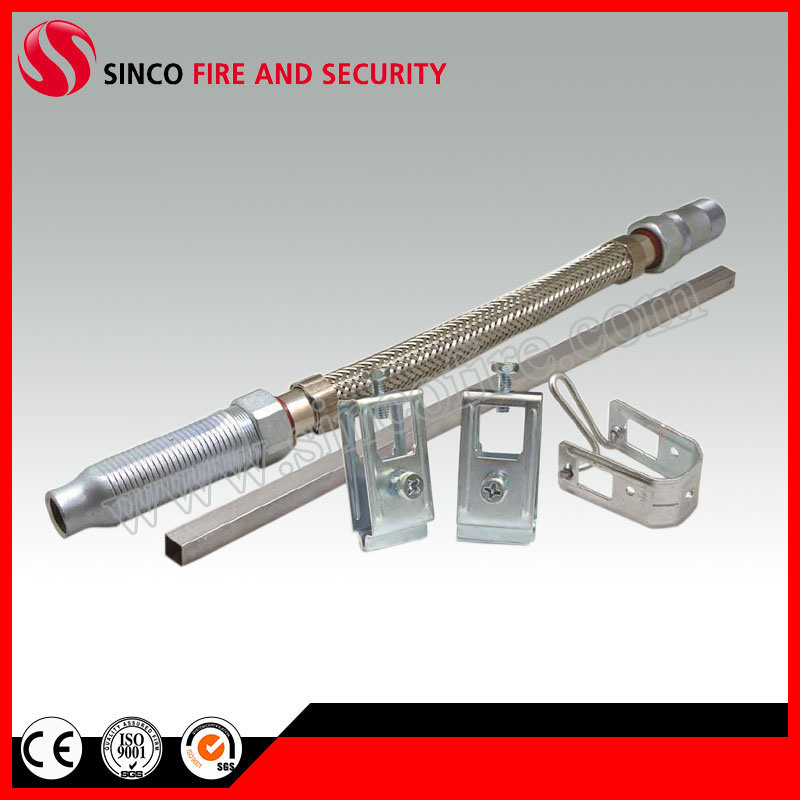

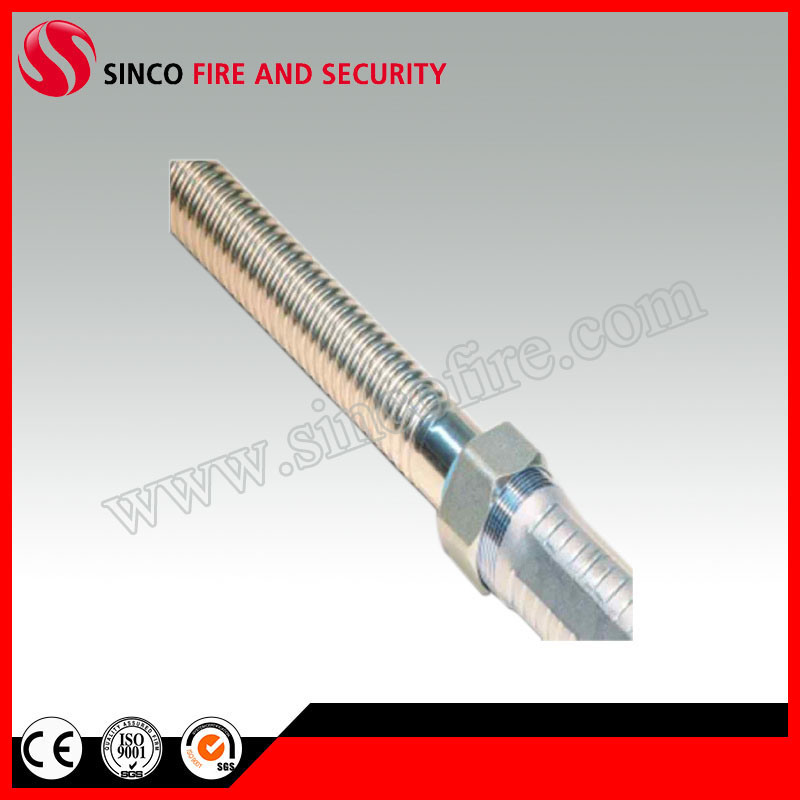

UL/FM Stainless Steel Flexible Sprinkler Hose
Advantage 1.Fast and easy installation (no pipe cutting, measuring, threading, or welding)
2.Save time!
3.Less risk of water leakage
4.No corrosion - 100% stainless steel
5.Can be installed without machines and power tools
Certificate 1.National Fire Protection Association (NFPA) 2.American Society for Testing and Methods (ASTM) 3.Factory Mutual (FM), FM Class No, 1637: 4.Underwriter's Laboratories, Inc. (UL), UL 2443: Specification | Lengths | 24" 28" 40" 48" 60" 67" |
| Outlet Reducers | 1/2" 3/4" |
| Types | Braided / Unbraided |
| Hose/ Braid | Stainless Steel 304 |
| Nut & Nipple | Zinc-Plated Steel |
| Sealing Gasket / Isolation Ring | EPDM / NYLON |
Technical Date | Max. Temp. | 225ºF |
| Operating Pressure | 175 psi |
| Connections | Inlet | 1" NPT |
| Outlet | 1/2" 3/4" |
| Min. Bend Radius | 4"(UL) / 8"(FM) |
| K-Factors | 1/2" Outlet | 5.6 |
| 3/4" Outlet | 8.0 |
