Unbraided Flexible Fire Sprinkler Drops

Quantity:
  • Xiamen, China

  • 100000PCS/Week

  • L/C, T/T, D/P, Western Union, Paypal

  • 610mm-1820mm

  • 24" 28" 40" 48" 60" 67"

  • 1" NPT

  • 1/2" 3/4"

  • Braided/Unbraided

  • Stainless Steel 340

  • Inc-Plated Steel

  • 175 Psi

  • 225 Fahrenheit Degree

  • SINCO

  • Standard Export Package

  • 700mm, 1000mm, 1220mm, 1520mm, 1700mm, 1820mm

  • Fujian

  • 8424899990

  • Upright/Pendent

  • Closed

  • Wet Alarm Valve

  • Can′t Automatically Opened and Closed

  • Wet Fire Sprinkler System

  • Seat Type

Unbraided Flexible Fire Sprinkler Drops

Advantage

1.National Fire Protection Association (NFPA)
2.American Society for Testing and Methods (ASTM)
3.Factory Mutual (FM), FM Class No, 1637:
4.Underwriter's Laboratories, Inc. (UL), UL 2443:

Specification
Lengths 24" 28" 40" 48" 60" 67"
Outlet Reducers 1/2" 3/4"
Types Braided / Unbraided
Hose/ Braid Stainless Steel 304
Nut & Nipple Zinc-Plated Steel
Sealing Gasket / Isolation Ring EPDM / NYLON

Technical Date
Max. Temp. 225ºF
Operating Pressure 175 psi
Connections Inlet 1" NPT
Outlet 1/2" 3/4"
Min. Bend Radius 4"(UL) / 8"(FM)
K-Factors 1/2" Outlet 5.6
3/4" Outlet 8.0

Photoes
Unbraided Flexible Fire Sprinkler Drops

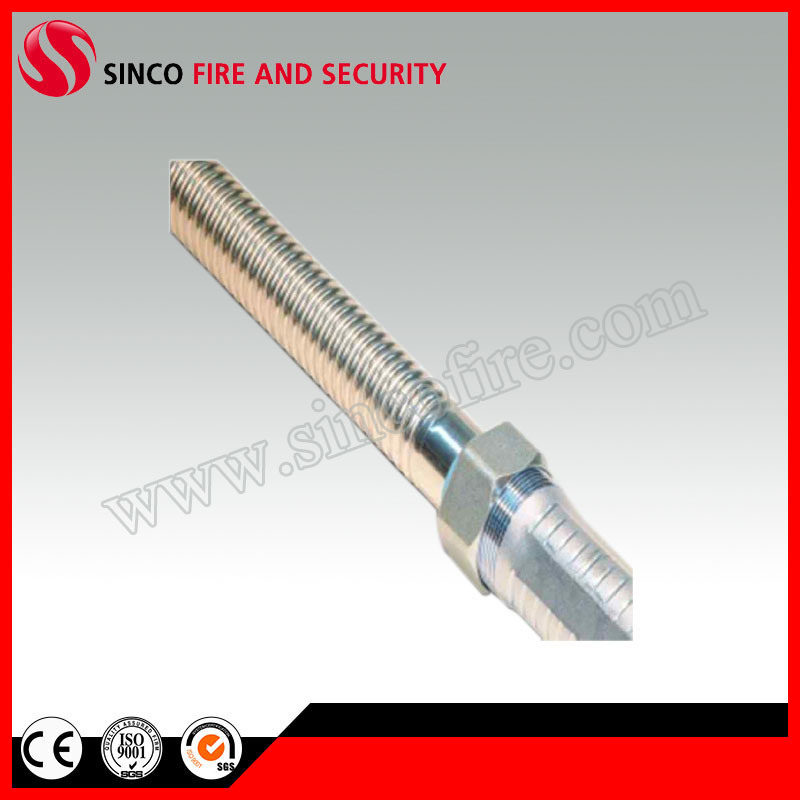

Unbraided Flexible Fire Sprinkler Drops
Unbraided Flexible Fire Sprinkler Drops

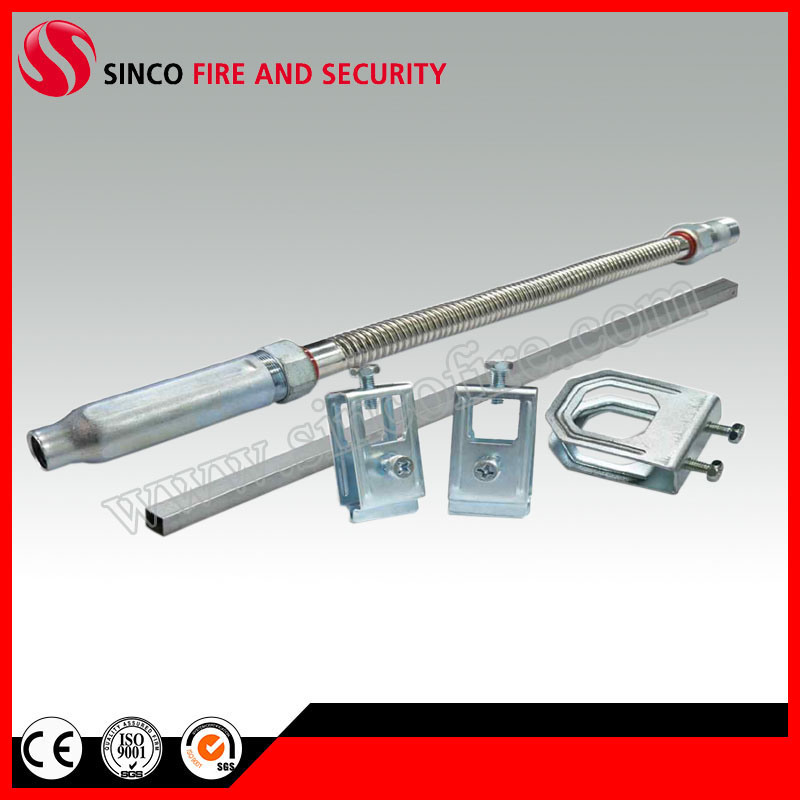

Unbraided Flexible Fire Sprinkler Drops
