Us/Nh Type Fire Fighting Hose Couplings

Quantity:
  • Xiamen, China
  • 100000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • 1.5"-2.5"
  • Neutral/OEM
  • 1"-8"
  • Quanzhou, Fujian
  • 84818
  • GB8013-2005, CCCF, CCC
  • Chrome Plated/Brass
  • Aluminum/Brass
  • British/John Morris/ American/Nh/Nakajima(Machino)
  • Fire Hose Coupling
  • Bags/Cartons
Us/NH Type Fire Fighting Hose Couplings

Description
A Fire hose coupling is connector on the end of hose to connect or couple it with another hose or with a tap or hose appliance, such as irrigation sprinkler. It is usually made of steel,brass,stainless steel,aluminium or plastic.Used for combining water band with water band ,fire hydrant ,water lance and the fire-fighting truck so that they are to supply water or foam misture for putting out fire.

Technical Specification
Model KD KY KN KJ
Diameter(mm) DN50 DN65 DN80 DN50 DN65 DN50 DN65 DN50/
DN65
DN65/
DN80
Working Pressure(Mpa) 1.6
Testing Pressure(Mpa) 2.4
Available Medium Clear Water, Foam mixed liquid
Fire Hose Coupling Type Inlet Outlet


British/John Morris Coupling
2.5"BS336 Φ63.5
2"BS336 Φ51
1.5"BS336 Φ38
2.5"BS336 Φ51
2.5"BS336 Φ38
2"BS336 Φ38
Fire Hose Coupling Type Inlet Outlet

American(ANSI Pin)Fire Hose Coupling
2.5"NH Φ63.5
2"NH Φ51
1.5"NH Φ38
Fire Hose Coupling Type Inlet Outlet

Nakajima(Machino) fire hose coupling
2.5" Φ63.5
2" Φ51
1.5" Φ38
Fire Hose Coupling Type Inlet Outlet

Forestry Fire Hose Coupling
1.5" Φ38
1.5" 1.5" BSP
1.5" 1.5" NPSH
1.5" F1.5" BSP
Fire Hose Coupling Type Inlet Outlet

Gost(Russian) Fire Hose Coupling
2" Φ50
2.5" Φ70
3" Φ80
4" Φ100
Fire Hose Coupling Type Inlet Outlet
UNI Fire Hose Coupling UNI70 Φ70
UNI45 Φ45
Fire Hose Coupling Type Inlet Outlet
Storz Fire Hose Coupling 4" STORZ Φ100
3" STORZ Φ75.5
2.5" STORZ Φ63.5
2" STORZ Φ51
1 3/4" STORZ Φ44.5
1" STORZ Φ38

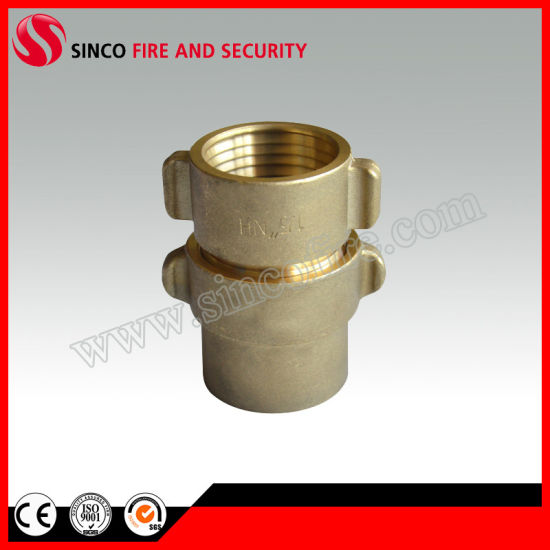

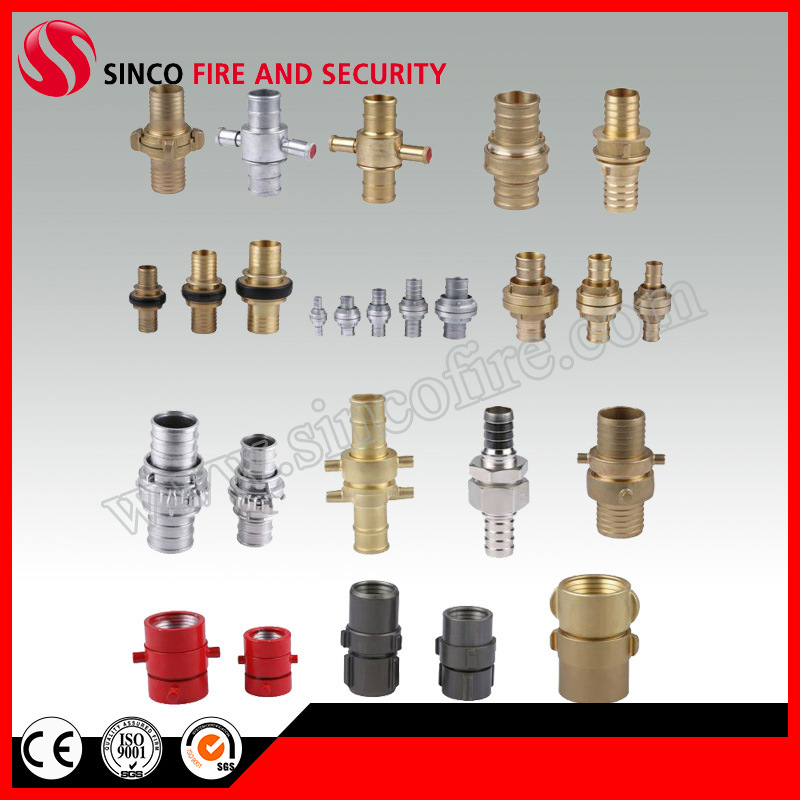

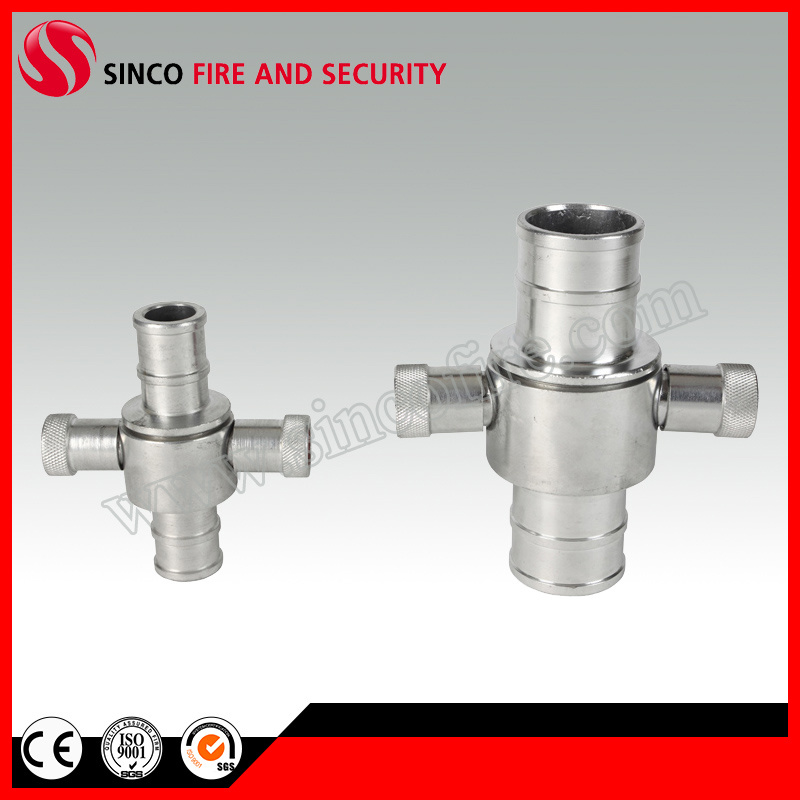

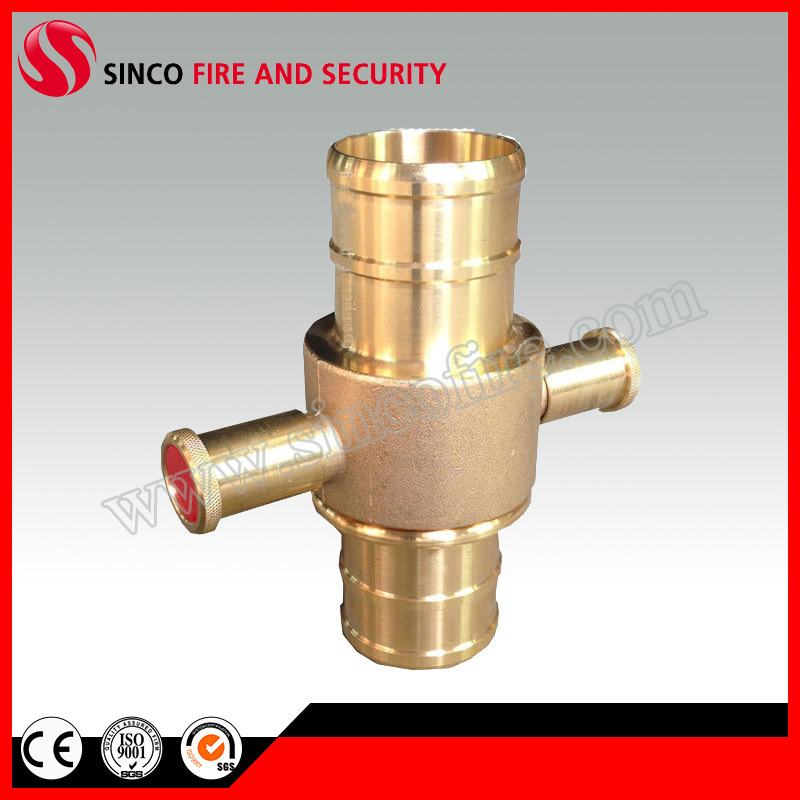

Photoes
Us/Nh Type Fire Fighting Hose Couplings
Us/Nh Type Fire Fighting Hose Couplings
Us/Nh Type Fire Fighting Hose Couplings

Other Fire Fighting Equipment
Us/Nh Type Fire Fighting Hose Couplings
