Vertical Fire Foam Bladder Tank for Fire Fighting Foam Tank

Quantity:
Inquire Add to Basket

  • Xiamen, China

  • 500sets/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • PHYM

  • Red or Customized

  • Ball Valve and Others

  • SINCO/OEM

  • Wooden Pallet or Wooden Case

  • 200-10000L

  • Fujian, China

  • 8424100000

  • Vertical/Horizontal

  • 0.6MPa~1.2MPa

  • 200~10000L

  • 3% or 6% Afff

  • 4-154L/S

  • 3"-10"

Vertical fire foam bladder tank for fire fighting foam tank
Introduction
Foam bladder tank, together with ratio controllers, form a balanced pressure proportioning system used to mix water and fire fighting foam together to generate an effective extinguishing medium.The bladder tank technology is a mixing method allows the water/foam ratio to remain stable by automatically adjusting to the variable flow rates and pressure conditions that may occur during system operation.This feature makes bladder tanks particularly suitable for multiple hazard systems, sprinkler systems and any other system operating under variable, non predictable, flow and pressure conditions.
Function

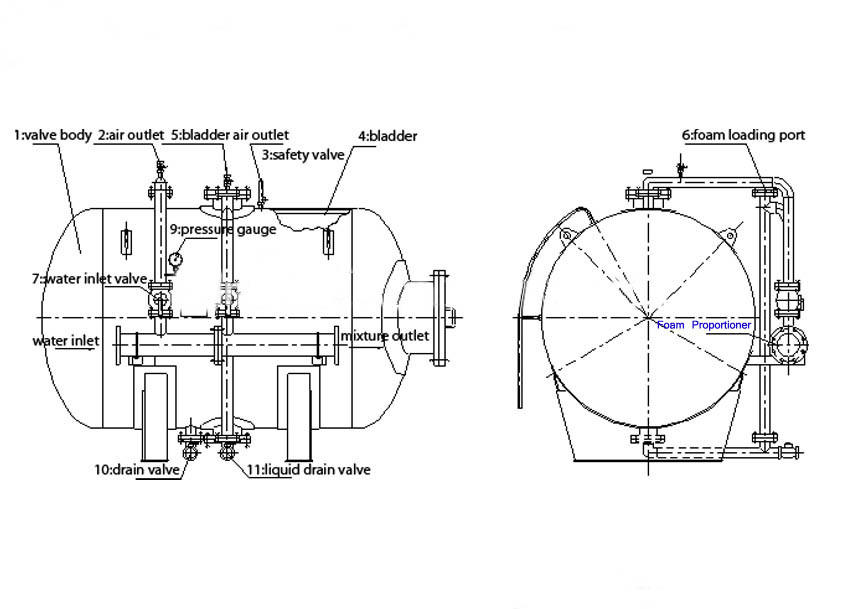

The bladder tank is a carbon steel pressure vessel containing an elastomeric separation bladder between the water and foam concentrate. The bladder permits water pressure to be transferred to the foam concentrate without the two fluids mixing together. A ratio controller generates a water pressure drop by means of a reduced cross section where the water stream passes through it. As the foam concentrate pressure is higher than the pressure at the ratio controller, the foam starts flowing towards the water and mixing at a calibrated rate, which is dependant on the water flow rate.
Specification
Model No. PHY4 PHY8 PHY16 PH24 PHY32 PHY40 PHY64 PHY72
Diameter(mm) 50 65 80 100 100 150 150 150
Mixing Ratio 3% or 6%
Rated Working Pressure 1.2 Mpa
Working Pressure Range 0.3~1.2
Rated Flow(L/s) 4 8 16 24 32 40 64 72
Flow Range(L/s) 1~4 2~8 3~16 4~24 8~32 12~40 15~64 17~72
Pressure Drop(Mpa) ≤0.2
Vertical Fire Foam Bladder Tank for Fire Fighting Foam Tank
Vertical Fire Foam Bladder Tank for Fire Fighting Foam Tank

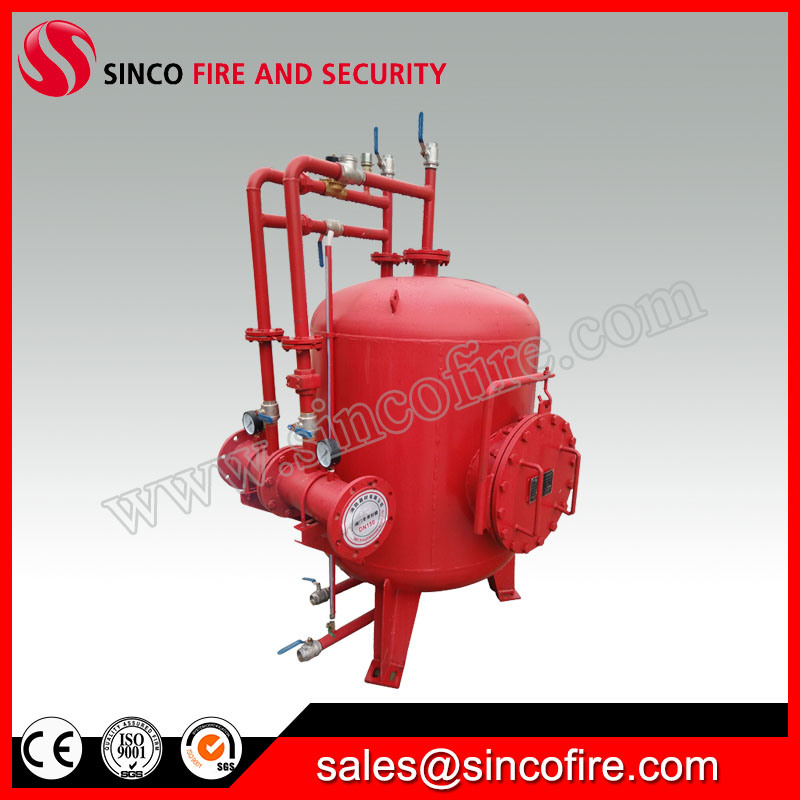

Photoes
Vertical Fire Foam Bladder Tank for Fire Fighting Foam Tank
Vertical Fire Foam Bladder Tank for Fire Fighting Foam Tank
Vertical Fire Foam Bladder Tank for Fire Fighting Foam Tank

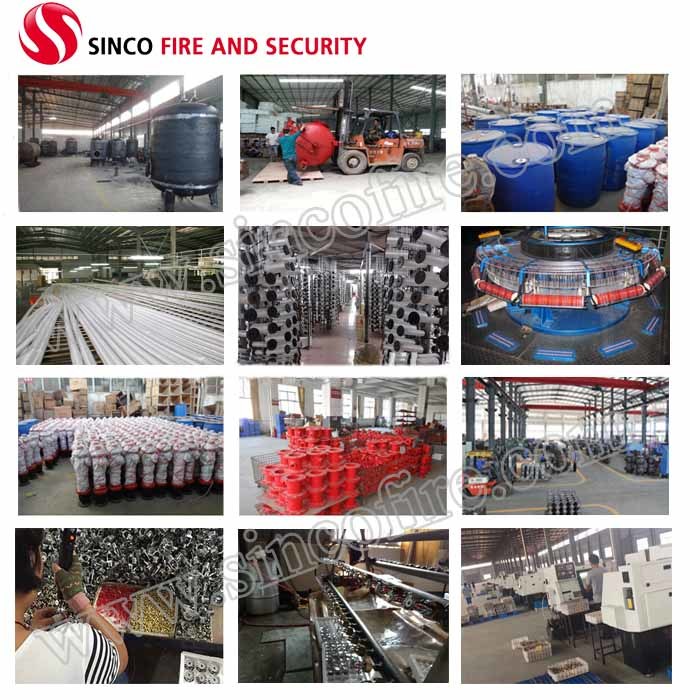

Other Fire fighting equipment
