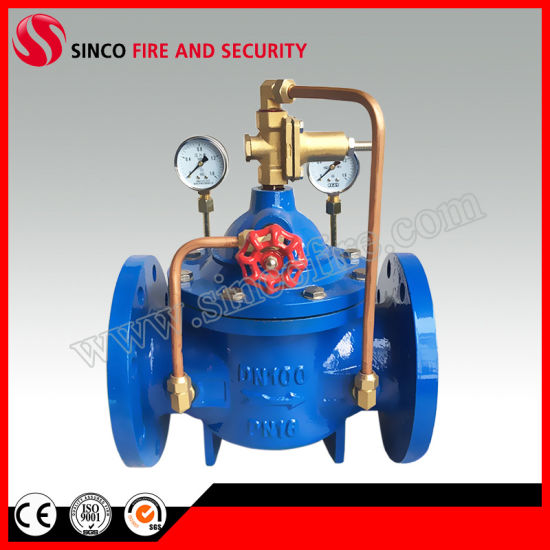

Xiamen, China
3000 Sets Per Month
L/C, T/T, D/P, Western Union, Paypal
200X
Cast Iron/Ductile Iron/Stainless Steel
Epoxy Resin Coated to 300 Microns Inside & Outside
Blank
Wooden Case
DN50-DN600
Fujian
8481804090
2"-24"
Low Pressure
Pn10/16/25
Flange
Single-Seat
Diaphragm

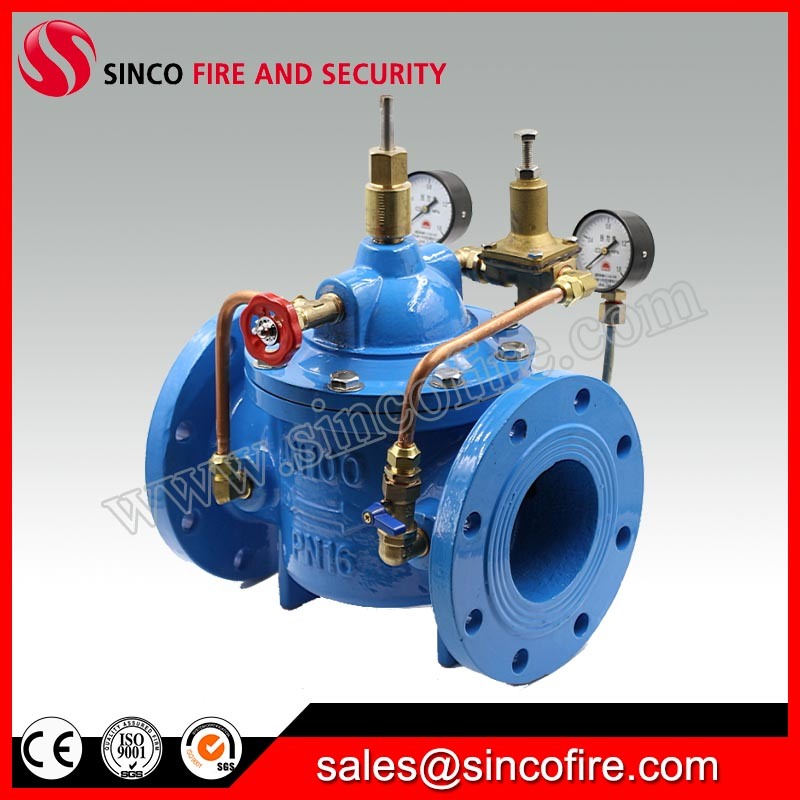

No.. | Part | Material |
1 | Body | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
2 | Seat | 410 S.S. / SS 304 / SS 316 |
3 | Stem | 410 S.S. / SS 304 / SS 316 |
4 | O-ring washer | Cast Iron |
5 | O-ring | NBR |
6 | O-ring | NBR |
7 | Disc | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
8 | Diaphragm | Rubber |
9 | Diaphragm Washer | Cast Iron |
10 | Screw | Bronze |
11 | Spring | Spring steel |
12 | Cover | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
13 | Ball Valve | Bronze |
14 | Ball valve | Bronze |
15 | Pressure show | |
16 | Pilot valve | Bronze |
17 | Hang ring | Steel |
18 | Pilot socket | Bronze |
19 | Needle valve | Bronze |
20 | Ball valve | Bronze |
21 | Pressure show | |
22 | Stud | Steel |
23 | Screw | Steel |
DN(mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
L | 203 | 235 | 285 | 360 | 400 | 455 | 585 | 650 | 800 | 860 | 915 | 980 | 1075 | 1230 | |
PN10 | D | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 390 | 440 | 500 | 565 | 615 | 670 | 780 |
D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | 460 | 515 | 565 | 620 | 725 | |
PN16 | D | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 405 | 460 | 520 | 580 | 640 | 705 | 840 |
D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 | 585 | 650 | 770 | |
PN25 | D | 160 | 180 | 195 | 230 | 270 | 300 | 360 | 425 | 485 | 550 | 610 | 660 | 730 | 840 |
D1 | 125 | 145 | 160 | 190 | 220 | 250 | 310 | 370 | 430 | 490 | 550 | 600 | 660 | 770 | |
H | 395 | 405 | 430 | 510 | 560 | 585 | 675 | 730 | 760 | 840 | 910 | 1030 | 1135 | 1270 |
