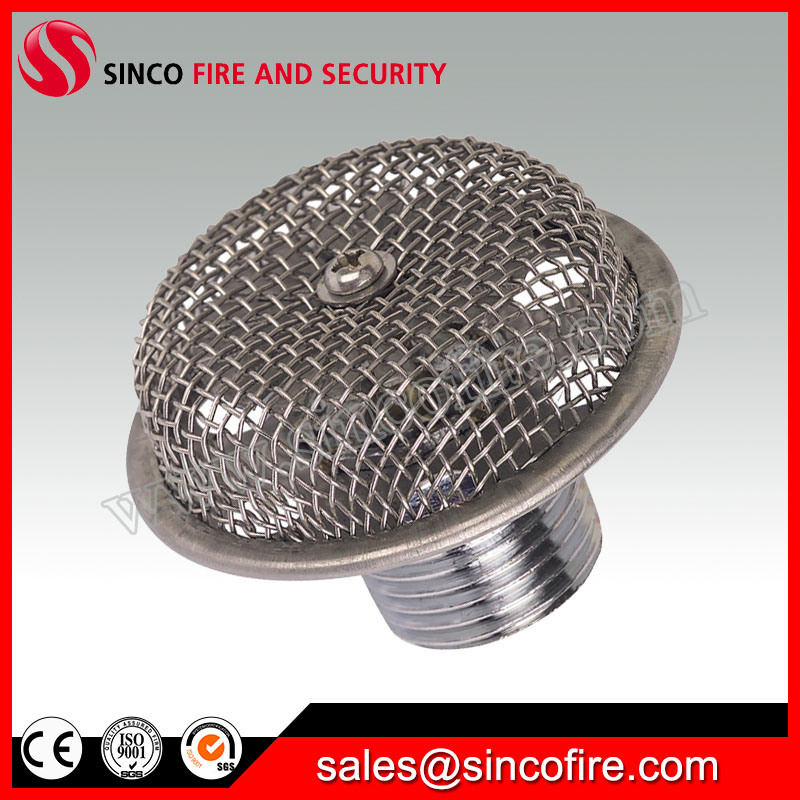

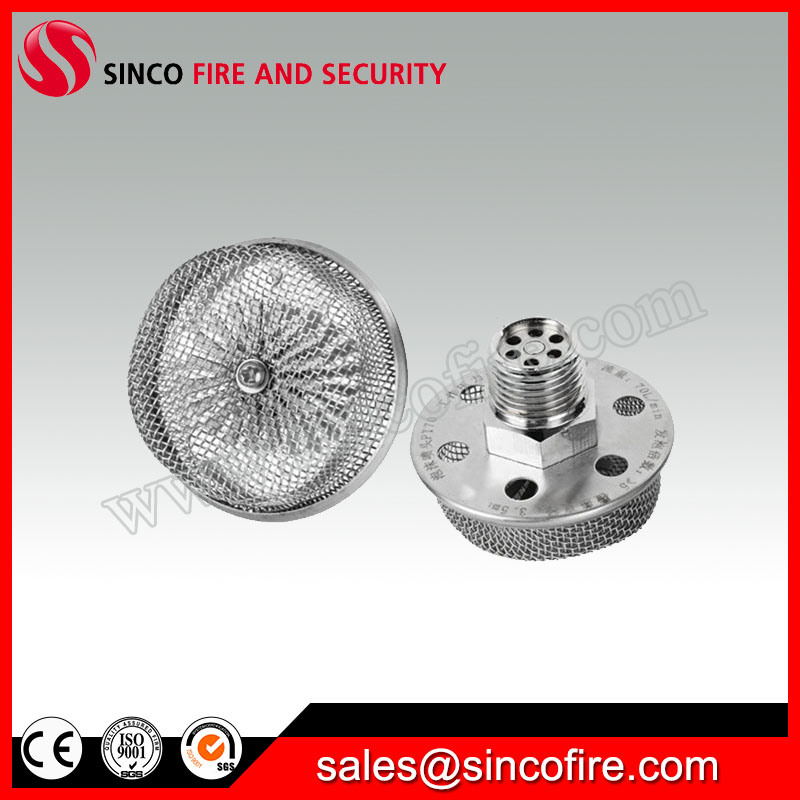

Water Foam Fire Sprinkler with Good Price

Quantity:



Inquire Add to Basket

Port:
Xiamen, China
Production Capacity:
150000pieces/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Model NO.:
PTW
Norminal Diameter(mm):
15mm/20mm/25mm
Material:
Brass/Stainless Steel
Working Pressure:
0.3-0.6MPa
Flow of Mixture Liquid:
0.9L/S, 1.2L/S, 1.5L/S, 1.75L/S
Foam Expansion:
More Than 5
Installation Height:
More Than 2.5m
Trademark:
SINCO or OEM
Transport Package:
Standard Export Package
Specification:
1/2" 3/4" 1"
Origin:
Quanzhou, Fujian
HS Code:
8424
Sprinkler Installation:
Ordinary
Sprinkler Head Type:
Open
Alarm Valve Type:
Wet Alarm Valve
Automatically Opened and Closed Repeatedly:
Can′t Automatically Opened and Closed
Closed Fire Sprinkler System:
Wet Fire Sprinkler System
Wet Alarm Valve Structure:
Seat Type

Product Description

Water foam Fire Sprinkler with good price

Introduction
The foam sprinkler is a special fire extinguishing parts mainly used in low-expansion foam spray system which can produce and jet air bubble. Foam proportionate system supply foam solution for these nozzles. When foam solution was conveyed to nozzles by pipelines, the nozzle inhales air at outlet to make foams and put out fire.
Working Principle
When pressurized foam solution flows through the cavity of the nozzle, its pressure will be reduced because of throttling. That will result in vacuum and inhale air. The foam solution then become foams after dispersed by nozzle.
Technical Parameters

Size	Working pressure	Flow of mixture liquid	Flow parameter	Foam expansion	Installation height	Connecting thread
Size	Mpa	L/S	L/S	Times	m	Inch
PTW0.9	0.3-0.6	0.9	27	≥6	≥2.5	1/2" 3/4" 1"
PTW1.2		1.2	36
PTW1.5		1.5	45
PTW1.75		1.75	53

Photoes
