Z45X Non-Rising Stem Resilient Seated Gate Valve

Quantity:
  • Xiamen, China
  • 20000 Sets Per Month
  • L/C, T/T, D/P, Western Union, Paypal
  • Z45X/RVHX
  • Inside Gate Valve
  • Regulation, Safety, Emptying, Drain, Flow Control
  • DIN/BS/ANSI/GB etc.
  • Industrial Usage, Water Industrial Usage, Household Usage
  • 80 Celsius Degree
  • Water, Sewage, Oil, Gas etc
  • Pn10/16/25
  • Blue/Red
  • Blank
  • Wooden Case
  • DN40-DN600
  • Fujian
  • 8481801090
  • Straight-through
  • Cast Iron/Ductile Iron/Stainless Steel
  • Flange
  • Low Pressure
  • Manual
  • Wedge Gate Valve
Z45X Non-Rising Stem Resilient Seated Gate Valve

Introduction
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids for sump pump.

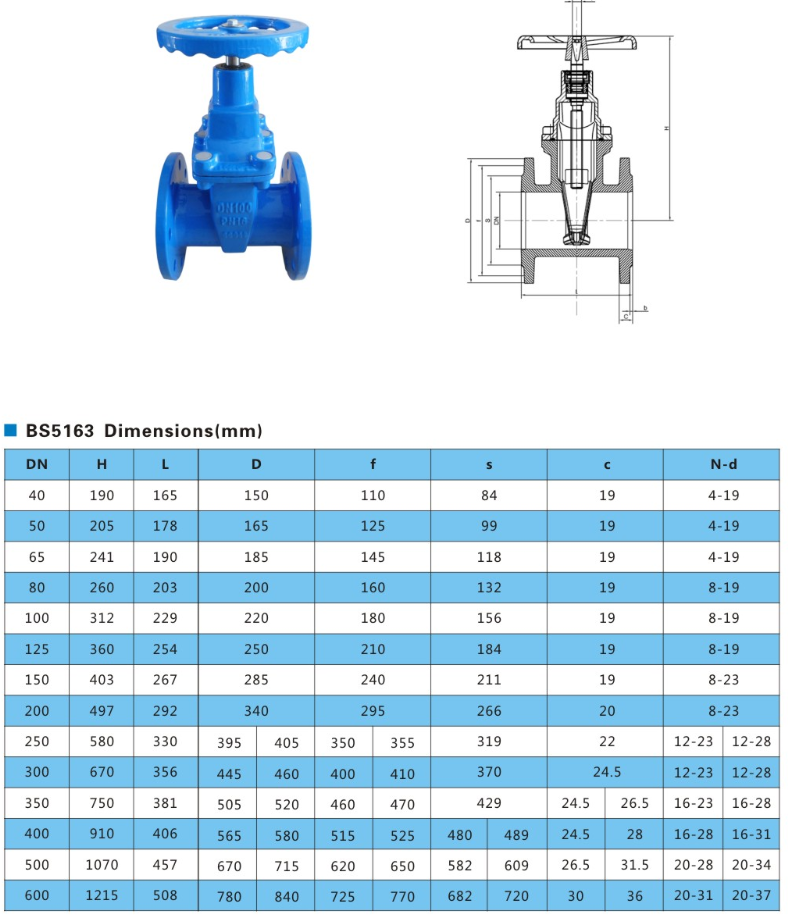

Specification
Z45X Non-Rising Stem Resilient Seated Gate Valve
Materials of major parts:
No. Part material
1 Body Ductile cast iron
2 Disc Ductile cast iron packed with NBR
3 Bolt Carbon Steel/Stainless Steel
4 Bonnet Gasket EPDM/NBR
5 Bonnet Ductile cast iron
6 Stem Stainless Steel
7 O-ring EPDM/NBR
8 Thrust bearing Brass
9 Gland Ductile cast iron
10 Dust proof gasket EPDM/NBR
11 Hand wheel Ductile cast iron
Z45X Non-Rising Stem Resilient Seated Gate Valve

Our Workshop
Z45X Non-Rising Stem Resilient Seated Gate Valve


Other Fire Fighting Equipment
Z45X Non-Rising Stem Resilient Seated Gate Valve
