| Quantity: | |
|---|---|
ZSJZ
SINCO
| Characteristics and Functions | |
| Model | ZSJA/H |
| Type | welded connect water level controller water flow indicator |
| Material | Brass, Ductile Iron |
| Norminal diameter | DN50~DN200 |
| Norminal working pressure | 1.2Mpa |
| Time delay | 2 to 90s |
| Sensitivity | 15 to 37.5 L/min |
| Contacts capacity | AC220V/3A ,DC24V/1A |
| Seal test pressure | 2.4Mpa |
| Pressure | High Pressure welded type automatic water valve flow control |
| Basic Parameters of Water Flow Indicator | ||||

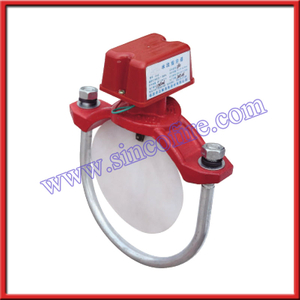

| Type | Saddle type | Flange type | Welded type | Thread type |
| Model | ZSJZ/A | ZSJZ/F | ZSJZ/H | ZSJZ/S |
| Norminal diameter | DN50, DN65, DN80, DN100, DN120, DN150, DN200 | |||
| Norminal working pressure | 1.2Mpa | |||
| Time delay | 2 to 90s | |||
| Sensitivity | 15 to 37.5 L/min | |||
| Contacts capacity | AC220V/3A ,DC24V/1A | |||
| Characteristics and Functions | |
| Model | ZSJA/H |
| Type | welded connect water level controller water flow indicator |
| Material | Brass, Ductile Iron |
| Norminal diameter | DN50~DN200 |
| Norminal working pressure | 1.2Mpa |
| Time delay | 2 to 90s |
| Sensitivity | 15 to 37.5 L/min |
| Contacts capacity | AC220V/3A ,DC24V/1A |
| Seal test pressure | 2.4Mpa |
| Pressure | High Pressure welded type automatic water valve flow control |
| Basic Parameters of Water Flow Indicator | ||||
| Type | Saddle type | Flange type | Welded type | Thread type |
| Model | ZSJZ/A | ZSJZ/F | ZSJZ/H | ZSJZ/S |
| Norminal diameter | DN50, DN65, DN80, DN100, DN120, DN150, DN200 | |||
| Norminal working pressure | 1.2Mpa | |||
| Time delay | 2 to 90s | |||
| Sensitivity | 15 to 37.5 L/min | |||
| Contacts capacity | AC220V/3A ,DC24V/1A | |||
